Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:5328561.

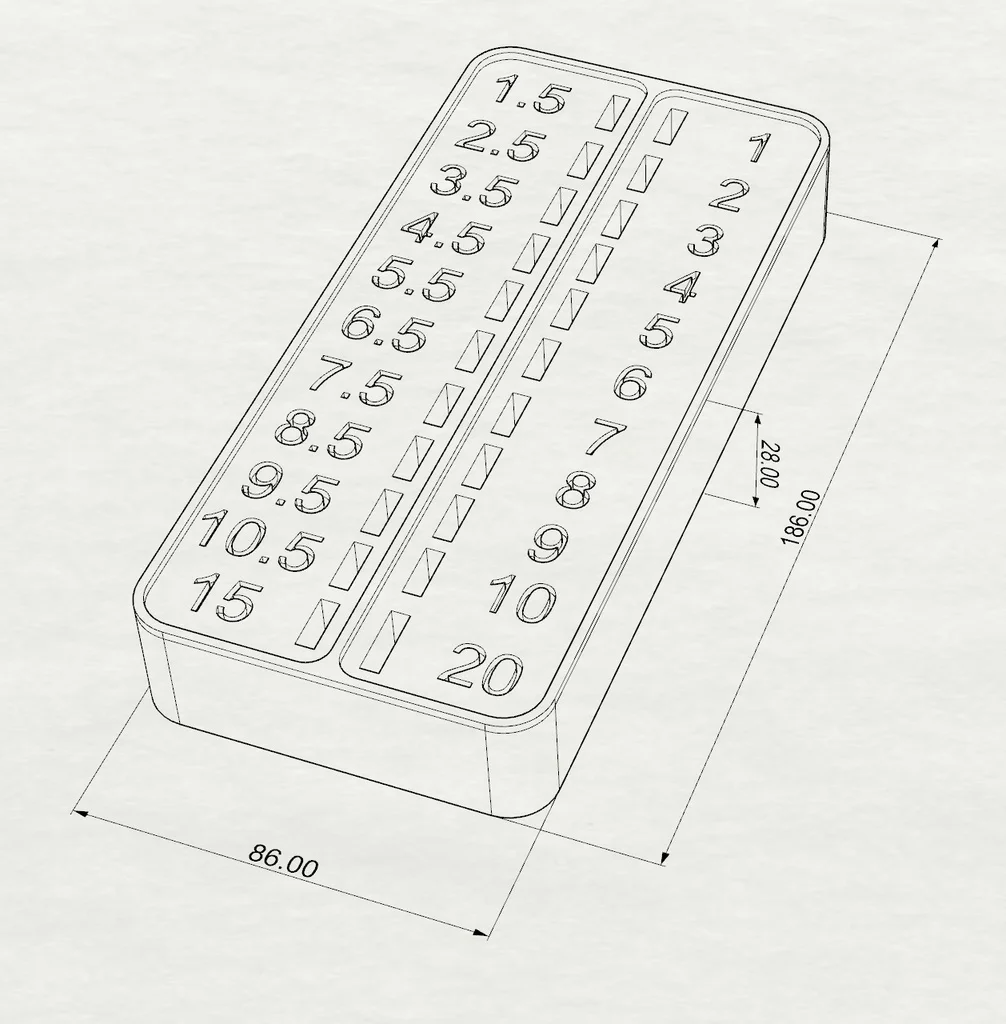

A simple design of an organizer box for fillet gauges with labeling debossed to fit better with CNC milling.

I increased the thickness of the gauges to 3mm to fit better with the box design.

Thanks to jhoward679 and beardedham for their work on the gauge design! Be sure to check them out: https://www.thingiverse.com/thing:1661962 https://www.thingiverse.com/thing:4808698
