Description

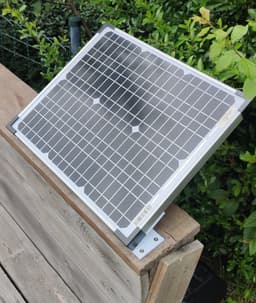

This is a custom mount for a Offgridtec 20W solar panel. I designed this mount because I wanted to mount the panel in a 30° angle in my front yard.

The design is optimized for the Offgridtec panel but can be easily remixed to fit on other panels too.

Using PETG or a similar material is highly recommended to achieve enough strength and UV resistance in the mounts.

Print the mounts on the side to preventing supports.

After printing, align the mounts to the side of the panel and drill 4 holes into the aluminium frame of the panel. Secure the mount with M5 screws to the panel.

Print Settings

Printer: Creality Ender 2 Pro
Rafts & Supports: No
Resolution: 0.28
Infill: 100%
Filament brand: 3DJake
Filament material: PETG
