The project files are organized into folders for easier printing and navigation. For that reason, stl file preview is turned off.
This is a fan art representation and a 3d printable stl files diy kit inspired by the LOLA59 DROID as seen in the Obi Wan Kenobi series. This is not an officially licenced product and has not relation to lucasarts, disney etc, it is a personal interpretation and a guide to help you build your own diy projects.
ABOUT THE PROJECT
1 - yes there is both functional and nonfunctional versions included in case you don't wish to mess with electronics
I have also included a little "pdf" book if you want to print it out to use for easier assembly :)

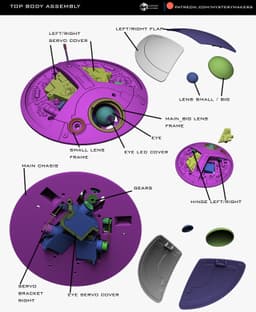

2 - the entire build is split up in 3 segments : top portion, lower portion and legs/stand
3- all servos are attached to the "top portion" by using either "servo cover" parts that also act as a mount and the "eye servo cover" part.
4 - all parts are connected with m3 screws or with glue
5- flap hinges use m2 screws, they are a bit smaller 6 - servo mounts also use m2 screws
7 - 5x2 mm magnets are used to switch between legs and stand
8 - version with "flap" on the lower portion is included if you want to add a on/off switch of your choice 9 - there is a space for total of 4 led's - their sizes are in the build manual
10 - the eye can move left right and has a space for led. - The eye is moved by using a 90 degree bevel gear and m3x10 mm screw - i recommend you use a bit of glue to hold it in place, the eye has to move feely left and right but not up and down
11 - the code will be worked on, for the time being i wanted to give you the files so you can start the prints. Since the code will be open source please if you beat me to it, i would kindly appreciate if you can share the code so we help the entire community with it
12 - the chassis is held up with m3 screws and nuts so you can access electronics at any time
13 - there is room inside for arduino nano, and some micro power bank and perhaps some small speaker - it is yet to be tested 14 - total of 3 servos - 2 for moving flaps individually and 1 for the eye
15 - copper wire or rods are used to help move flaps ( 2mm in thickness)
16 - you can use the same thickness rod for the antenna
