9x9 MU - MultiBoard Octagon Plate

This model is restricted by licensing terms.

Use Single Border Tiles if you just need an individual Tile with nice borders on all sides.

Optionally, you can build an entire board using only Single Border Tiles for simplicity (instead of combining Corner, Edge, and Core Tiles). However, if you do, the board will be missing the small thread holes between tiles.

Printing Guidelines:

Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.

The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.


This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts, for creating the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io

Tags:

Community Makes (1)

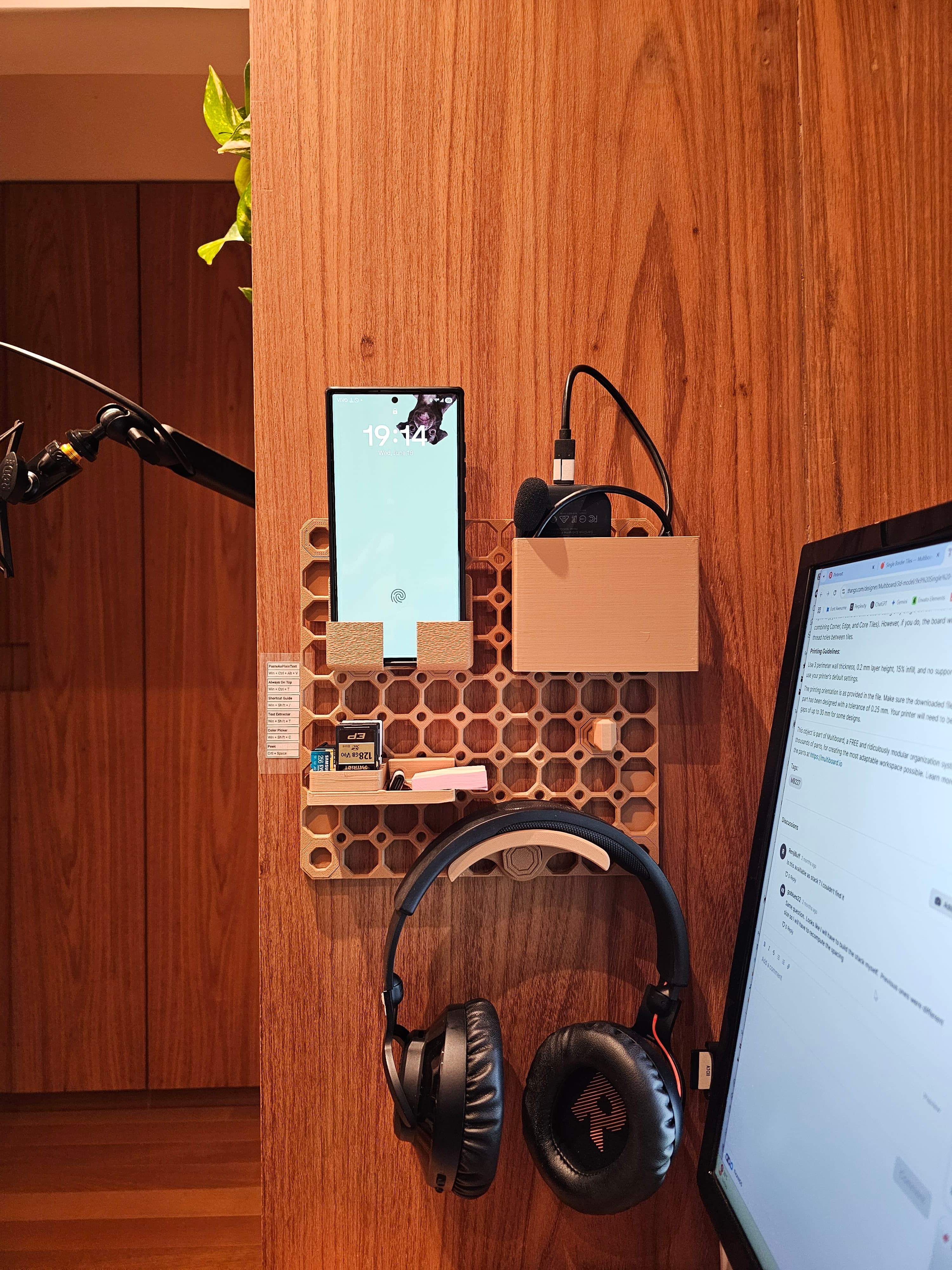

Make by user
Make by user


Community Makes (1)
Make by user
Make by user

Discussions
Roberta A
oibeta
 3d model
PrinterBambu Lab X1
MaterialPLA
Layer height0.2 mm
Infill density15 %
SupportsNone
R
RenjiBuff

Is this availlable as stack ? I couldn't find it

KB
goblues22

Same question. Looks like I will have to build the stack myself. Previous ones were different size so I will have to recompute the spacing

Luke S
shirnia

Also same question. I assume this means no?
