Tap Task Lamp - I'm getting a consistent band on this particular piece. I tried the 3mf as well as my own slice. Also tried on 3 different printers; A1, A1 Mini, P1S. Any idea what may be causing this issue? Love the design! - 3d model

Tap Task Lamp

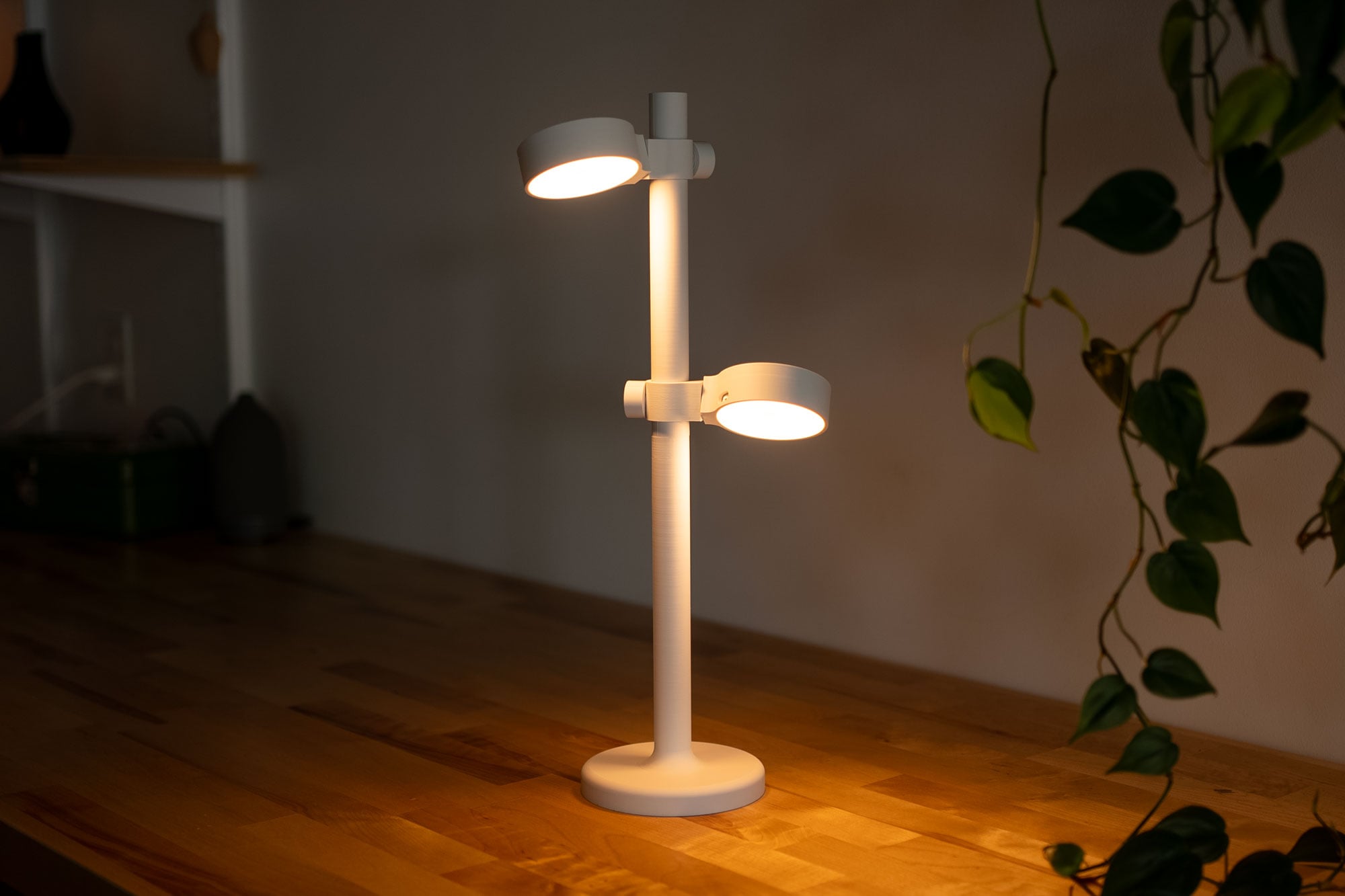

An adjustable task lamp that can slide up and down as well as swivel 360 degrees. This uses a rechargeable, magnetic tap light (link is in my Amazon Storefront). The light comes with a magnetic disc that sticks to the inside of the light housing.

I've included two bases, a short one and a tall one that prints in two parts and threads together.

A couple notes for successful printing:

  • The set screw should be printed with a 99% infill
  • The swivel light housing prints in place. The default seams will want to be placed on the inside corners of the swivel mechanism. I'd recommend painting your seams somewhere else to allow a clean gap on the swivel mechanism.

Supports Tree supports are needed for the USB-C charger opening. Supports are not necessary for the threaded hole on the set screw.

Scaling I wouldn't recommend scaling this one since it perfectly fits the tap light.

Orientation The light housing print upside down. The base, extension rod, and set screw print upright.

Print Settings .2mm layer height 15% grid infill (99% for the set screw) 2 walls

Filament & Hardware Filament: Bambu Lab Ivory White Matte PLA Hardware: Tap lights can be found in my Amazon Storefront at the link below. This is the exact Amazon listing name - DAZZY DOT Rechargeable Puck Lights 2 Pack, Magnetic Tap Light 1000mAh Battery Powered, Warm Yellow,Dimmable Touch Light Stick on for Closet, Locker, Cabinet, Bedside, Kitchen

Filament and non 3D printed items for this model can be found on my Amazon Storefront, linked here: https://bento.me/loftedgoods


192 Likes269 DownloadsAugust 6, 2024
