Proceeds from this model go toward the purchase of a handicapped-accessible vehicle. When the going gets tough, the tough get creative.

This was so much fun to design and build! Overengineered by design to be remixed, modified and customized. Infinitely customizable, robust, practical and more than anything – fun to build. This is a medium difficulty build. You can build this with basic tools.

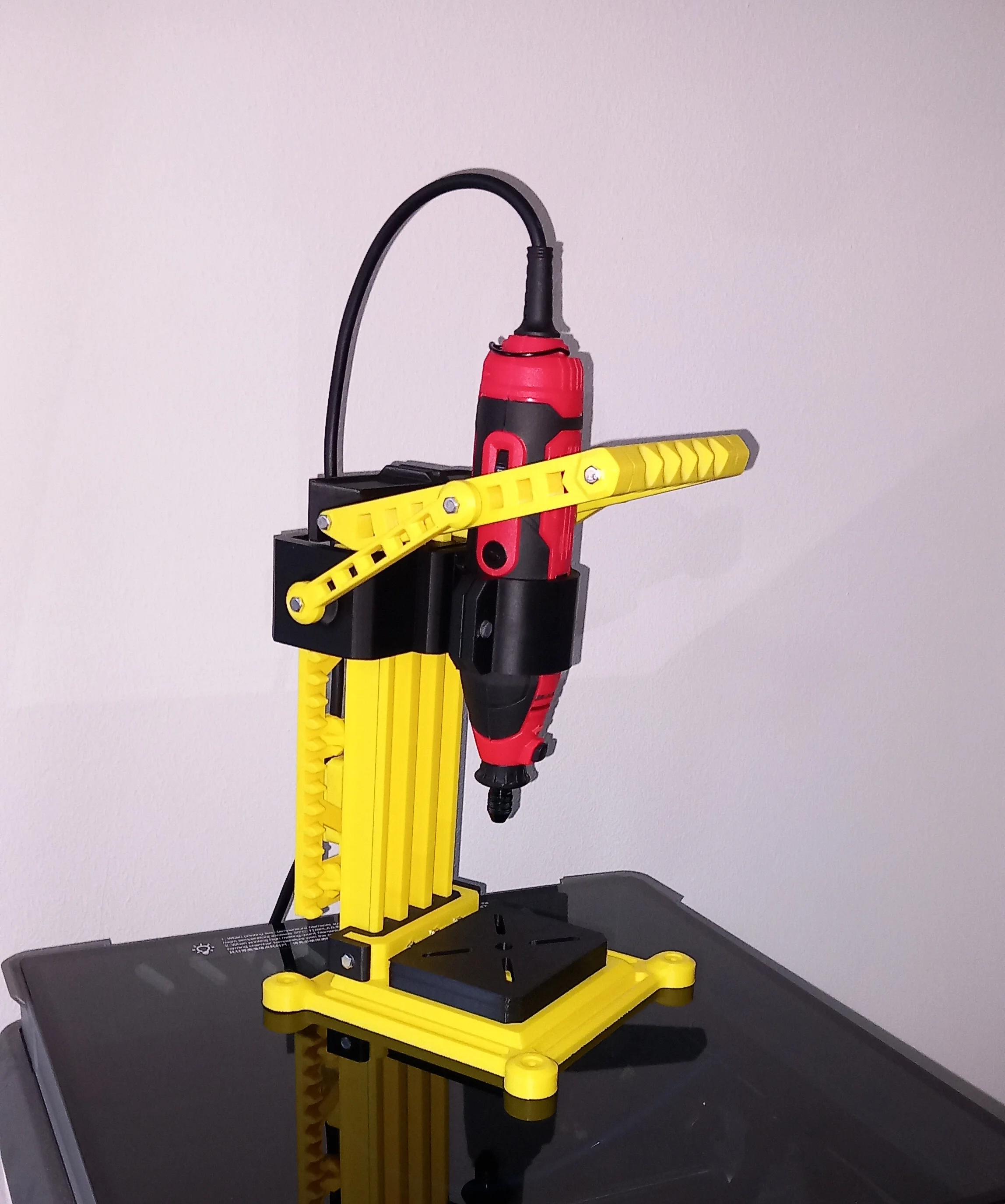

Reference the photos for dimension before printing, as there are many models and designs of rotary tools.

A range of modular accessories are available and will be uploaded within a week of this upload:

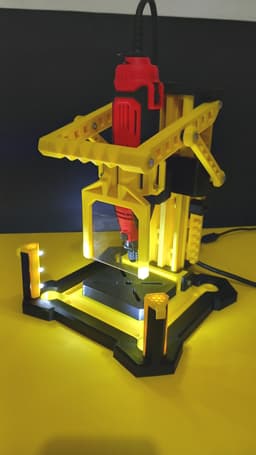

Safety shield kit LED lighting kit Vacuum port kit Material clamp kit Sanding rig with adjustable gate Handy grab & carry handle More to come

Read carefully before buying this download:

The gear track on the back is longer than necessary, so you can remix it to make it taller if you want by extending the Upright Frame. ** Blank Frame Slider STLs are included in case you need to remix to fit a different model or brand of rotary tool. The base has holes for table mounting for stability. The Track Brakes allow for positive stop positions, so you can work with both hands free. The drill press will be stiff the first few times you use it. A DXF template is included for marking before mounting to a tabletop etc.

Modeled around 4mm Hex bolts & nuts. Vinyl lock nuts work best, especially for reducing vibrations. You can use regular 4mm nuts with or without lock washers, but with enough use they need to be re-tightened.

Rotary Tool Drill Press Parts List:

2 x 6000 2RS bearings 4 x Hex bolts 4mm x 15mm 0.7 thread pitch 12 x Hex bolts 4mm x 30mm 0.7 thread pitch 11 x Hex bolts 4mm x 40mm 0.7 thread pitch 19 x M4 vinyl lock nuts 0.7 thread pitch 10 x 1cm x 1mm washers (OD 1cm, ID minimum 5mm)

Bearings: https://www.google.com/search?q=6000+2RS+bearing&rlz=1C1RXQR_frIT1190IT1190&oq=6000+2RS+bearing&gs_lcrp=EgZjaHJvbWUyBggAEEUYOdIBCDkyMzVqMGo3qAIAsAIA&sourceid=chrome&ie=UTF-8

• Not all manufacturing standards are the same, therefore you may find slight differences in the tolerances on the bearings – double check your measurements before printing. Remix if needed.

** Some printers struggle with thin walls. There are two models of Frame Slider included – the STANDARD and a Reinforced Frame Slider. **If your printer has trouble printing thin walls correctly, the Reinforced Frame Slider works better as it has no thin walls. **

Print Order: 1 x Base Plate STANDARD or Base Plate Vacuum Port 1 x Lock Bracket Lower 2 x Gear Roller 1 x Frame Slider STANDARD or Reinforced 1 x Gear Track 2 x Track Brakes 1 x Upright Frame 2 x Cord Catch 1 x Lock Bracket Upper or Lock Bracket Upper with Grab Handle 1 x Pair Brace Arms 2 x Slider Driver Bars Collets – 2 x if you use the Reinforced Frame Slider, 4 X for the Standard 1 x Handle 1 x Drill Plate – two versions available

Best printed with PLA+ at 10% moisture with 50% triangular infill.

Dry your filament, eat your vegetables, don't do drugs.
