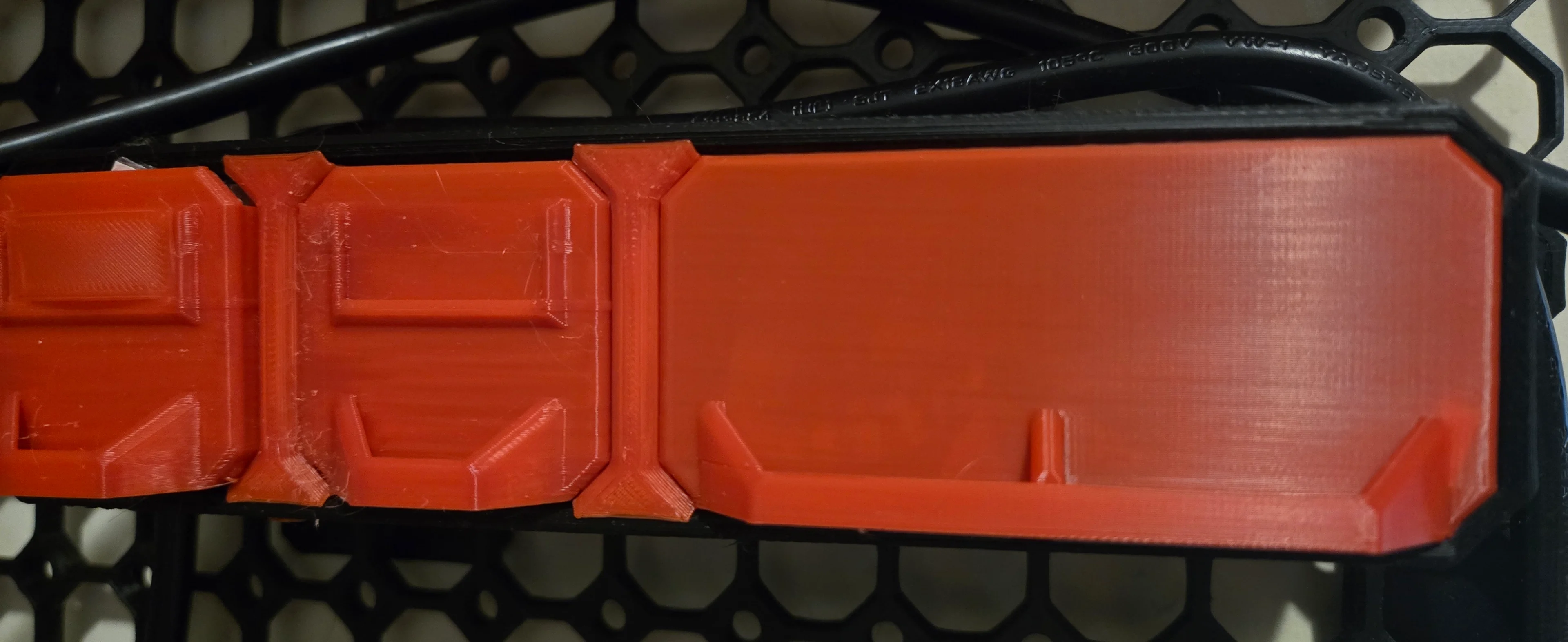

Multiboard Vase Drawer Generator

This model is restricted by licensing terms.

Please note that corner Drawer stoppers do not work on this without post-print modification (cut off the top of the side walls that angle in). For drawers over 2 units in width, the Middle version of this drawer stopper seems like it would work well (https://thangs.com/designer/LeoB26/3d-model/MultiBin%3A%20Improved%20Drawer%20Stopper%20Bars-1220909)

I like the idea of Vase prints and this seemed like a good chance to do that. This is a much more basic version of the Multibin Drawer (https://than.gs/m/1128787) that takes significantly less time to print. I'm sort of hacking Vase mode to get the handles to work so please keep an eye on the handles when you slice this. Also inspired by (https://www.printables.com/model/480888-storage-box-vase-mode).

Print Settings: Vase Mode/Spiralize 0.8mm Line Width (I'm still using a 0.4mm Nozzle) 0.2mm Layer Height 0.2mm First Layer

I've only uploaded the 1x1x1 because it would be a good test and I don't want to download and upload all 4*4*4=64 versions. Below is a link that should allow you to configure between 1-4 cell measurements in each direction before exporting it as an STL. (Please ignore any errors that don't prevent you from configuring and exporting the model, I don't want to put in the effort to make it work without those benign errors) https://cad.onshape.com/documents/8f3f6f03d4aa38c6d7310651/w/f39dda93fec796d38d0cba3a/e/569715f4ea94431016c12aa4?configuration=List_5hEPPLROiKwK0c%3DCustom%3BList_GVrTAL70ryHMb0%3DCustom%3BList_WmhXFXlayWbG5Q%3DHeight&renderMode=0&uiState=678bd90e867ec56ac75d8c8f
