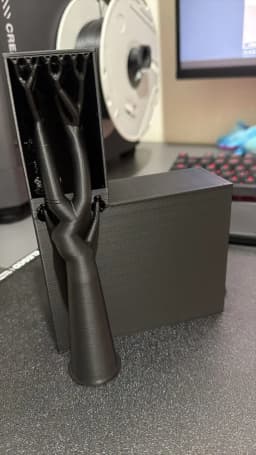

The Elegoo Centauri Carbon Purge Container is designed to neatly collect purge waste from your Elegoo Centauri Carbon, helping keep your workspace clean and organised.

The model consists of two parts:

• Frame – A rigid outer housing that fits behind the printer to catch purge lines.
• Drawer – A removable drawer that slides smoothly into the frame, allowing you to easily remove and dispose of collected purge material.

Instead of purge lines scattering around your printer or workspace, they fall directly into the container where they can be emptied in seconds.

Features

• Two-part modular design
• Removable purge drawer for quick cleaning
• Compact footprint that fits neatly behind the printer
• Helps keep your printing area tidy
• Simple and reliable print

Printing

Both parts were printed with supports in vertical orientation.

Recommended settings:

• Layer Height: 0.16mm
• First Layer Height: 0.2mm
• Wall Loops: 2
• Sparse Infill Density: 15%
• Brim: None

PLA works well, though PETG is recommended if the container will be exposed to warmer environments near the printer.

Mounting

The purge container is designed to mount directly to the rear of the Elegoo Centauri Carbon, where purge material exits the printer. The frame aligns with the existing screw points on the back of the machine, allowing it to be securely fixed in place using the printer’s mounting holes.

Assembly

Simply slide the drawer into the frame until it seats fully. No glue, screws, or additional hardware are required.
