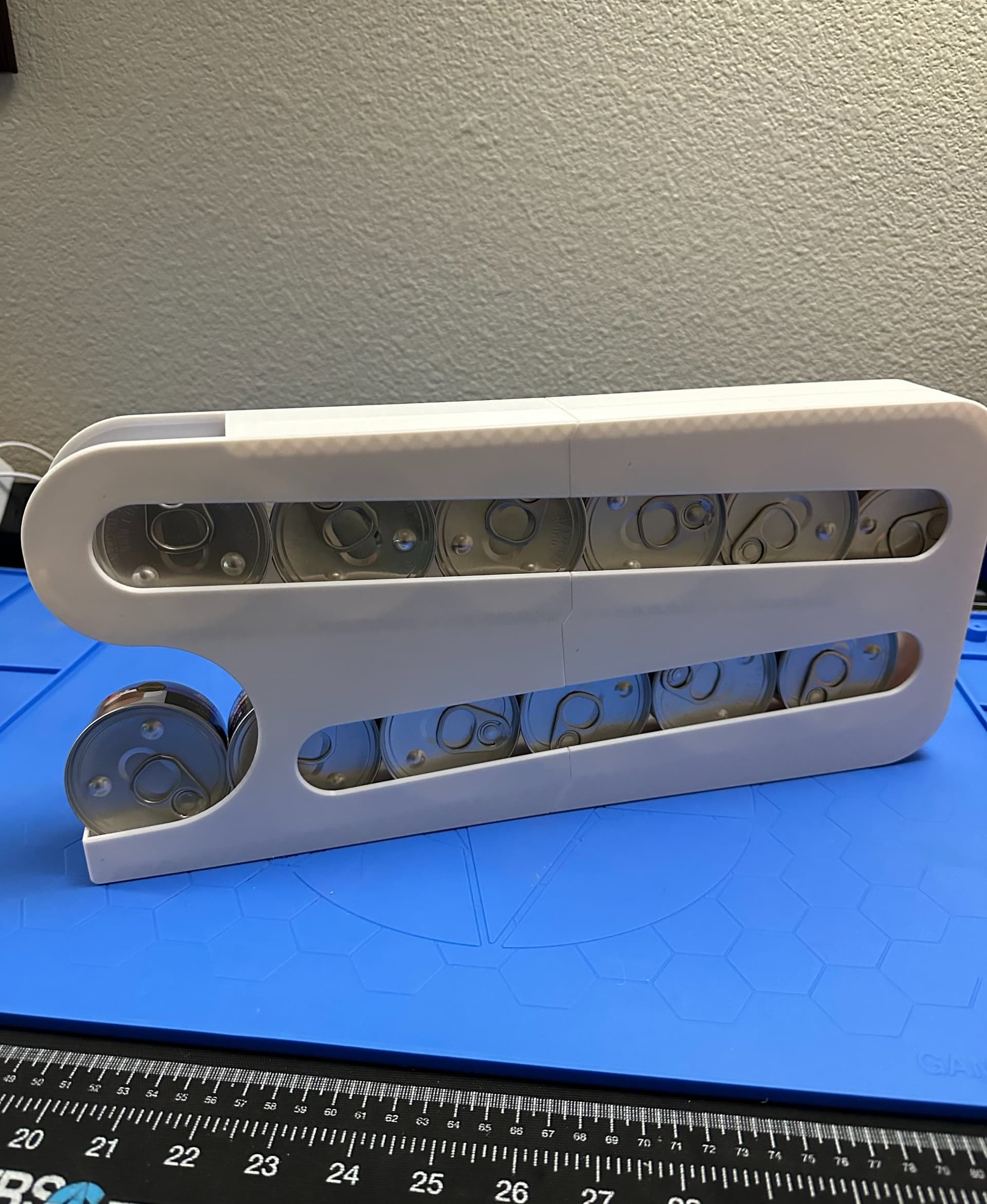

Cat Food Can Dispenser - 12 Can Capacity

Your cat(s) deserve the freshest canned meat product and nobody wants old cat food lurking in the back of their cabinets. This dispenser serves up your cans in first-in, first-out order. The dispenser prints without supports and no hardware or glue is required for assembly.

Design

• Holds 12 3oz cans per dispenser (note: tested with Fancy Feast cans which have about a 66mm diameter and a 37mm height - you may want to check your cans before printing if you prefer a different brand)
• Cans roll smoothly from top to bottom for easy loading
• Slim profile makes it easy to fit multiple dispensers side-by-side

Dimensions (LxWxH) 413x46x185mm

Print settings Nothing special. I test printed with PLA and slicer defaults. STLs are oriented as recommended for printing.

Assembly Assemble by sliding the corresponding dovetails together. When assembled correctly, your pieces should all sit flush on both the interior and exterior surfaces. The dovetails should be a fairly tight fit.

1. Print all four components (left front, left back, right front, right back)
2. Attach left front to left back and right front to right back by sliding the dovetails together. Ensure all 3 dovetails are engaged on each side. You may find it easiest to partially engage the larger dovetail at the bottom before aligning the middle and top dovetails.
3. Attach the left half to the right half by sliding each set of dovetails in from the bottom. You may again find it easiest to start from the bottom. Just make sure top, middle, and bottom dovetails are secure front to back.

Notes

• If you plan to remix this, be aware that most cans aren't simple cylinders. In real life, the cans sit at a slight angle due to the lip around the top. This increases their total width by enough to make a difference. The design accommodates this to avoid an otherwise dispenser-jamming amount of friction between the cans and the side wall.

Inspiration/credits

• Aeris - Cat Food Can Dispenser (modular) by Erdrick
• Cat icon by Kim Sun Young on The Noun Project
