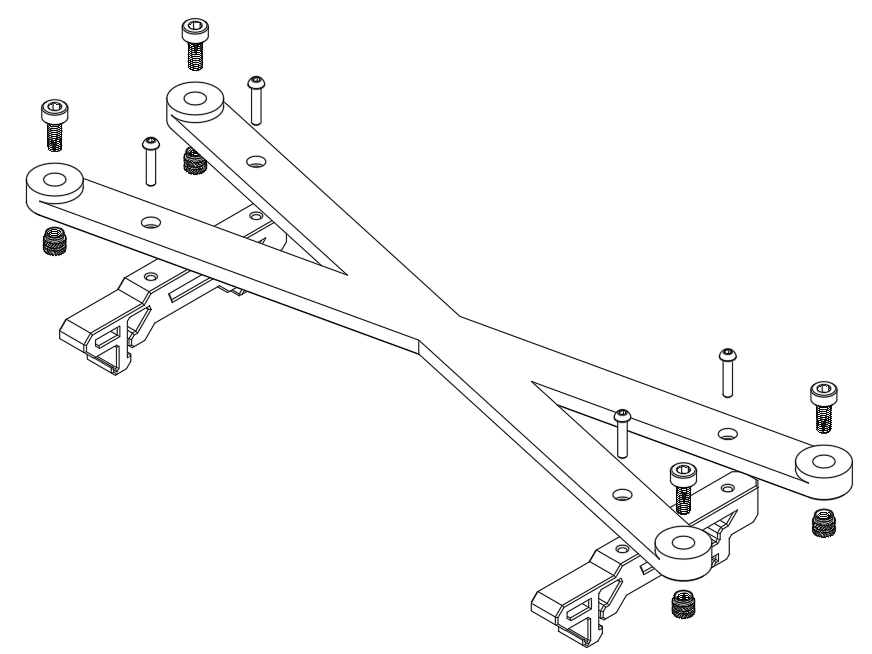

This is a 3D printed mount to allow a Meanwell UHP-200 power supply to be attached to a DIN rail.

Requires 2x pcb_din_clip_v2 from the Voron Trident.

BOM

2x pcb_din_clip_v2 (printed) 4x M3 Threaded Heat Set (M3x5x4) 4x M2 x 10 Self-tapping Screws for plastic 4x M3x8 screws (socket head or others 1x Meanwell UHP-200 Power supply
