Vizio Soundbar Wall Mount Bracket

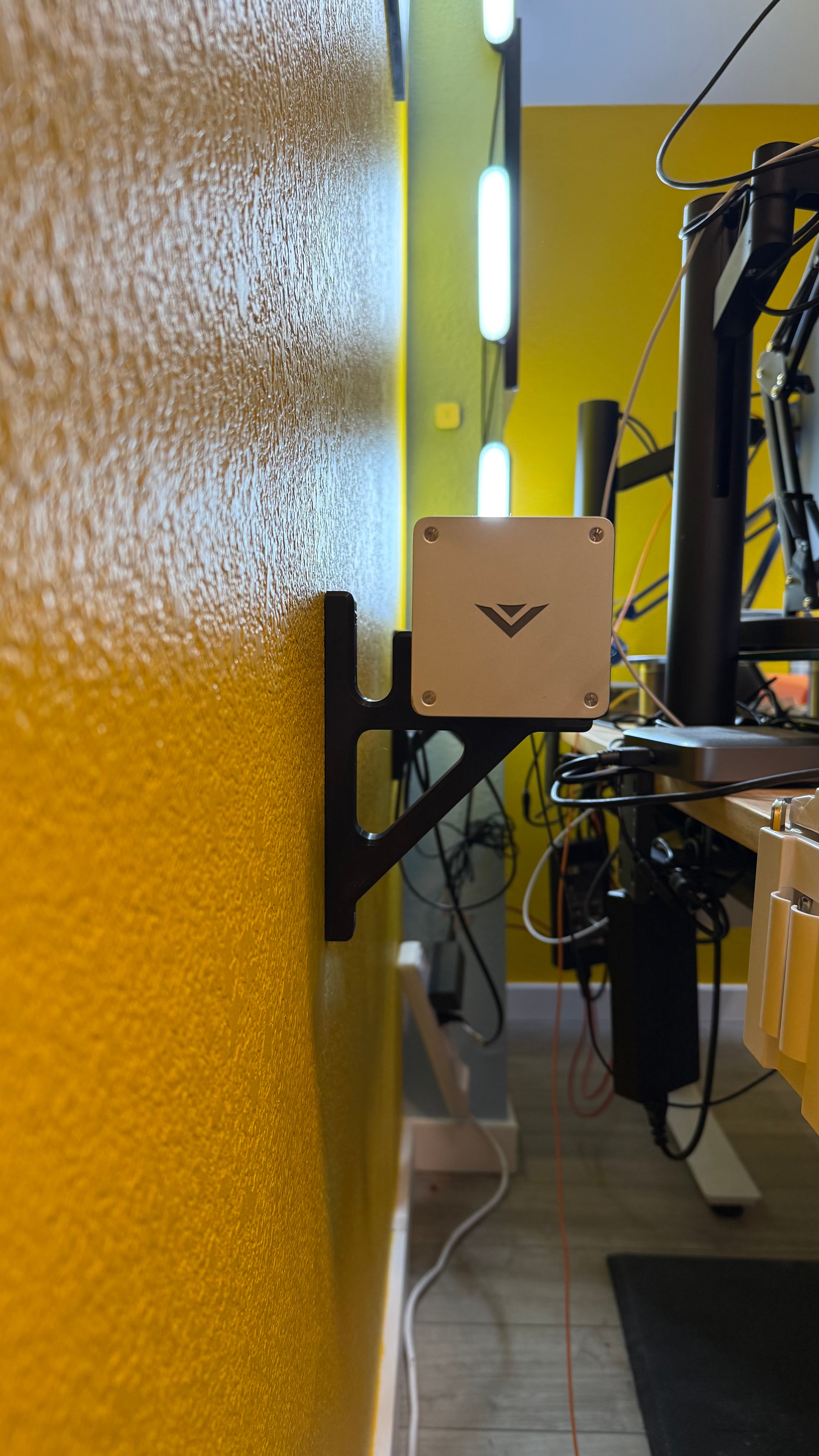

This is a simple wall-mount bracket for a Vizio 3.1/5.1 Soundbar, offset from the wall to allow easier access to the rear ports, and to allow for some cable management.

This is compatible with the older model Vizio SB4051 and likely with others from that same era which are square and measure 7.5cm by 7.5cm (3 inch by 3 inch).

Making Changes

If you want to make changes, import the included step file in your favorite CAD program. The soundbar does slide in and get gripped by the bracket, which helps keep it in place, and stop any side to side sliding that may happen due to sound without needing to add rubber pads underneath the soundbar itself.

Printing

I have printed this in PETG, it likely could be printed in PLA without issues too. It doesn't need to be overly strong as the soundbar is fairly lightweight, and you will be mounting it with two of the brackets.

• Strength: 3 walls
• Infill: 15%
• Supports: not needed
