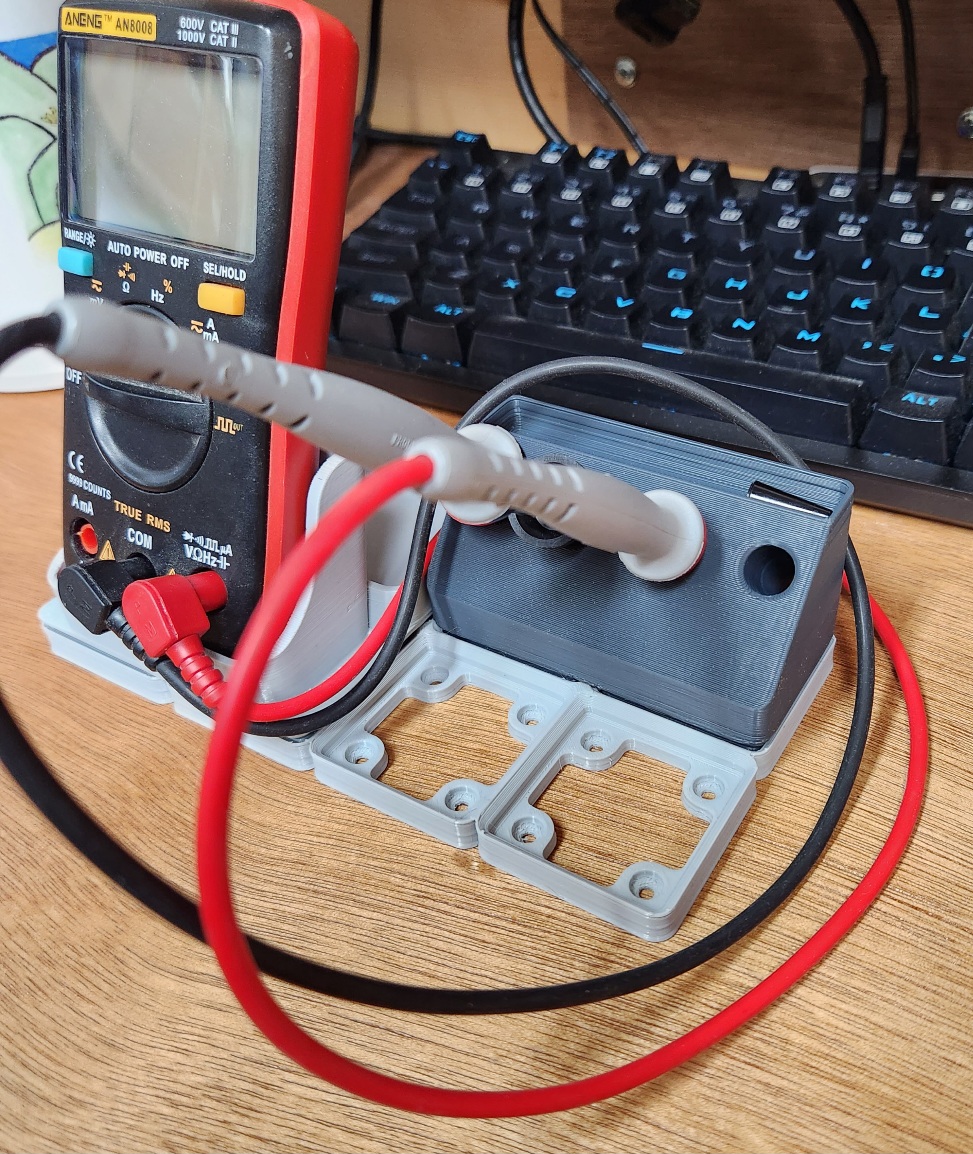

Gridfinity DMM Probe Holster

I made this to complement the Gridfinity Aneng DMM holder

The four holes are there to hold either bare-ended probes or hooks. The probes do poke out the back so you won't be able to put another gridfinity widget behind it.

This is designed to fit my Probemaster 8000 probe set. I am fully aware of the irony of a set of probes costing more than the DMM but here we are.

The bottom has cavities to glue in US (or Canadian) quarters to add some weight, lest the probes tip it over. If you use magnets with your gridfinity boxes, you probably don't need it.

I've uploaded the FreeCAD source file if you would like to adjust anything. It is a combination of my part and a mesh model for the base.
