Corner Shelf

Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:5229226.

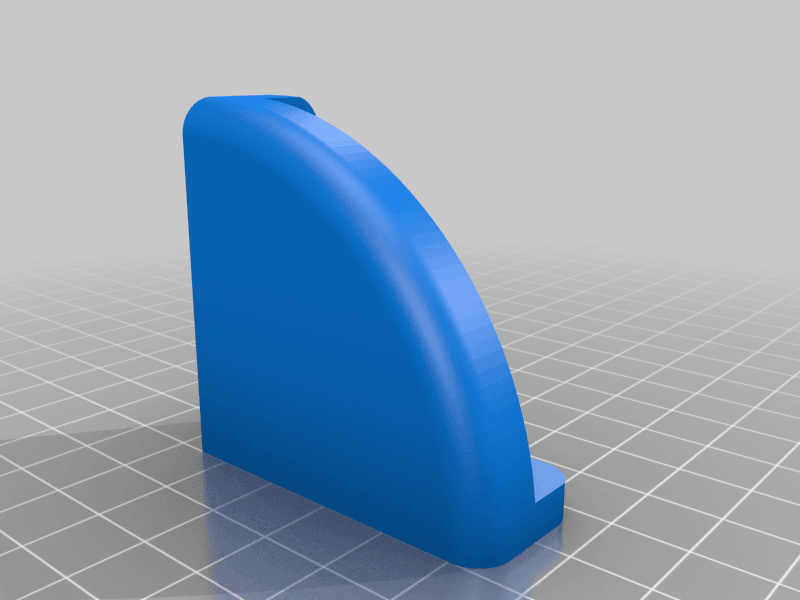

A fully customizable, 3D printable corner shelf, for interior or exterior angle corners.

This design allows you to choose the radius, angle, thickness and amount of bevel.

You can also customize the size and position of the screw holes, as well as the orientation for printing.

This design is completely free and shared under a permissive license. Your support is hugely appreciated.

Did you know?

Some of our designs cannot be found on Thingiverse. If you are looking for more, check out our premium projects:

https://codeandmake.com/premium

OpenSCAD Customizer Options

We recommend you use OpenSCAD to customize this design.

This design has the following Customizer options:

Shelf

• Shelf_Radius - Radius of the shelf
• Shelf_Angle - Angle covered by the shelf
• Shelf_Thickness - Thickness of the shelf
• Bevel_Percentage - Amount of bevel as a percentage
• Bracket_Thickness - Thickness of the bracket
• Arms - Number of arm supports
• Arm_Length_Percentage - Length of arm supports as a percentage

Screws

• Screw_Holes_Per_Bracket - Number of screw holes per bracket
• Screw_Hole_Shift_Percent - Amount to shift screw holes towards the outside as a percentage
• Screw_Hole_Padding - Amount to pad each screw hole
• Screw_Hole_Diameter - Diameter of the screw hole
• Screw_Head_Diameter - Diameter of the screw head
• Screw_Head_Countersink_Angle - Screw countersink angle (82 and 90 are common)

Print Orientation

• Print_Orientation - Orientate for optimum printing

Design Considerations

In many cases, it should be possible to print designs without supports.

Add arms to improve support, but ensure they do not prevent you from accessing the screw holes. You may need to adjust the number of Arms, the Arm_Length_Percentage, the Screw_Holes_Per_Bracket and/or Screw_Hole_Shift_Percent.

Material

We recommend a durable filament, such as ABS, for this design.

Versions

• 1.1 (23 Feb 2022) - Small correction to header comment
• 1.0 (2 Feb 2022) - Initial version

Printing

Recommended slicer settings:

• Resolution: 0.1mm - 0.2mm
• Infill: ~20% - 80% depending on desired strength.
• Supports: Should not be required for most designs.
• Rafts: Not required, unless you experience adhesion issues.

License

The "Corner Shelf" models (.stl) are licensed under the CC BY license by Code and Make.

The "Corner Shelf" code (.scad) is licensed under The MIT License by Code and Make.

Note: 'BSD' license has been selected as it is the closest available option in the list.
