HexBin System

454 downloads · 2 years ago · Our goal was to create a modular bin system that would allow us to display small 3D Prints at shows

This model is restricted by licensing terms.

View license.

Description

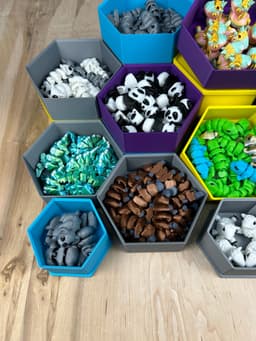

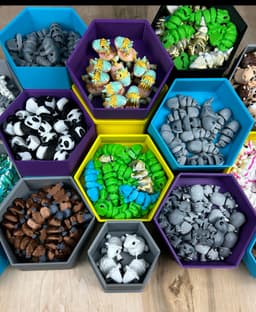

Our goal was to create a modular bin system that would allow us to display small 3D Prints at shows and also be visually appealing. The HexBin system currently has a small and large version. For each size there is a bottom base, lid and angled riser. You will need to print two of the risers for each box that you want to raise up at an angle. The HexBin will stack without a lid, allowing you to prepare for a show quickly. If you prefer, you can continuously stack bins with the lids, as they have a ridge to hold the next bin on top.

Please note that the top does have a tight tolerance to allow the lid to grab. You may need to adjust for your printer.

We printed most of ours with a 5% gyroid infill .20 Layer Height.

Tags:

Community Makes (1)

Community Makes (1)

Discussions

CGorecki Designs2 years ago

Layer height0.2 mm

Infill density15 %

MadSciSlack8 months ago

BOB... I did not know you had a modular storage system. I almost feel bad for spending 2 months making insane Multiboard creations. It looks simple and elegant. I have some follow-up questions, but I'll catch you streaming and chat in real-time. My hat is off to you once more. I hope you keep doing functional prints like this.

Built Over Bot8 months ago

I do not specialize in what people call functional stuff as we mostly do shows and functional prints do not sell well for us I do have some coming out soon once I get enough of the collection done.
