Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:6019055.

water valve tool for hard to reach places for toilets, sinks, etc. Using 3/4" emt tubing in length you'll need.

Deep reach water valve tool

Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:5823490.

This is a super simple fast print, It's a simple open air stand for bluetooth module and amp board. The idea is to use separate speakers and to be used as a mini bookshelf system.

Bluetooth module like: https://www.amazon.com/Bluetooth-Decoder-Decoding-Support-Lossless/dp/B07S51R6V1?crid=2VF8EUX6MGGWI&keywords=bluetooth+module&qid=1675115411&sprefix=bluetooth+module,aps,160&sr=8-49&linkCode=sl1&tag=bbtech0db-20&linkId=90e8eab2bab5908473ed1e9e1adb0684&language=en_US&ref_=as_li_ss_tl

amp board kinda like this: ???

I see Thingiverse still likes to butcher Amazon links so .... https://www.printables.com/model/384811-bluetooth-radio





Bluetooth Radio

Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:5634977.

https://github.com/damanbaird/HEXAHEDRON

My way of making a better 3D printer out of the worthless Tronxy X5SA that i had. Hypercube evolution was out of the question since i didnt want to buy all new 3030 extrusion pieces. This build does loose a small amount on the XYZ axis but i think the improvements in the prints was worth it with my glass bed it prints 312x300x340, with some bed support modding it could be as much as 360x310x340 So this... is what i have so far it's running and printing great, but does need some other refinements. Running Klipper firmware. Has magnetic kinetic bed mounts to reduce bed warping while heating. pulleys run on smooth rods not screws! I have included My Amazon affiliate links for the parts i bought.

A few extra parts needed:

designed for the Orbiter 1.5 extruder, since it is what i had at the time.

E3D V6 hotend or clone

2 x 410 10mm smooth rods

2 x 480 8mm smooth rods:

2 x +/- 480mm 2020 extrusion

1 x 500mm 2020 extrusion

6 x 3.5mm x 30mm rods

3 x 10x20 magnets

6 x 20 tooth pulley w/ bearings: https://www.amazon.com/dp/B07JNQQKTC?th=1&linkCode=sl1&tag=bbtech0db-20&linkId=dee3bdfacb5fd327f5e1c2122d723ef6&language=en_US&ref_=as_li_ss_tl

2 x 16tooth smooth pulley w/bearings

2 x LM10UU extra long bearings: https://www.amazon.com/dp/B07JNQQKTC?th=1&linkCode=sl1&tag=bbtech0db-20&linkId=dee3bdfacb5fd327f5e1c2122d723ef6&language=en_US&ref_=as_li_ss_tl

2 x LM8UU extra long bearings: https://www.amazon.com/dp/B07JNQQKTC?th=1&linkCode=sl1&tag=bbtech0db-20&linkId=dee3bdfacb5fd327f5e1c2122d723ef6&language=en_US&ref_=as_li_ss_tl

2 x Hall Effect sensors: https://www.amazon.com/Onyehn-Effect-Magnetic-Sensor-Arduino/dp/B07JMQFY6G?crid=3RHF6S40H1FG2&keywords=ARCEL+Hall+Effect+KY-003&qid=1669171085&sprefix=arceli+5p+hall+effect+ky-003,aps,117&sr=8-2&linkCode=sl1&tag=bbtech0db-20&linkId=6c36f1aa76bf82cc781e35113a6c9c26&language=en_US&ref_=as_li_ss_tl

3 x 10mm magnetic joint balls with M4 threads: https://www.amazon.com/dp/B07HQ72H1R?psc=1&linkCode=sl1&tag=bbtech0db-20&linkId=0b63e18b734adf29b20f550afa2482bf&language=en_US&ref_=as_li_ss_tl

10 feet +/- of 3/4" wire loom

1 x ADXL345 accelerometer

BL Touch or generic

30x10mm round 24volt fan: https://www.amazon.com/gp/product/B08C6Y246L?ie=UTF8&psc=1&linkCode=sl1&tag=bbtech0db-20&linkId=73c2c08c4549ada0703cfaadf410e770&language=en_US&ref_=as_li_ss_tl

T-nuts: https://www.amazon.com/dp/B07HQ72H1R?psc=1&linkCode=sl1&tag=bbtech0db-20&linkId=0b63e18b734adf29b20f550afa2482bf&language=en_US&ref_=as_li_ss_tl


M4x10mm: https://www.amazon.com/dp/B07HQ72H1R?psc=1&linkCode=sl1&tag=bbtech0db-20&linkId=0b63e18b734adf29b20f550afa2482bf&language=en_US&ref_=as_li_ss_tl

5 x 40mm dowel pin: https://www.amazon.com/dp/B07Y4WWBCQ?psc=1&linkCode=sl1&tag=bbtech0db-20&linkId=442eba30a21f02984507510eeb9cc910&language=en_US&ref_=as_li_ss_tl might have to cut or order next size down.

...think i got all that, most other supplies came from the X5SA itself.

If you dont have a Tronxy X5SA and want to start a new you'll need a few extras like …

M3 screws

M4 screws and T-nuts

4 x 2040 extrusions @ 530mm for Z axis

4 x 2020 extrusion @ 560mm for X axis

4 x 2020 extrusion @ 530mm for Y axis

3 x 8mm linear guide rod @ 535mm +/- 5mm

4 x nema 17 stepper motors








HEXAHEDRON

Hexahedron.stl

Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:5650103.

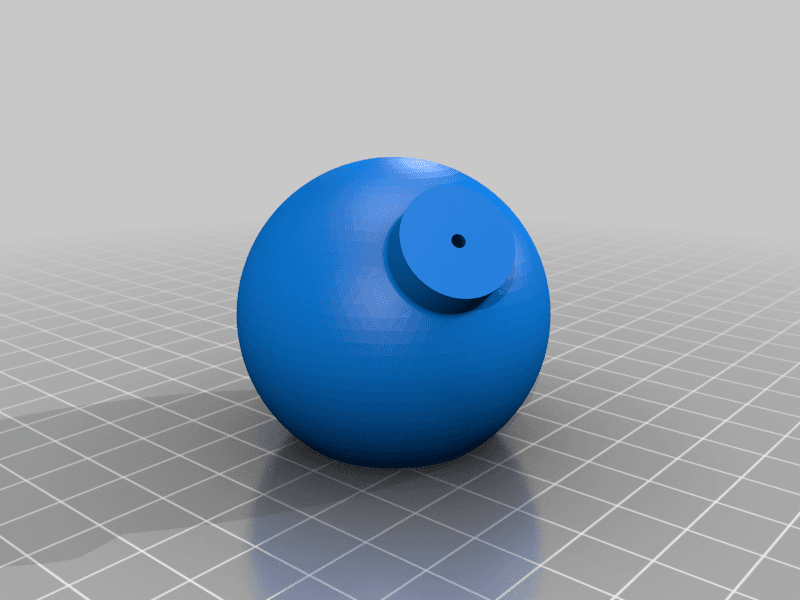

Cartoon Bomb uses a piece of 1.75mm filament for the fuse.


Cartoon Bomb

Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:5650098.

Engine Cover Retainer Clips for Lexus & Toyota, designed for the cover on my Lexus RX350.

Engine Cover Retainer Clips for Lexus & Toyota

Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:5584322.

This install is not for the timid, since it involves cutting your PC case in most cases. Designed to be mounted from the outside of the case through a 43.5mm X 116mm cutout, then attached with sheet metal screws or 1/8 inch (3mm) pop-rivets which i think would look better.

Things needed to install....

Dremel highly recommended
drill and drill bits
PCI-E PCI Express 16X Riser Card Extender like this one:  https://www.amazon.com/EZDIY-FAB-Express-Flexible-Extension-Upgrade/dp/B07MDLYBJ4?pd_rd_i=B07MDLYBJ4&th=1&linkCode=sl1&tag=bbtech0db-20&linkId=612dfe422cdefb42201458bfb9fc53c2&language=en_US&ref_=as_li_ss_tl (affiliated)
pop-rivets ...1/8 inch (3mm) work great.
Total dimensions 58mm X 135mm X 15mm.



Vertical dual pci mount

Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:5573347.

Blue tooth jukebox, using cheap bluetooth speaker. https://www.amazon.com/gp/product/B00IN2S072?pf_rd_r=B1QK6TM3H3AHH0FN291C&pf_rd_p=9d9090dd-8b99-4ac3-b4a9-90a1db2ef53b&pd_rd_r=702cdda8-bb1c-4037-9b4c-3dad20c0e17a&pd_rd_w=6brhk&pd_rd_wg=kwXqE&linkCode=sl1&tag=bbtech0db-20&linkId=b8acf36cc9e403ed463f6252ce95c05b&language=en_US&ref_=as_li_ss_tl

blue tooth juke box

FirstgenArgontransmissiongasket.stl

102-03    Seal, Oil WBS 30x72x10.stl

92-120mm offset adapter.stl

120-92mm.stl

USA flag stencil

My sincere thanks for your support!
I plan to churn out more functional prints with a hint of humorous nonsense, these plans keep the printers running so I can improve on my designs. If you would need any help feel free to reach out to me as this plan includes access to my Discord.

King / Queen helper

My sincere thanks for your support!
I plan to churn out more functional prints with a hint of humorous nonsense, these plans keep the printers running so I can improve on my designs.

loyal

Simple RGB floor lamp, using paper towel tube, print diffuser in a non translucent white like this: https://amzn.to/3t7SVoR , I printed mine in vase mode but can be printed as is for more diffusing properties. Print diffuser connector, floor lamp base, floor lamp top, and paper towel tube connector in any color you wish. I went and stuck 3 strips of RGB LED strips parallel with the paper towel tubes and paper towel tube connector, evenly spaced around it. Gluing things together is highly recommended. All paper towel tube connections are made for towel tubes with a 40mm +/- i.d. Wiring and soldering skills are very much needed.

RGB floor lamp

diffuser.stl

diffuser connector V2.stl

floor lamp base_v2.stl

floor lamp top v2.stl

paper towel tube connecter.stl

Replica of a vintage Saturn lamp. using https://amzn.to/4dA0pmQ lamp cord or similar.

Vintage Saturn lamp

saturn base v3.stl

saturn half bottom.stl

saturn half top.stl

saturn split ring.stl

A magnetic bowden switcher kit for use with your projects, using 6x3mm magnets (4) and (4) PC4-M6. If you're careful with magnet placement it will stop at the next connection when slid to the side, the magnets act as catches. The parts i used in case you wanna know are listed below.

6x3mm magnets: https://amzn.to/3Xiw4U1

PC4-M6: https://amzn.to/3x1WKOl

 magnetic bowden switcher

slidetop.stl

slidebottom.stl

Simple bottle roller, probably the cheapest and most compact bottler roller.  Using asynchronous motor and 608 bearings and a transfer bearing. Parts i used are here:
Synchronous Electric Motor: https://amzn.to/4fbxmqC …this is for U.S. 120 volts…. other motors should work as to why I did not include mounting holes for it.
Ball Transfer Bearing: https://amzn.to/4611iRY
608-2RS bearings: https://amzn.to/3xXh97v

and you'll have to source two self tapping screws for the motor as i grabbed mine out of my junk drawer. A M3x8 screw for the drive gear on the motor. The drive gear works best if wrapped in electrical tape or use rubber bands. Electrical wiring is up to you,


bottle_roller.stl

I enjoy all kinds of hobbies, electronics, welding, wood working, computers, and... 3D printing. I like being creative and will try to fix almost anything. In other words my designs will mainly be catered to fixing and improving instead of trinkets.
