This is the complete Tamiya ORV Double Wishbone Suspension conversion set that includes the battery door brace and battery access panel to complete the structural improvements needed for the suspension.

This is compatible with the:

Lancia 037 Subaru Brat Frog Blackfoot Mudblaster

Monster Beetle - Need to select the Monster Beetle Version (has flange for the decorative monster beetle decal and antenna mount, this flange version is shown in the images of the Blackfoot without the MB part installed)

If you have the MIP diff installed, select that option (removes compression rings)

This has never been tested with the Thorpe Diff. The thorp telescopic driveshafts are not compatible and geometrically useless in this application. RERE-CVD's are required as the hex version was never tested.

Please watch all videos prior to purchase.

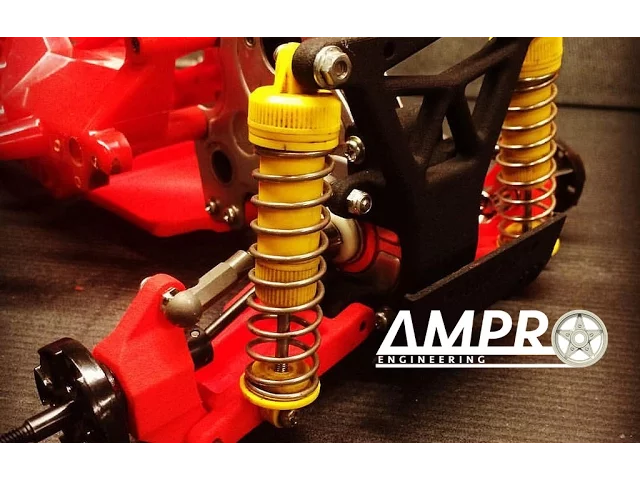

Here is the installation Video: https://youtu.be/q_C-KKbJ3C4

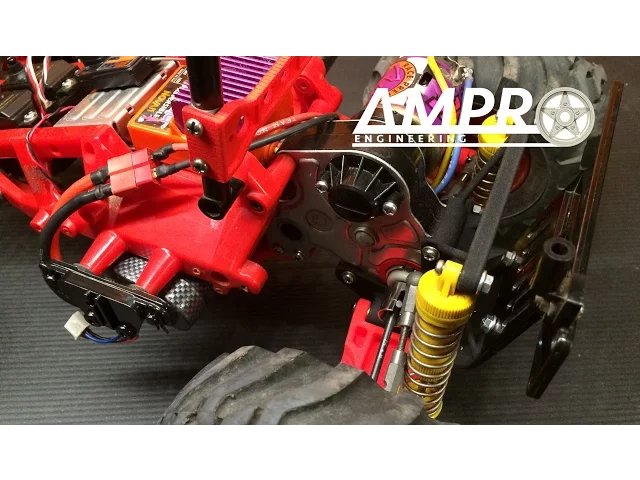

Battery door and testing video: https://youtu.be/M4LEdlsA6PA

Hardware List:

1. 2x 30mm Screw Pin
2. 2x 35mm Screw Pin
3. 3x M3 30 MM screws
4. 5x M3 nuts
5. 4x 4.8mm, 10 mm long stud ball studs
6. 4x 4.8mm Ball Cups
7. 60mm M3 threaded rod (cut to length for upper links)
8. 2x M3x 20mm screws
9. 4x M3x22mm Screws
10. 2x M3 Lock nuts
11. 3mm diameter, 70mm long steel rod
12. 2x body pins
13. 2x 80mm shocks, adjusted to 75-78mm Eye to Eye (stock units will work, please adjust accordingly with internal spacers)

Note that this rear end is designed to work with the updated dog bone axles and new CVD axles.
