**Please read **

Send me a message if you need the labels for the TFC.

This design is only for people that are not using the 1 to 6 switches. There are several solutions out there I will name a few below:

1. Use the BTTF DeLorean Ultimate board (more information in the 3Dynamics designs Facebook group)
2. Replace the 1 to 6 switches with a board that can be controlled remotely and that costs only 6 euro included remote Remote control module
3. Use the Arduino setup as conceived by Kazuaki Wada

Another side note: the Dayton switch provided with the kit will not fit this accurate TFC because it's also oversized in order to match the oversized TFC. This TFC has been desiged to be fully compatible with my 1:8 scale Dayton switch replica, which is available here: 1:8 BTTF DeLorean Dayton switch

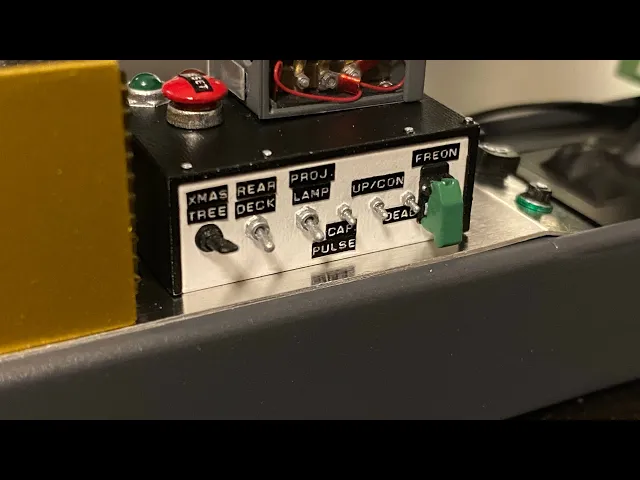

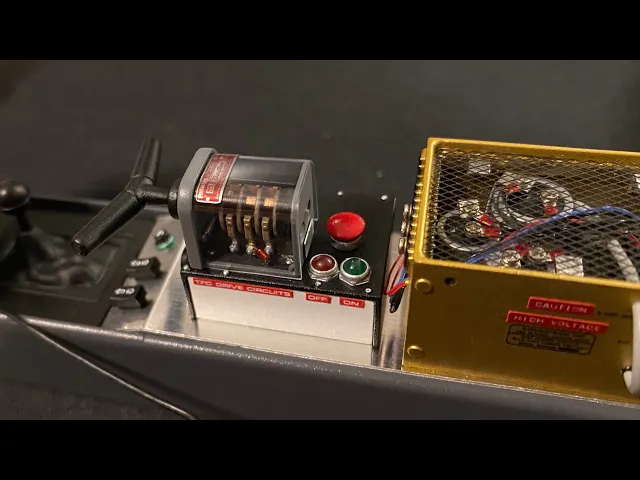

Description Accurate 1:8 scale TFC replica designed for the Eaglemoss DeLorean. Replaces stock parts 43B and 43C. The TFC is scale accurate and a lot smaller than the stock TFC that has been overdimensioned in order to accomodate the 1 to 6 switches. The switches on the sides are separated from the model to allow easier painting. Those are also provide twice for just in case.

**What's included: **

1. 3x fillers to cover the holes in the central console and provide a mounting base for the TFC.
2. TFC base
3. TFC cover
4. Potentiometer knob
5. Reset button
6. 2x X-mas tree switch (choose your own placement in ON or OFF position by rotating 7) it 180 degree)
7. 2x green switch

Paints to use:

• Tamiya grey primer for both top and bottom
• Tamiya white primer for the bottom part (apply after you applied the grey in order to get a somewhat darker shade of white
• Tamiya TS-6 Flat black for the top, potentiometer knob that goes in front, X-mas tree switch and the base coat for the right most part with the green switch on top
• Vallejo Steel 71.065 for the metallic parts including switches
• Vallejo Light Green 70.942 mixed with a very small dab of Vallejo Black 70.950 to make it just a little bit darker
• Vallejo Flat Red 70.957 for the reset button followed by Tamiya X-22 Clear to give it the glance needed

Leds to use:

• One clear red 3mm led
• One clear green 3mm led

Assembly guide Watch the YouTube video below.
