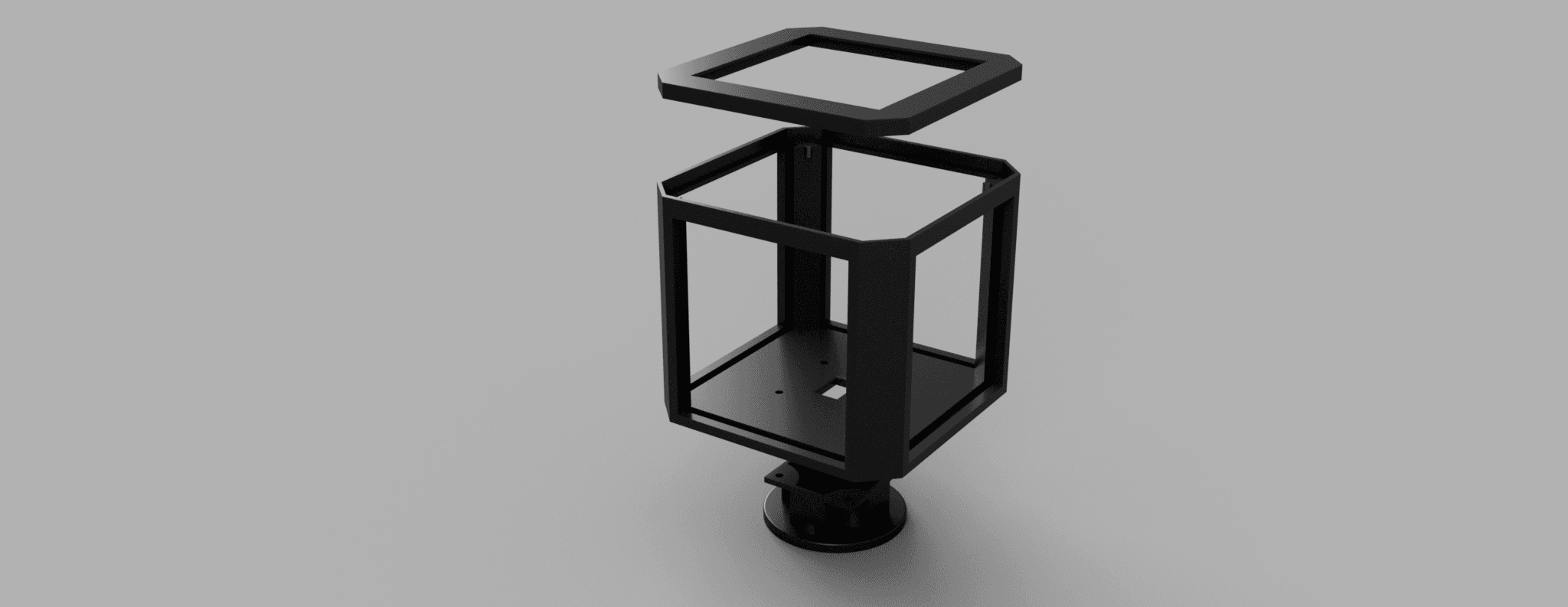

Turns a Twist Lock Photo Box into a lithophane display.
Printing
- All parts can be printed without supports.
- Print the base clips with two perimeters and zero infill so they can easily flex.
- Print the spring with enough perimeters that the spring arm is entirely solid.
- Add brims to prevent curling. All parts must print flat to fit correctly.
- Avoid silk or matte filaments on the mechanical parts on this design. These tend to be more brittle than regular filaments.
Assembly
-
See the video above for basic assembly.
-
Wrap LED strips around lithophane core and run the cord through the hole in the bottom of the box.
Optional Assembly
- Add 6x3mm magnets to the topper and lid for slightly more snap in the puzzle mechanism
- Use glue or 6-8mm M3 bolts to secure the spring to the box lid
Dimensions
- Interior: 90 x 90 x 67mm
- Photo: 87 x 55mm
- Maximum height for HueForge panels (on edge of print): 0.9mm
