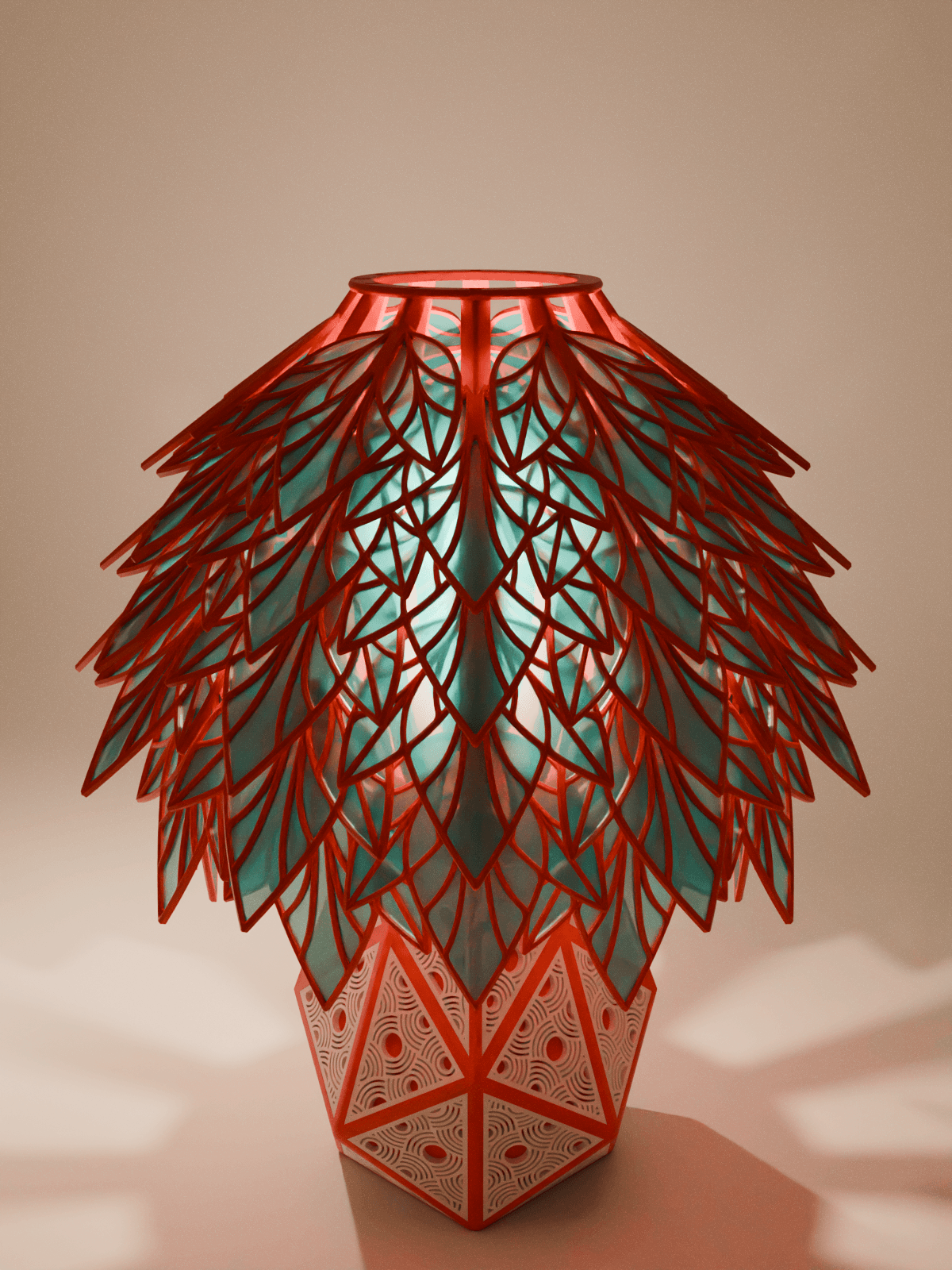

This is the Shade Downwards of the Moduluma Lamp Ecosystem!

The Moduluma Ecosystem is a modular lamp system where every part — vases, shades, inlays, and leaf styles — can be combined to create your own unique lamp design. With interchangeable elements, you can explore endless variations while keeping the build simple and tool-free.

The Shade Downwards creates a focused light direction with its distinctive spline construction. It’s perfect for reading corners or accent lighting where you want the glow directed below.

How to Print: Print all parts on the labeled print plates: Spline Even, Spline Odd, Bottom Ring, Top Ring, Bottom Ring Clips, Top Ring Clips. The print plates are numbered for clarity.

How to Build Your Lamp: Print all the parts you need for your build:

One Vase + Clips Inserts for the Modular Vases Lampshade (Shade Downwards) Leafs for the Modular Lampshades Then assemble the lamp as follows:

Prepare the Vase: Press-fit the inserts into the Modular Vase. Since the parts are mirrored, make sure to insert them all the same way (either with the print-plate side facing out or inwards). Add the Clips: Press-fit the clips into the top side of the vase. Insert the Fixture: Place your lamp fixture (E14, E27, or Bambu Lab LED Kit) into the vase. Build the Shade: Press-fit the bottom clip through the bottom ring into the first spline, then the top clip through the top ring into the same spline. Alternate between even and odd splines all the way around. Finally, press-fit all the leafs into their slots — it’s easiest to push them downward, so adjust the shade position accordingly. Connect Shade and Vase: Align the shade above the vase and press it onto the clips. Be careful not to slip; if it’s tight, press gradually around the sides until it fits securely. Finish: Position the cable into the slot at the bottom of the vase. Your Shade Downwards Lamp is ready! If you have any questions or issues, feel free to reach out.
