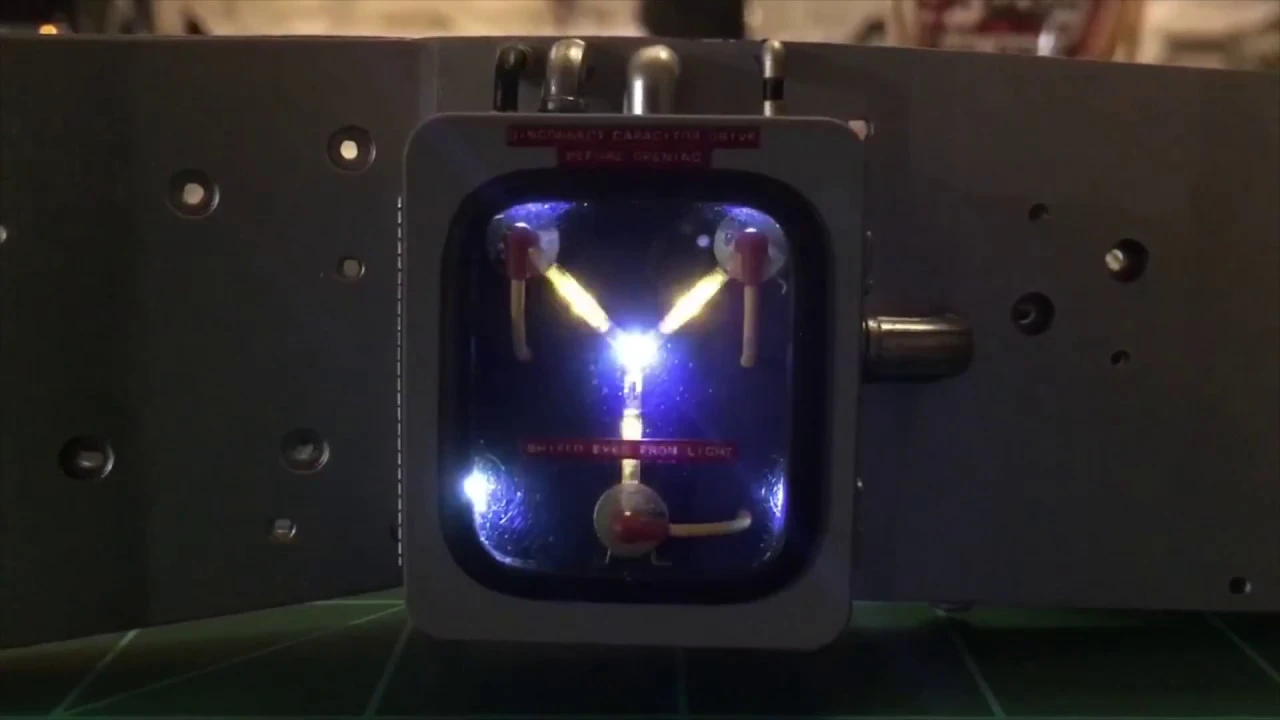

**Great Scott! The Flux Capacitor you've been waiting for is finally here—and it’s more than just a replica, it’s a miniature masterpiece.**

This is a perfect 1:8 scale recreation of the iconic Flux Capacitor from the Back to the Future trilogy, meticulously designed to match the Eaglemoss / Fanhome 1:8 DeLorean model. I’ve captured even the tiniest details of the original, pushing the limits of current techniques to deliver what might just be the most accurate Flux Capacitor available at this scale.

**What's included:**
- Stahlin enclosure including lip at the back as seen in the A version of the car
- Backboard
- Cover version WITH gasket
- Clasps (exact 1:8 scale replica’s of the Vynckier 316SS clasps)
- Relay bases
- Relays

**Assembly and painting**
All parts are sprued together to support easy painting, while thoughtfully designed to keep clear sections untouched—ensuring a crisp final result. Once painted, parts fit seamlessly together and simply need to be glued in place.
For visual guidance, check out the YouTube videos linked in the product description.
I’ve also added pins to the lower lip of the enclosure to allow installation of cables 59C and 59D from issue 59 of the Eaglemoss / Fanhome kit. If needed, you can remove the pins on the bulkhead with a Xuron knife.

**Electronics Board – Plug & Play Time Travel!**
Take your build to the next level with our dedicated plug-and-play electronics board, engineered to deliver an extremely accurate Flux and Time Travel sequence—just like in the movies.
This board connects directly to port 16 of the EM board, with optional Arduino control for advanced modding. It also integrates seamlessly with our DeLorean Ultimate Board for maximum compatibility.
Interested? Shoot us an email at 3Dynamicsdesigns@gmail.com and we’ll get you up to speed in no time!

1:8 BTTF DeLorean Flux Capacitor WITH gasket

Flux Capacitor Backboard revP.stl

**Please read **

Send me a message if you need the labels for the TFC.

This design is only for people that are not using the 1 to 6 switches. There are several solutions out there I will name a few below:
1) Use the BTTF DeLorean Ultimate board (more information in the 3Dynamics designs Facebook group)
2) Replace the 1 to 6 switches with a board that can be controlled remotely and that costs only 6 euro included remote Remote control module
3) Use the Arduino setup as conceived by Kazuaki Wada

Another side note: the Dayton switch provided with the kit will not fit this accurate TFC because it's also oversized in order to match the oversized TFC. This TFC has been desiged to be fully compatible with my 1:8 scale Dayton switch replica, which is available here: 1:8 BTTF DeLorean Dayton switch

**Description**

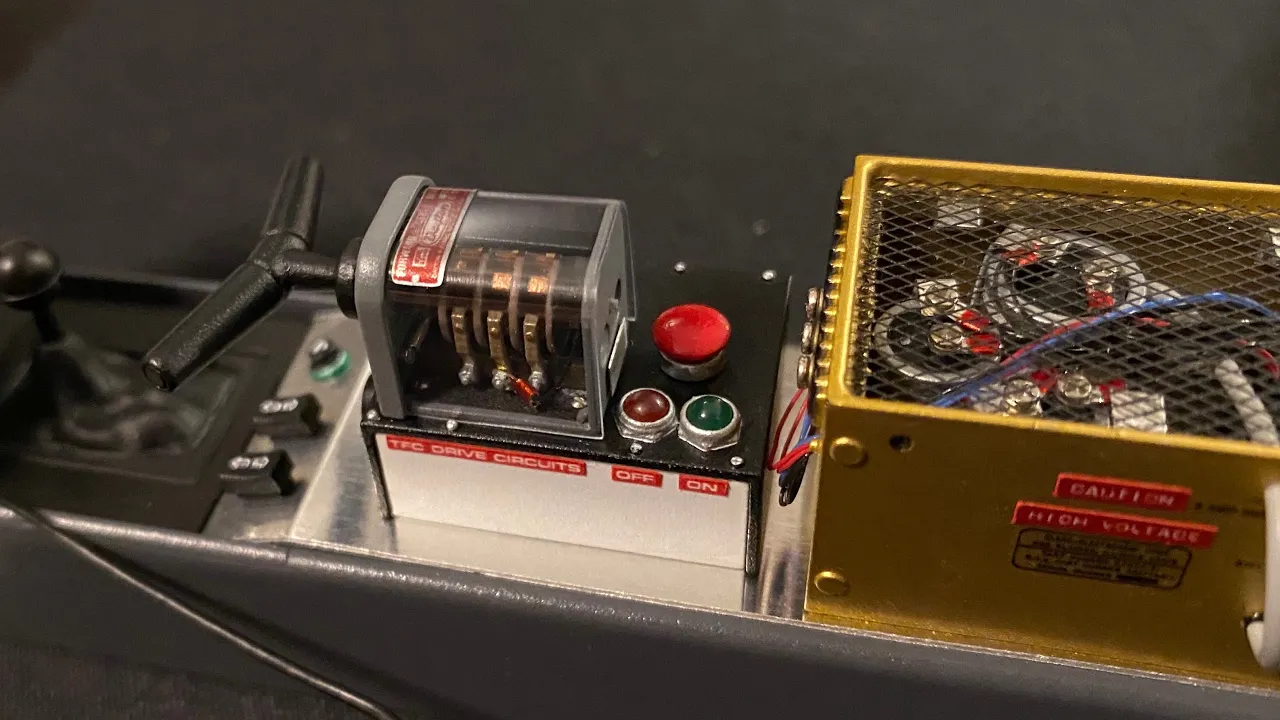

Accurate 1:8 scale TFC replica designed for the Eaglemoss DeLorean. Replaces stock parts 43B and 43C. The TFC is scale accurate and a lot smaller than the stock TFC that has been overdimensioned in order to accomodate the 1 to 6 switches. The switches on the sides are separated from the model to allow easier painting. Those are also provide twice for just in case.

**What's included: **
1) 3x fillers to cover the holes in the central console and provide a mounting base for the TFC.
2) TFC base
3) TFC cover
4) Potentiometer knob
5) Reset button
6) 2x X-mas tree switch (choose your own placement in ON or OFF position by rotating 7) it 180 degree)
8) 2x green switch

**Paints to use:**
- Tamiya grey primer for both top and bottom
- Tamiya white primer for the bottom part (apply after you applied the grey in order to get a somewhat darker shade of white
- Tamiya TS-6 Flat black for the top, potentiometer knob that goes in front,  X-mas tree switch and the base coat for the right most part with the green switch on top
- Vallejo Steel 71.065 for the metallic parts including switches
- Vallejo Light Green 70.942 mixed with a very small dab of Vallejo Black 70.950 to make it just a little bit darker
- Vallejo Flat Red 70.957 for the reset button followed by Tamiya X-22 Clear to give it the glance needed

**Leds to use:**
- One clear red 3mm led
- One clear green 3mm led

**Assembly guide**
Watch the YouTube video below.

1:8 BTTF DeLorean TFC

TFC_rev_T4.stl

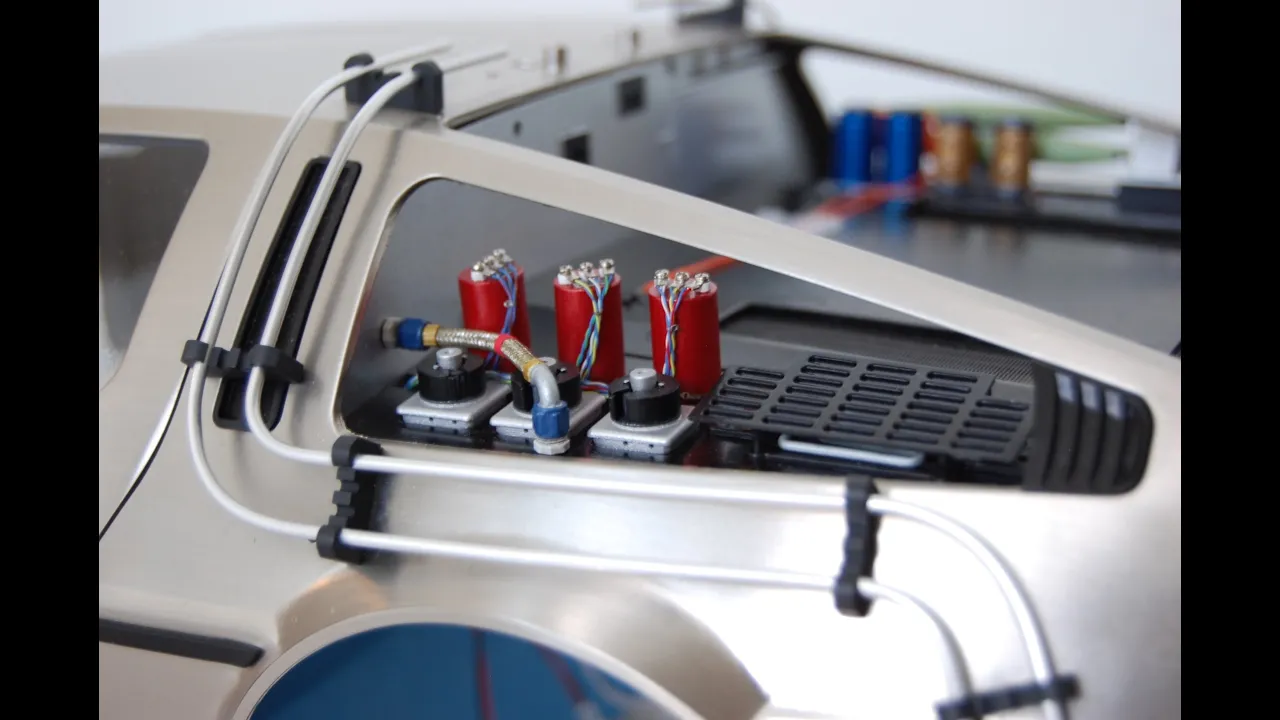

These are the red capacitors for the left pontoon of the Back to the Future Delorean. They replace the inaccurate stock parts 82G from issue 82 and  they can be installed the same way as the stock parts, by using an BP screw for each capacitor.

**Differences in respect to the stock part:**
- Accurate height in order to match the movie used part
- Correct rounding of the top and bottom edges
- Each capacitor is in the correct position
- Terminals separated from each other
- Made the base separate for easy painting

**How to place them in the right position:**
Take a look at the top view which shows the correct position of the capacitors.

Accurate to the max and designed to perfectly fit the 1:8 scale Eaglemoss Back to the Future Delorean.

**Painting and assembly**
1) Prime with Tamiya grey primer
2) Paint the bases with Vallejo Gunmetal
3) Paint the screws with Vallejo Steel
4) Paint the Capacitors with Tamiya TS-18 Metallic Red
5) Paint the terminals with Vallejo Gloss White
6) Glue the pins on the bottom of the capacitors in place

Install the same way as the stock parts, by using a BP screw for each capacitor.

Add wire clips by using the MP screws and be carefull not to overtighten them or the terminals could break.

1:8 BTTF DeLorean Red Capacitors

Red_capacitors_revF_1mm_taller.stl

Accurate radiator part designed for the 1:8 DeLorean.

These are the things I fixed in comparison with the stock part:
1) the stock part consisted of just one radiator unit while there should be 2 on top of each other.
2) the tube was not round but flattened over the whole length while it should be flattened only at the ends where it is bent.
3) there was a weird bend in the tube the line of the short one not being straight. My design fixes this.

1:8 BTTF DeLorean Radiator

Radiator.stl

These are the zero cans for the right pontoon of the 1:8 scale Back to the Future Delorean. They replace the  inaccurate stock zero cans, part  81F from issue 81 and they can be installed the same way as the stock parts, by using two AP screws on the wedge.  This design adresses a few issues with the stock part while adding the following:
Correct 1:8 scale dimensions of the real parts
Solved the erroneous pontoon angle, which results in the weird looking bottom part of the stock cans, by adding the wedge (missing pontoon part).
Separate parts and not bound together like the stock part
Last but not least: they now have the characteristic corners and feet and cut on the bottom that gives them their defining look.

**Painting instructions: **
There's a picture above showing the 3D parts from below. The sprue is indicated with green. Pay attention when removing the sprue not to remove the pins. After priming all parts, paint the wegde black. Paint the base and the zero cans using Vallejo steel or Mr. Hobby SM08 Super Metallic.

**Assembly instructions:**
First step is to glue the pins underneath the round feet of the Zero cans onto the base. Then glue the pins underneath the base onto the wedge.  Second, as the zero cans are bigger then the stock ones and there's just a little space left, attach the pontoon to the car frame first, then slowly insert the cans through the window in order not to damage them or the paint application. Then screw the wedge in place with two AP screws from below. Accurate to the max and designed to perfectly fit the 1:8 scale Eaglemoss Back to the Future Delorean. Fully tested prior to release as you can see from the pictures. Available only in the highest resolution possible to not compromise the design.

1:8 BTTF DeLorean Zero Cans Pontoon

Zero_cans_pontoon_rev_D.stl

These movie accurate capacitors were designed to replace the inaccurate part 83G from issue 83 on your 1:8 scale Back to the Future Delorean model.

Differences in respect to the stock part:
- Accurate height matching the movie used part
- Left capacitor rotated in order to be movie accurate
- Separated capacitors so that they are not stuck to each other like the stock part
- Added the top ridge so that they now really look like capacitors, not just cylinders
- Separated the top part with the terminals in order to be able to paint separately
- Accurate two step the terminals
- Added capacitor vents (small white circles)
- Made the base separate for easy painting

**Assembly notes:**
You can still use the AP screw just like in the instructions in the magazine, however you will need to use an M2 washer, as the AP screw is too long and I didn't want to compromise the base by adding an extra cilinder on the visible top of the base.

**How to place them in the right position:**
The left capacitor is a little rotated make sure you place the same way as indicated in the render
The vent (the white circle on the capacitors top) should face towards the engine for the left capacitor, while the vent on the right capacitor should face you.

**Paints to use:**
- Tamiya grey primer
- Vallejo Steel 71.065 for the base
- Tamiya PS-16 Metallic blue
- Tamiya TS-6 Flat Black

Accurate to the max and designed to perfectly fit the 1:8 scale Eaglemoss Back to the Future Delorean.

1:8 BTTF DeLorean Blue capacitors

Blue_capacitors_revF.stl

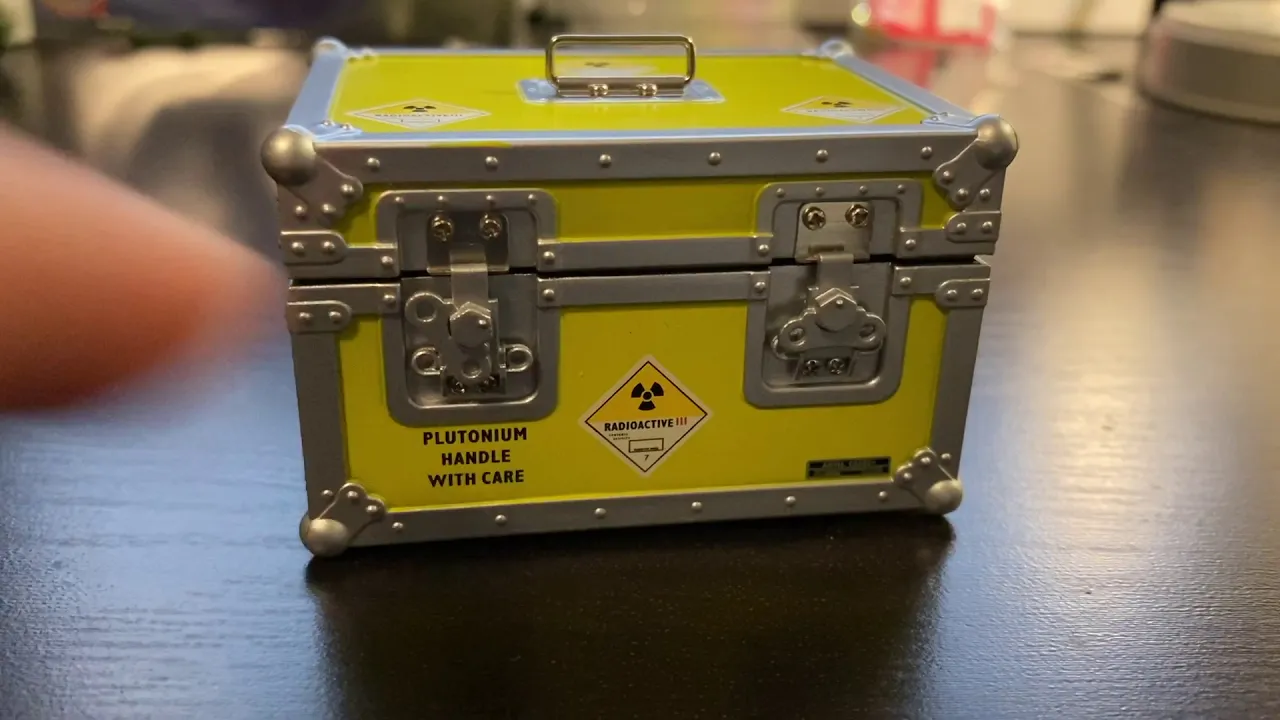

I designed these latches to replace the stock latches (part 128D) of the plutonium case for the 1:8 scale BTTF DeLorean model. Accurate to the max and only available in the highest resolution possible to get the best results.

**What's included:**
The set contains 3 latches. Two of them are the same so that you can put them in the same position like Eaglemoss does and there's a  3rd one that matches the angle of the latch seen in the movie. So choose whatever setup you like most.

**Painting instructions**
1) Prime with Tamiya grey primer
2) Paint with Tamiya aluminium or Vallejo steel

**Installation instructions**
1) Remove the OP screws that hold the stock latches, should you already have put them into place.
2) Place the new latches  and put the OP screws back in place. Remember to not overtighten the screws, stop screwing as soon as you feel resistance.

1:8 BTTF DeLorean plutonium case latches

PB_latches_revG.stl

This is the split loom (black hose that keeps the wires together) that goes in between the two purple clamps of our 1:8 scale X-mas tree replica. Replaces stock part 59D but will not fit the stock X-mas tree. For more information on our X-mas tree see below.

Our X-mas tree has the following characteristics:
- precise 1:8 scale replica (smaller then the stock one)
- 200 nano leds
- metal enclosure
- fully accurate Time travel sequence recreated from 300 stills from the movie.

Given the complex nature of production, our X-mas tree is only available fully assembled, should you be interested in purchasing one, contact us through the following email address: 3dynamicsdesigns@gmail.com
