Diatone Roma F4 LR GPS and ELRS Antenna Mount

28 downloads · 4 years ago · Mount for BN-180 and ELRS/Crossfire antenna for DIatone Roma F4 LR. Now includes a version with 20m

Description

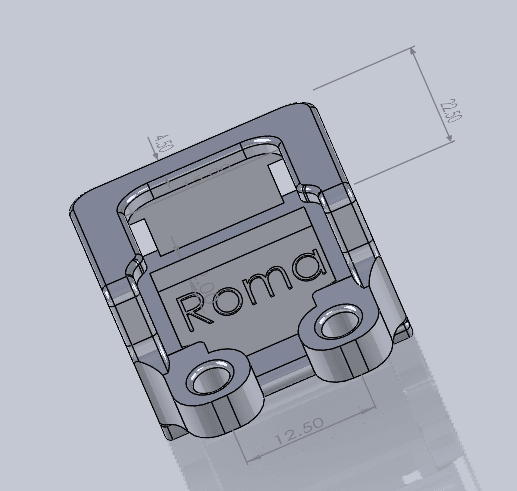

Mount for BN-180 and ELRS/Crossfire antenna for DIatone Roma F4 LR.

Now includes a version with 20mm hole spacing for more fit options. (As a separate zip in the download)

As a fair warning, this was designed by me, not Diatone, so I can't be certain it's perfect. If anyone knows where to find an official model please link it here.

.SLDPRT and .STL available

P.S. Be warned, I think Thangs might think these dimensions are in imperial units so its huge in the augmented reality, if this is the case when you download it just convert to mm (divide by 25.4) and it should be scaled correctly.

Tags:

Discussions

phantianakos2 years ago

Good model! But could you change some of the dimensions? Unfortunately it doesn't fit my F35 frame... The distance between the center of the struts should be 20mm, everything else is the same

Reagan Ducote2 years ago

I've added a 20mm CtC version to the download

Reagan Ducote2 years ago

Yeah I can look into it, is that 20mm from center to center or edge to edge?

kingmac333 years ago

This is exactly what I'm looking for in my Roma 4LR build. Only problem is I have a Goku GM10 Pro GPS module which is 25mm x 25mm x 6mm. Would you modify the design you created to accommodate the larger module and publish it here or email it to me? I can pay you for your time if required.

Reagan Ducote3 years ago

Yeah sure I can do that, feel free to email me at RLD.contactme@gmail.com. I've looked at the original model and 25x25 is larger than this shell can accomodate, so the whole piece will need to be remade, but it shouldn't take too long.
