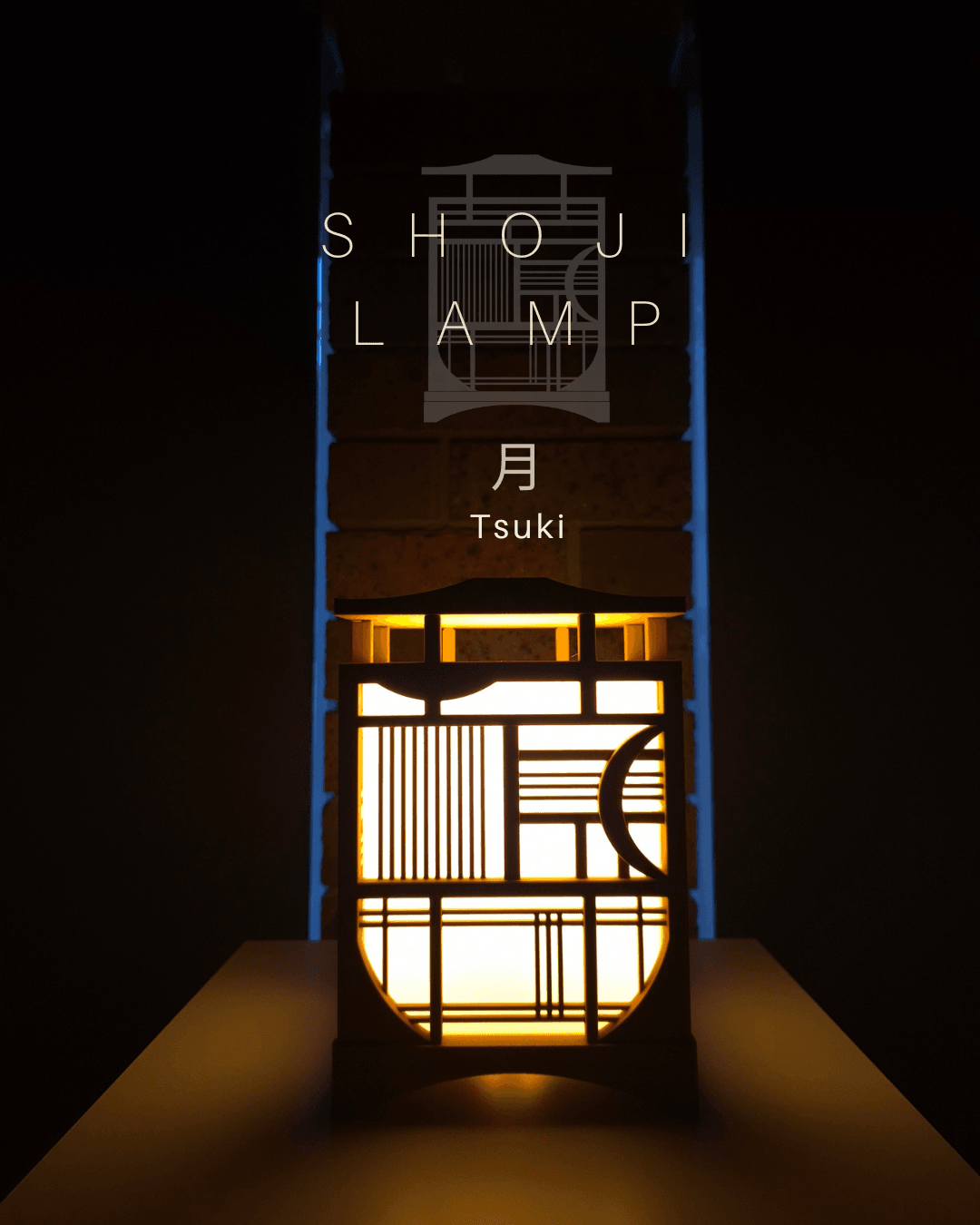

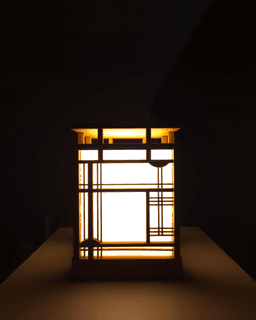

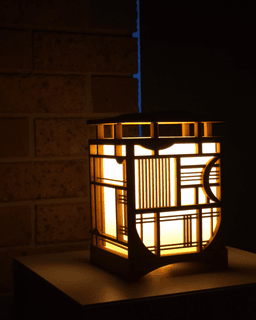

Introducing the second of the Shoji Lamps — Tsuki (月)

Inspired from Shoji architecture, the Tsuki model is built around the crescent shape - drawing influence from the moon. This element runs throughout the whole design, blending with Shoji structures and framing the diffuser. The lamp creates a minimalistic, cosy and calm touch in any space. Printed in PLA, the model is designed to be modular and is assembled without any tools required :)

What's Included

8 modular components Leg Plate The base foundation. Four feet that raise the lamp slightly off the surface. Floor Slab Sits flush on top of the leg plate. Houses the central socket hole. Shoji Wall Panels (2 Front, 2 Side) Four shoji-inspired panels fitting with interlocking joints to form a cube structure. Friction Collar A friction-fit ring that seats inside the floor slab hole. The lamp socket is held up snugly in place without screws or fixings. Light Diffuser The paper shade that slides inside the wall panel cube acting as the light diffuser Roof Plate The top piece which locks the assembly together.

Assembly Order

1. Connect the leg plate to the floor slab
2. Join all four wall panels at their interlocking joints to form a cube
3. Lock the panel cube down onto the floor slab
4. Feed the lamp socket cable up through the hole in the base from below
5. Insert the socket into the friction collar
6. Press the friction collar snugly into the floor slab hole
7. Slide the light diffuser inside the panel cube
8. Connect the roof plate down to lock everything in place

Hardware Required

• Smooth walled E27 lamp cord (Here is the link I used for the pendant lamp cord:))
• E27 LED bulb

Recommended slicer settings (applicable to all parts) Layer Height: 0.16 Initial Layer Height: 0.2 Seam position: Aligned Wall Generator: Classic Order of walls: inner/outer

Wall loops: 2 Sparse Infill density: 10%

Initial layer: 50mm/s Initial layer fill: 105mm/s Slow down for overhangs: yes

No support needed for all parts

Filament Used in pictures:

• Bambulab PLA Wood Clay Brown
• Bambulab PLA Matte White

Need Help? If you have any issues with printing, assembly, or fit — feel free to message me on Instagram or here and I'll get back to you asap! I want it to work perfectly for you.
