Overview

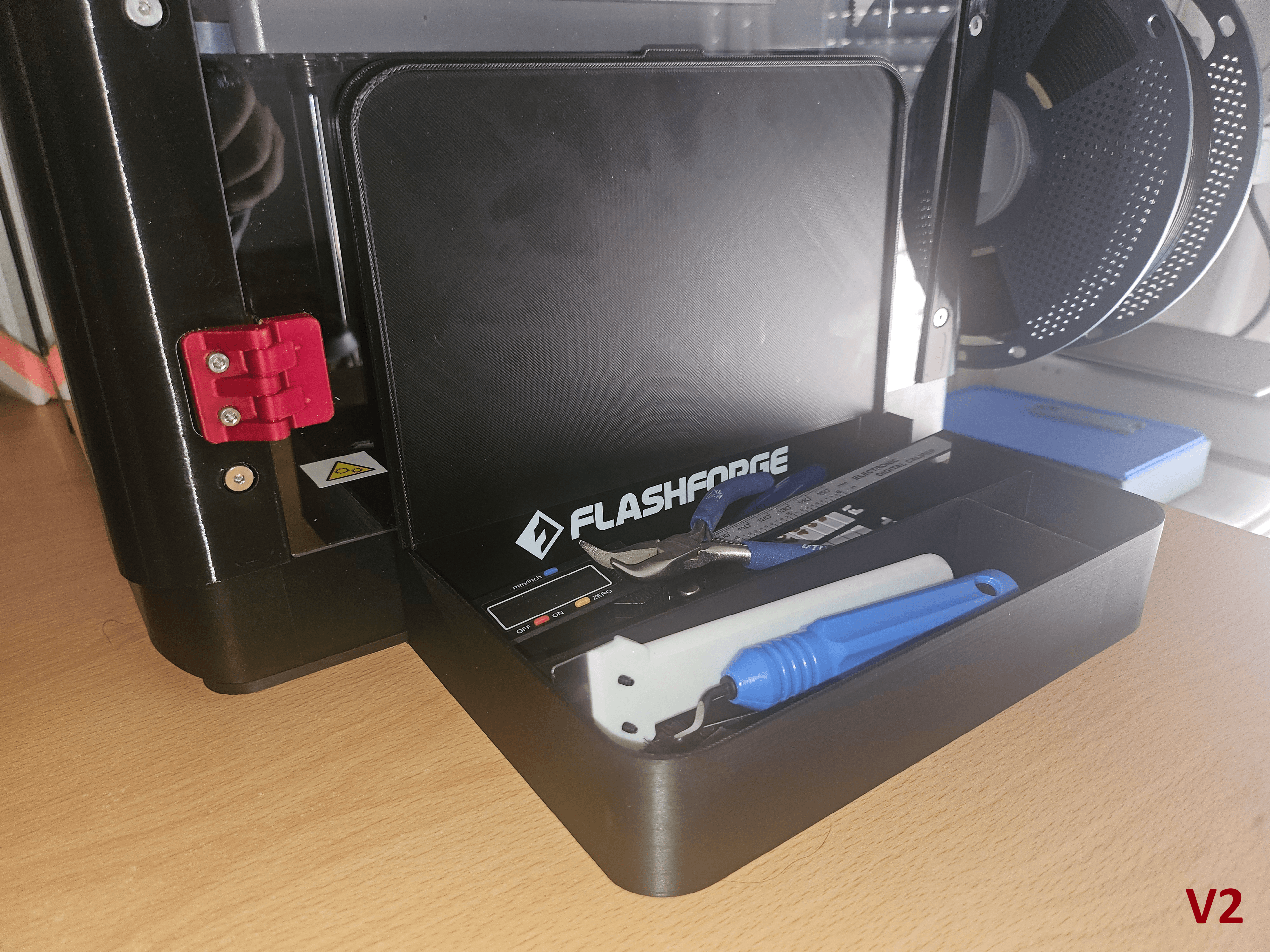

Custom-designed toolbox specifically for the Flashforge Adventurer 5M (AD5X / AD5M).

The box features an integrated Snap-Lock system. Two anchors slide into the box's side slots and securely embrace the printer's front feet. No screws or glue are required.

V2

• Rounded front corners
• Removed rear side to show printer logo
• Added cover

Key Features

• Zero Slide: The box stays perfectly aligned even during high-speed printing.
• Single-Plate Print: Optimized to fit the entire set (box + 2 anchors) on a single 220x220mm build plate.
• Optional: Plate with cover.
• Organization: Large compartment for tools and specific slots for Allen keys and nozzles.

Print Settings

• Layer Height: 0.16mm (recommended for the snap-fit tolerances) or 0.20mm.
• Infill: 15-20% (Grid or Gyroid).
• Brim: 5mm brim is highly recommended for the two small foot anchors.
• Supports: Not needed for the main body.

Download on other platforms (3mf)

• MakerWorld: https://makerworld.com/es/models/2613340-flashforge-ad5x-ad5m-snap-lock-toolbox
• Printables: https://www.printables.com/model/1663498-flashforge-ad5x-ad5m-integrated-snap-lock-toolbox
