🛠️ Professional EDF System: High-Thrust Modular Design First Type EMV EDFs.

Designed by an RC Pilot for true RC enthusiasts. This isn't just a 3D model—it's a flight-tested propulsion system engineered for maximum efficiency, clean aerodynamics, and ease of assembly.

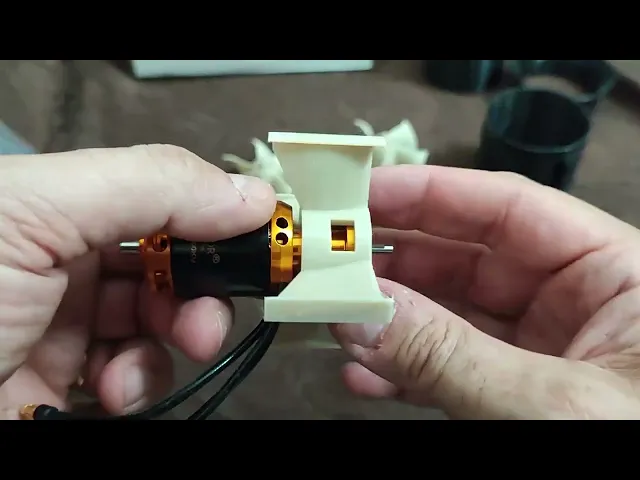

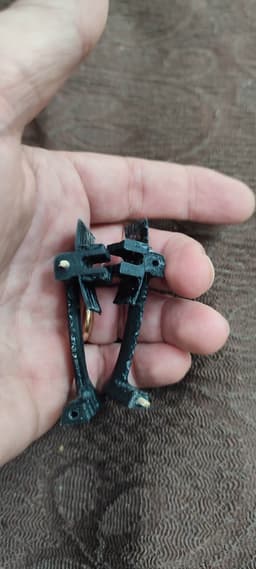

🌟 PROPRIETARY FEATURES: "Shell-Lock" Stator (Exclusive Design): My innovative split-stator housing snaps perfectly around the motor. No more struggling with tiny screws in tight spaces! It’s a rock-solid, tool-less motor mounting system.

Zero-Drag Cable Management: One of the stator vanes acts as a structural conduit. Your motor wires are "hidden" inside the airfoil, protecting them from the spinning rotor and eliminating aerodynamic turbulence for a cleaner intake.

Precision-Engineered Rotors: Unique blade pitch, curvature, and twist designed for high static thrust and that authentic, high-pitched "jet" sound.

Multi-Shaft Compatibility: Each pack includes specialized hubs for 3.0mm, 3.17mm (1/8"), and 4.0mm shafts (and larger for the 150mm beast) to ensure a perfect, balanced fit without sloppy adapters.

⚠️ WARNING: FOR EXPERT BUILDERS ONLY – READ BEFORE PRINTING To operate these fans safely at high RPM, two mandatory mechanical procedures are required:

Shaft Modification (Mechanical Lock): You MUST cross-drill the motor shaft (1mm) to install a steel locking pin. This is the only way to safely anchor the rotor against high torque.

Mandatory Dynamic Balancing: 3D-printed rotors are DIY components and MUST be dynamically balanced before use. High-RPM rotation without proper balancing WILL lead to catastrophic structural failure (explosion). Use at your own risk.

Material Recommendation: Rotors should be printed in high-tenacity materials like Carbon Fiber Nylon (PA-CF) for structural integrity.

📦 WHAT’S IN THE BOX: Main Fan Shroud (Optimized versions for both Inrunner & Outrunner motors).

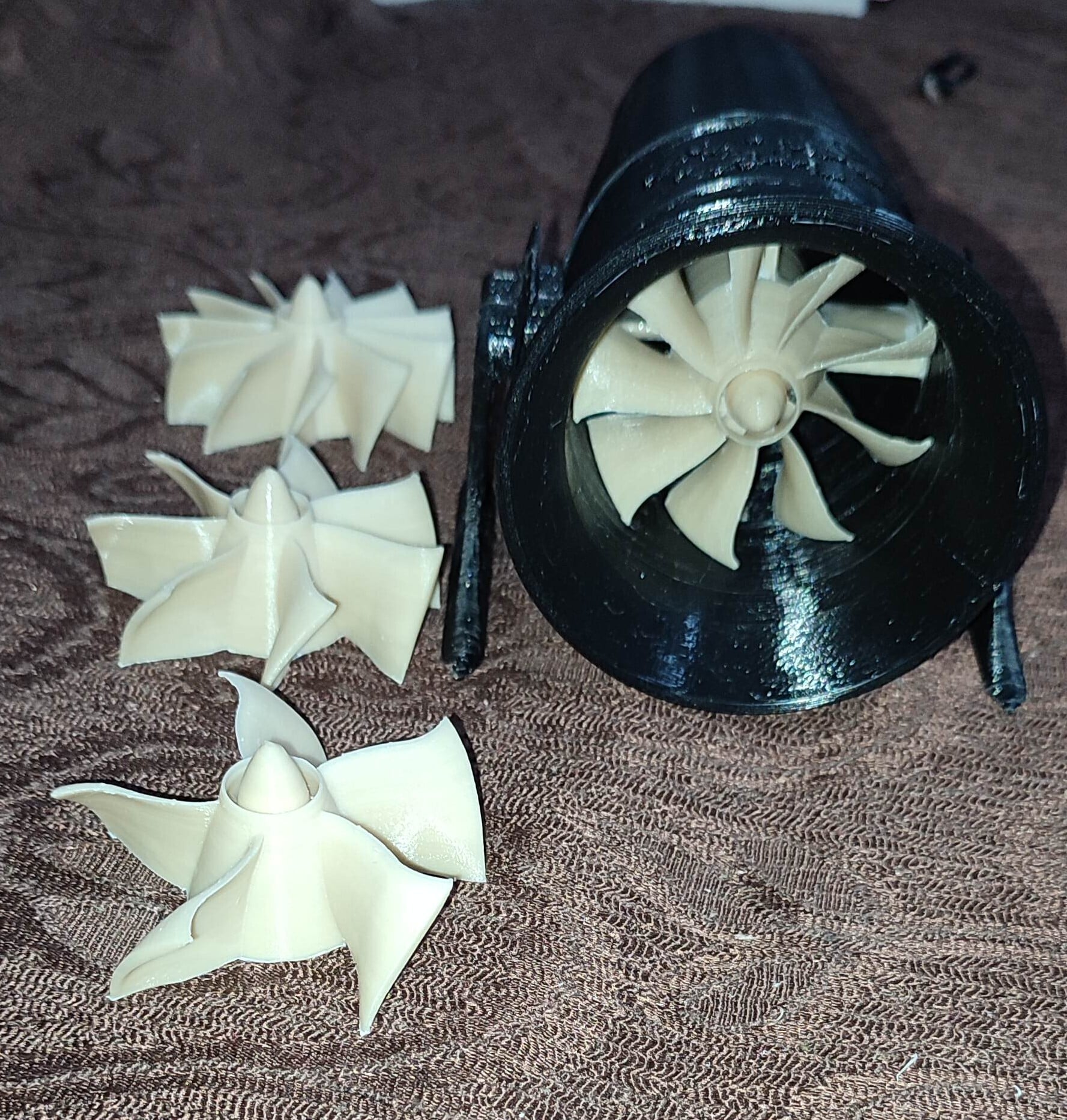

Complete set of Rotors (5, 7, 9, and 11-blade options).

Specialized hubs for various motor shaft diameters.
