This is a redesign of my low profile Gaggia Classic Pro drip tray. This version has walls that ride up the edge of the machine to prevent drips and splashes from escaping the drip tray. It also features an optional RFID tag chamber embedded in the print to enable automations. For example I use home assistant, so when I scan the tag with my iPhone an automation runs and toggles the smart switch that powers my espresso machine. Both the RFID and non RFID lid are included here. If you've purchased my old model, contact me at skylakelabs1@gmail.com for this update!

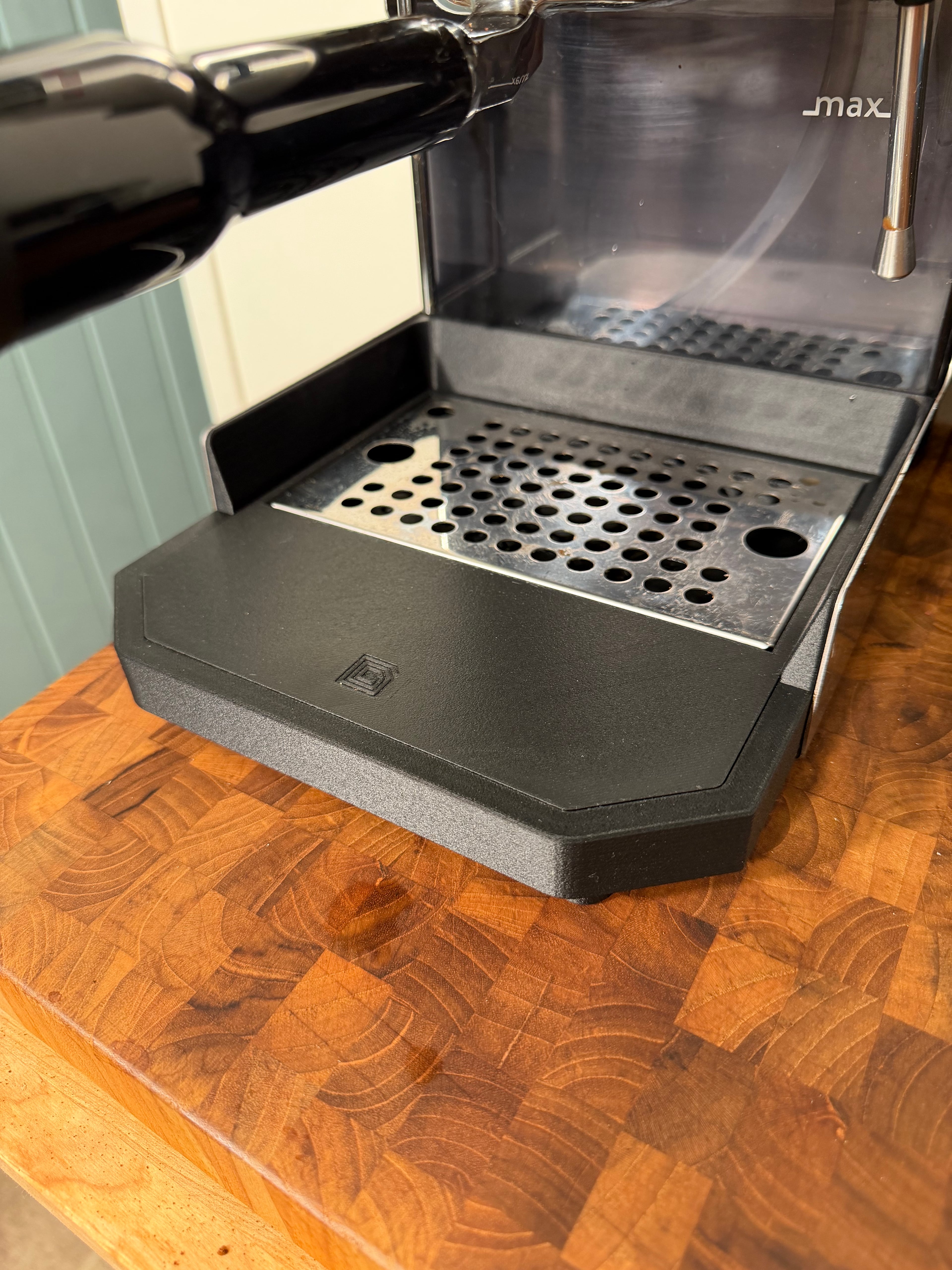

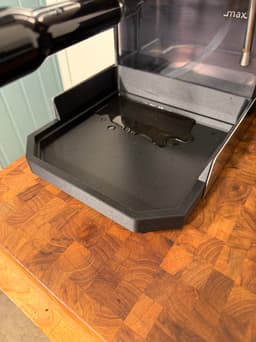

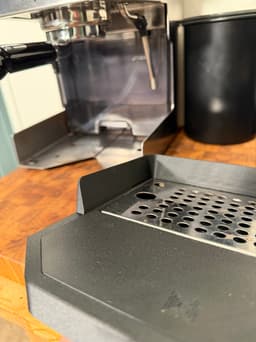

3 Different sizes included in the download. 30, 50 and 70mm. The sizing is describing the additional length added from the original drip tray (and edge of the machine). The photos are with the 70mm version with RFID top.

Print instructions: Print in higher temp filament (I Prefer ABS-GF) The .3mf has everything set up to keep this water tight. Wall loops: 5+ Top shell layers :5+ Infill: Gyroid 10%

RFID instructions: Insert a pause at the beginning of layer 32 and stick down the RFID sticker. The tag chamber has an internal dimension of 22x12x0.4mm. I used the NTAG213 RFID stickers.
