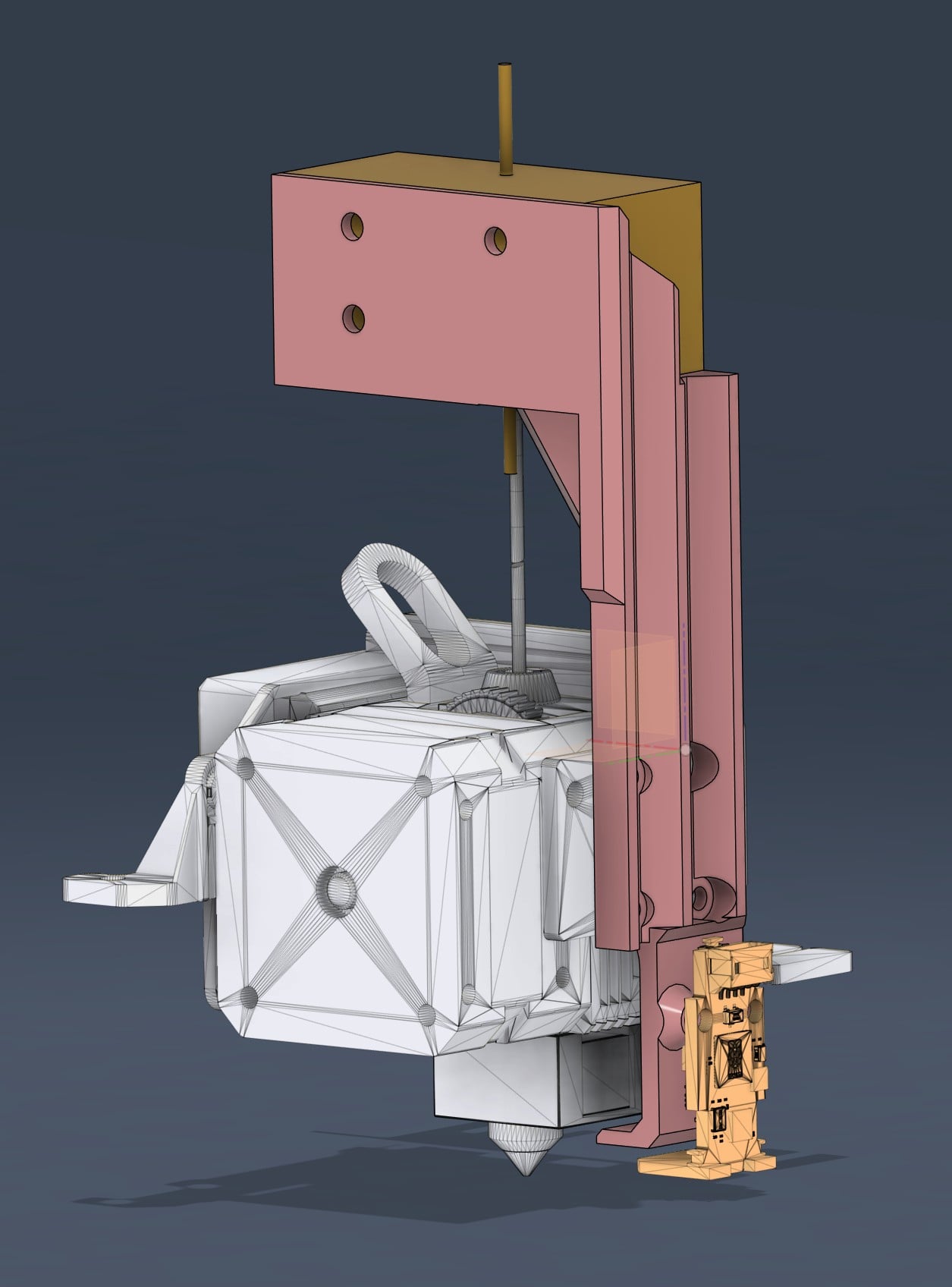

Mount for the BTT Eddy probe and the BTT SFS (Smart Filament Sensor) designed to attach to the right side of the Creality Sprite Pro extruder. This version provides a rigid, low-profile installation while keeping both sensors cleanly integrated for Eddy-based bed leveling and filament runout detection.

Mounting Hardware

• M3 8mm Socket Cap Screws (5)
• M3 nuts (2)

Three screws are used to attach the mount to the extruder. The other two are used with the nuts to attach the Eddy sensor to the mount. Uses standard BTT SFS mounting hardware (same screws as stock installation).

Offsets for Klipper Configuration

• X offset: 29 mm
• Y offset: 0.50 mm

Print Settings

• Orientation: Print on its side
• Supports: Grid supports required
• Material: Heat resistant material recommended

Important Notes

• The BTT Eddy must be used without its protective case for this mount.
• With the case removed, when following the official BTT calibration procedure, set the bottom of the Eddy to ~24 mm above the build plate (instead of 20 mm as stated in the standard documentation).
• Designed specifically for the Creality Sprite Pro extruder (right-side mounting).
• Compatible with Taurus v5 duct.
