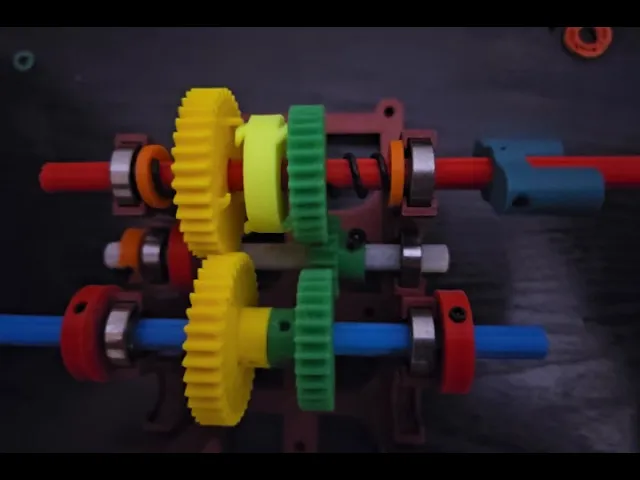

2way to 1way gearing mechanism

converts 2 directional motion to 1 direction using slanted teeth and a gearing arrangement where turning the input axle clockwise locks onto a gearing set of 3 gears, and counterclockwise locks onto a 2 gear attangement, therefore the output axle will always turn in one direction.

Anyone is free to use or modify my designs, I put all my stuff out CC:by-sa4.0, which is designed to allow anyone to use modify sell optimize etc, the designs, however if you make any remixes or obvious alterations you can't patent them but have to also put it out into the public domain for others to use, I believe this is good to allow the spread of new ideas.
Credit must be given to "RLVLR" or "The Releveler" while I don't care about credit personally, I think things should just exist for others to use, I do think that without attribution it'd be easy for others to attempt to steal or potentially try to limit others from using the stuff I've made, so for that reason to keep it in the public domain, i think having that distinction can be needed.

this goes for all projects I have made, or anything created from my work,
