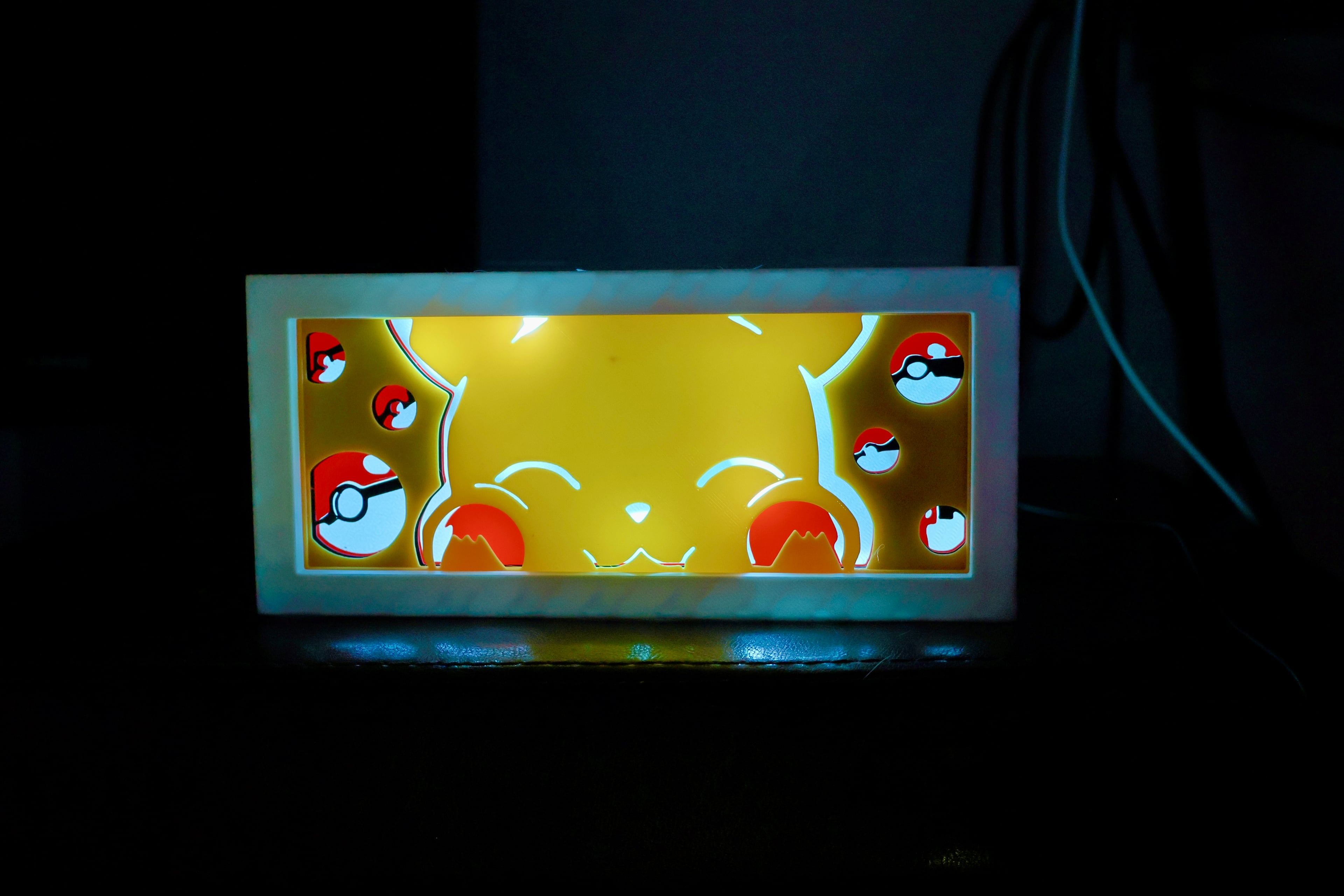

Cute Pikachu LED Lightbox - Printing Instructions Included

All the necessary printing instructions are included in the file. If you have any questions, feel free to DM me!

Assembly As shown in the photos above but also numbered on the STL Files

You will need a 1mm thick glass layer or any transparent material of your choice. 195mm x 80mm x 1mm Also, make sure to have a strip light of your choice for the lighting.

For Support,Commercial Use & More: https://www.patreon.com/c/ACSPARK3D

Enjoy showcasing your Cute Pikachu lightbox!

Note to always put the transparent layer last

Recommended to print the first black frame at 30m/m speed

Manufacturing settings

LightBox Frame Settings: Layer Height: 0.2 Walls: 2 Bottom: 2 (Or 3 to hide infill lines) Top: 2 15% Infill

LightBox Back Plate Settings: Layer Height: 0.2 Walls: 2 Bottom: 3 Top: 3 10% Infill

LightBox Transparent Layer: Layer Height: 0.2 Walls: 2 Bottom: 2 Top: 2 1% Infill

Design Layer Settings: Layer Height: 0.2 2 Walls 2 Top/Bottom 3% Infill No supports
