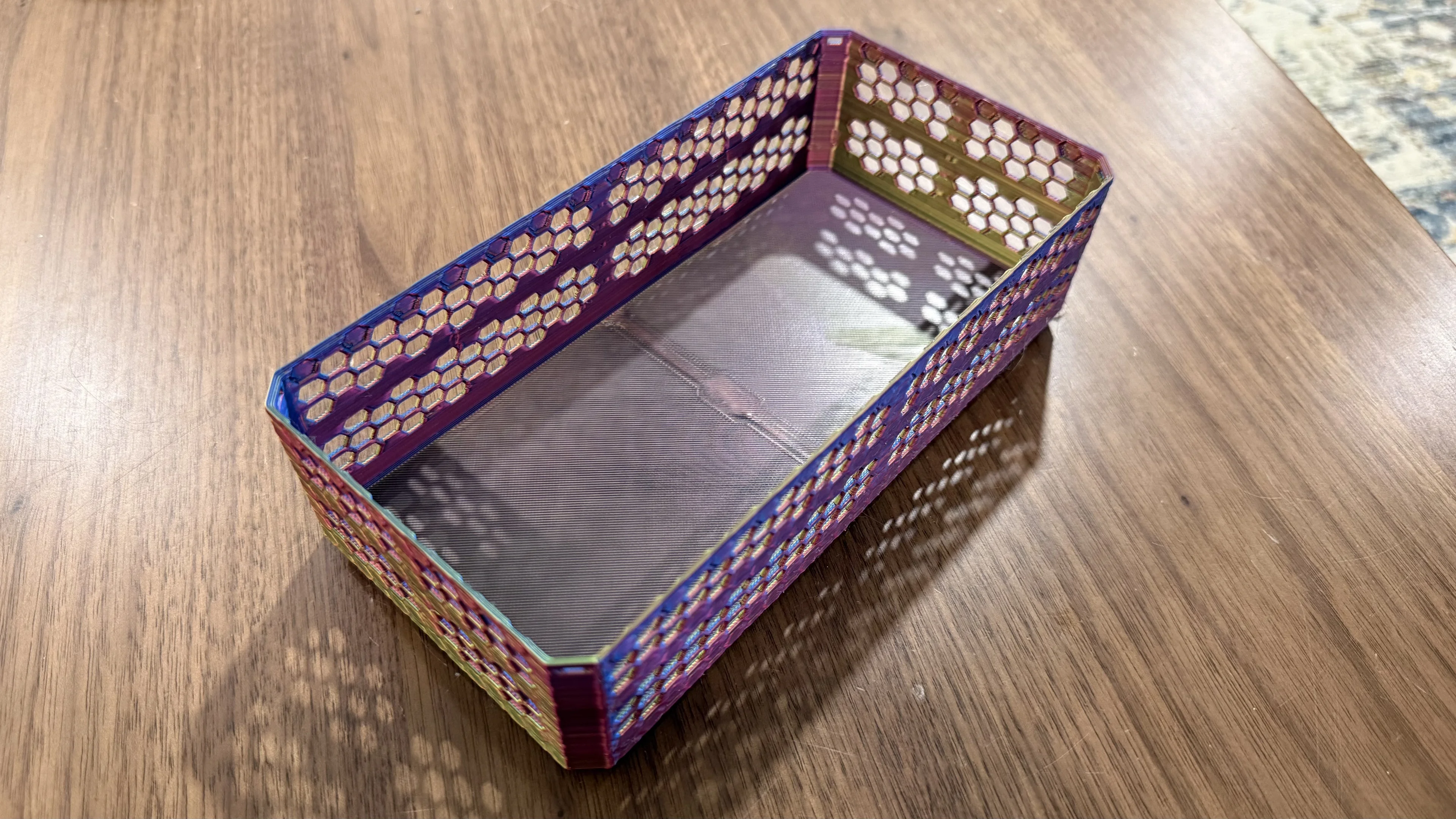

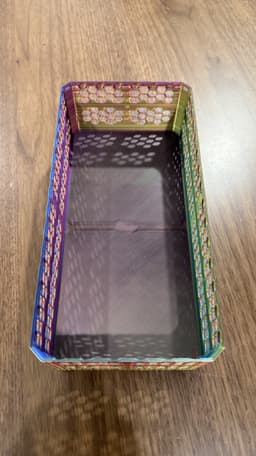

Stackable Pencil Bin – 2×4 MultiBoard Unit

This stackable pencil/pen bin is built on the MultiBoard/MultiBin shell system, scaled to a 2×4 unit footprint.
It features simplified bottom connectors for easy classroom stacking and improved durability, plus a hex-grid wall texture that makes contents visible from the outside.

Perfect for organizing pencils, markers, or tools in a modular setup.

---

Dimensions

• Width (X): 85.0 mm / 3.35 in
• Length (Y): 170.0 mm / 6.69 in
• Height (Z): 55.0 mm / 2.17 in

---

Features

• MultiBoard/MultiBin CU - 2 units wide × 4 units long footprint
• Simplified Connectors – stronger and easier to stack for classrooms
• Hex-Grid Sides – lets you see what’s inside at a glance
• Stackable Design – bins nest securely on top of one another
• Print-Friendly – optimized for FDM printers

---

Print Settings

• Layer Height: 0.20 mm (standard)
• Infill: 15% (Grid or Gyroid recommended)
• Walls: 3 perimeters
• Top/Bottom Layers: 4–5
• Material: PLA (easy detail, best for classroom/desktop use) or PETG (tougher, better for heavy handling)
• Cooling: PLA: 100% after layer 3; PETG: 60–80%
• Supports: Not required for most printers, but may be needed if you notice sagging.
• Adhesion: Flat base, standard skirt/brim works fine

---

Printability Notes

• Bridging: If bridging across hex openings sags, reduce bridge speed to 20–25 mm/s and set bridge flow to ~0.95–1.0.
• Stack Fit: If bins are too snug, apply Horizontal Expansion of −0.05 to −0.15 mm in slicer.
• Material Choice:
  • PLA: crisp detail, easiest tolerances, great for indoor use
  • PETG: more durable, good for bins that are handled often
