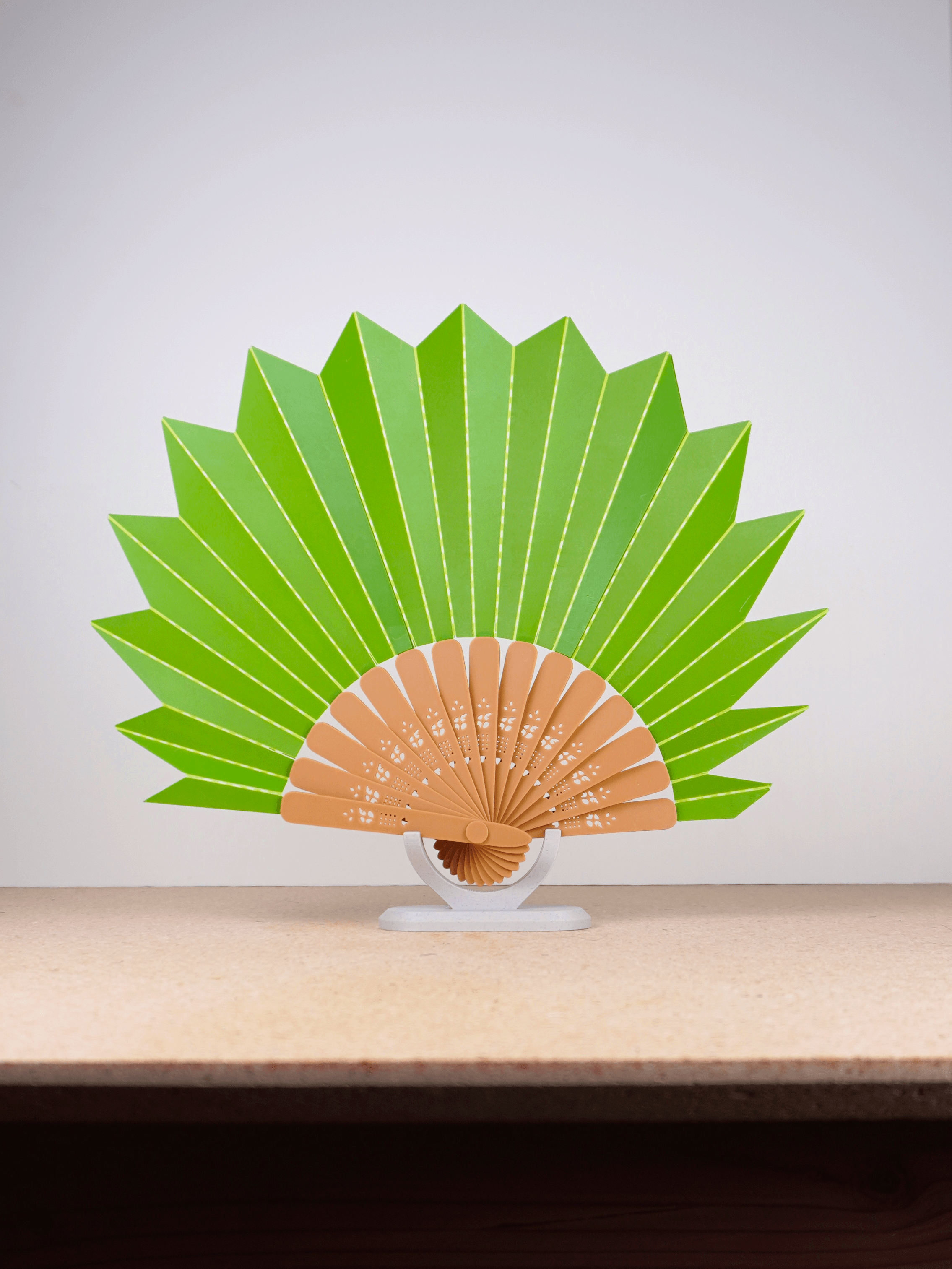

This palm fan is great for providing effective cooling on a hot day. It operates the same way as a paper fan and can be folded and unfolded with ease. It's designed to fit on a minimum build plate area of 210mm x220mm without supports or brims.

This model is designed for right handed operation. For left handed operation you will need to mirror each of the blade stl's. For assembly, you'll still fold from the right side of the blades, ignoring the number 1 which will end up on the left side. Please read the attached PDF documentation for more information.

Filament used:

Polymaker PLA Jungle Green Polymaker PLA PRO Army Beige

Multicolor and single color printing is supported with this model.

Please read the attached documentation for assembly instructions.

The following settings are contained within the 3mf file. You may be able to speed things up but I recommend starting here:

0.4mm Nozzle

Quality

(LAYER HEIGHT SETTINGS ARE CRITICAL)

Layer Height: 0.2mm Initial Layer Height: 0.1mm Default (Layer Width): 0.42mm Initial Layer Width: 0.42mm Top Surface: 0.39mm Seam Position: Back Elephant Foot Compensation: 0.15mm Wall Generator: Arachne Speed

Initial Layer: 40mm/s Initial Layer Infill: 60mm/s Internal Solid Infill: 60mm/s Top Surface: 40mm/s Ironing

(Recommended for the blades but optional for the handles. I found the handles look better without ironing but may require some light sanding if no ironing is used. Using the provided printing speeds may eliminate the need for sanding and or ironing.)

Ironing Type: Top Surfaces Ironing Pattern: Rectilinear Ironing Inset: 0.55mm Ironing Direction: 90 deg
