15mm Replacement Jaw Cover for Stanley Max Steel Multi-Angle Vise.

OpenSCAD files provided for customization.

Needs: • rubber or foam Optional: • magnets (5x2 round)

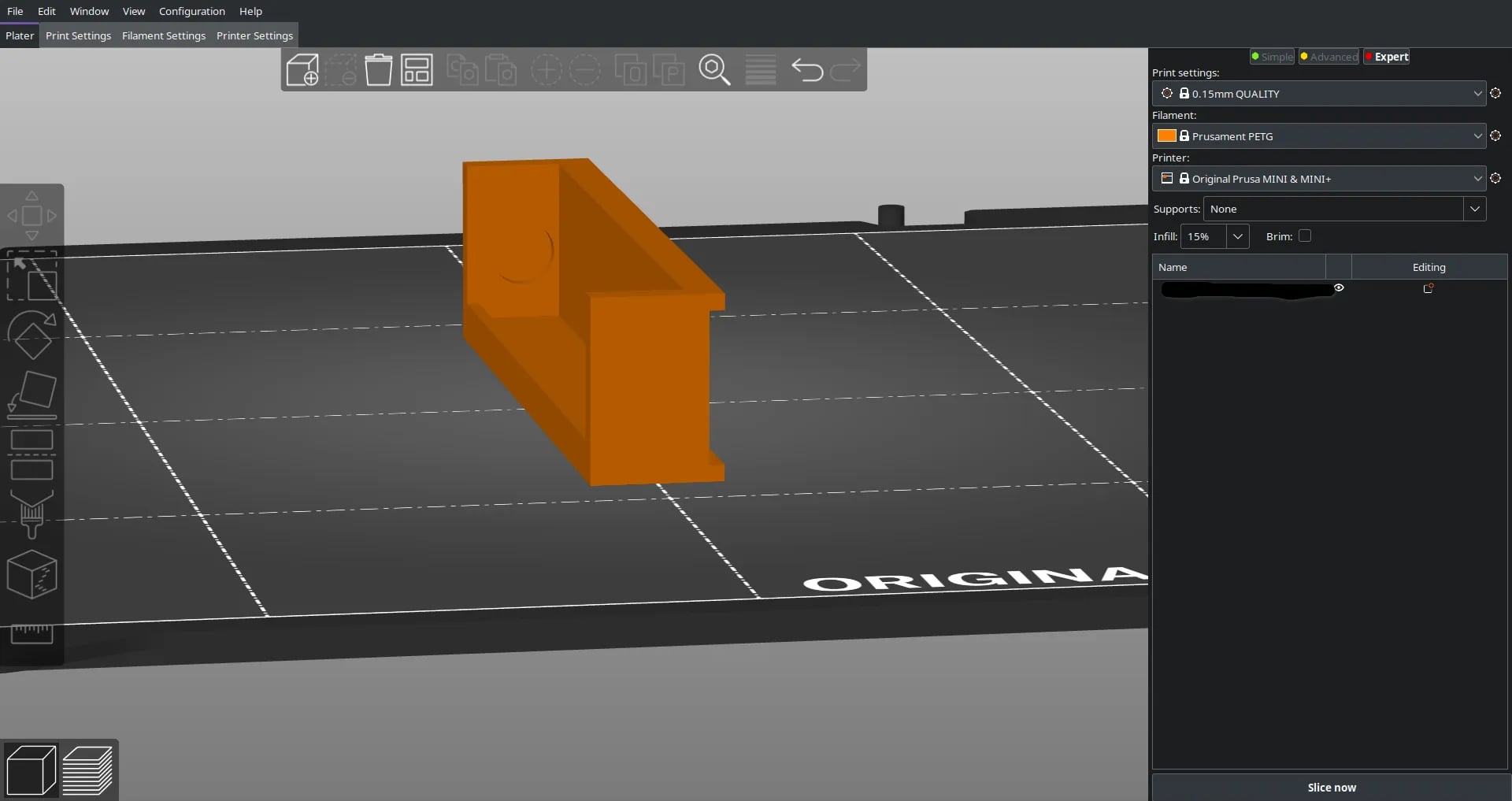

To Print (suggestions only, see photos):

1. Place on side
2. Rotate 45 degrees
3. Cut in half, using dovetail, and 90 degree flap angle
4. Print, glue together

Once print is complete:

1. Cut and glue some rubber or foam to fit the front of the cover (around 76mm x 15mm x 3mm)
2. (optional, helps to hold the cover on) Glue some magnets (5mm x 2mm, round) into the inner insets
