Pokémon Cards Case (Trapped Magnets Lock)

Subscribe for access starting at $20 USD
Get access to this model and 47+ more

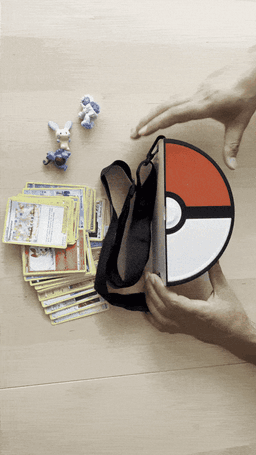

A Pokémon Cards Case with a trapped magnetic lock 🤩 📌Case can hold up to 265 Cards and has spaces for small toys!

Print Settings: 0.3MM Layer Height, 20% Infill, No-Brim (Or Raft), No Support. Any material of your choice. Colors to follow the pictures attached. COMMERCIAL PARTS REQUIRED : 10MM Diameter, 3MM Thick is required (QTY X8).

📌Magnet Trapping Notes :

  1. Insert a stop in the G-Code just before the Magnetic Trap ends (before the start of the trapping layer)
  2. For CASE Part ONLY : Add some glue inside the holes, then insert the magnets (This is required to ensure they magnets don't fly and latch to each other or to the nozzle body later)
  3. Resume Print
  • Note : for COVER Part step 2 is not needed, as the magnets latch to the bed and do not require gluing in this case
