Parametric Multiboard Hooked Pegs (Bolt-Locked and Push-Fit)
26 downloads · 2 years ago · **This is the Push-Fit version. Bolt-Locked version can be found here: [https://thangs.com/designer/
This model is restricted by licensing terms.
View license.
This is the Push-Fit version. Bolt-Locked version can be found here: https://thangs.com/designer/dizuane/3d-model/Multiboard%20Hooked%20Pegs%20%28Bolt-Locked%20and%20Push-Fit%29-1218756

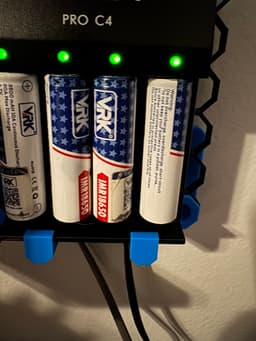

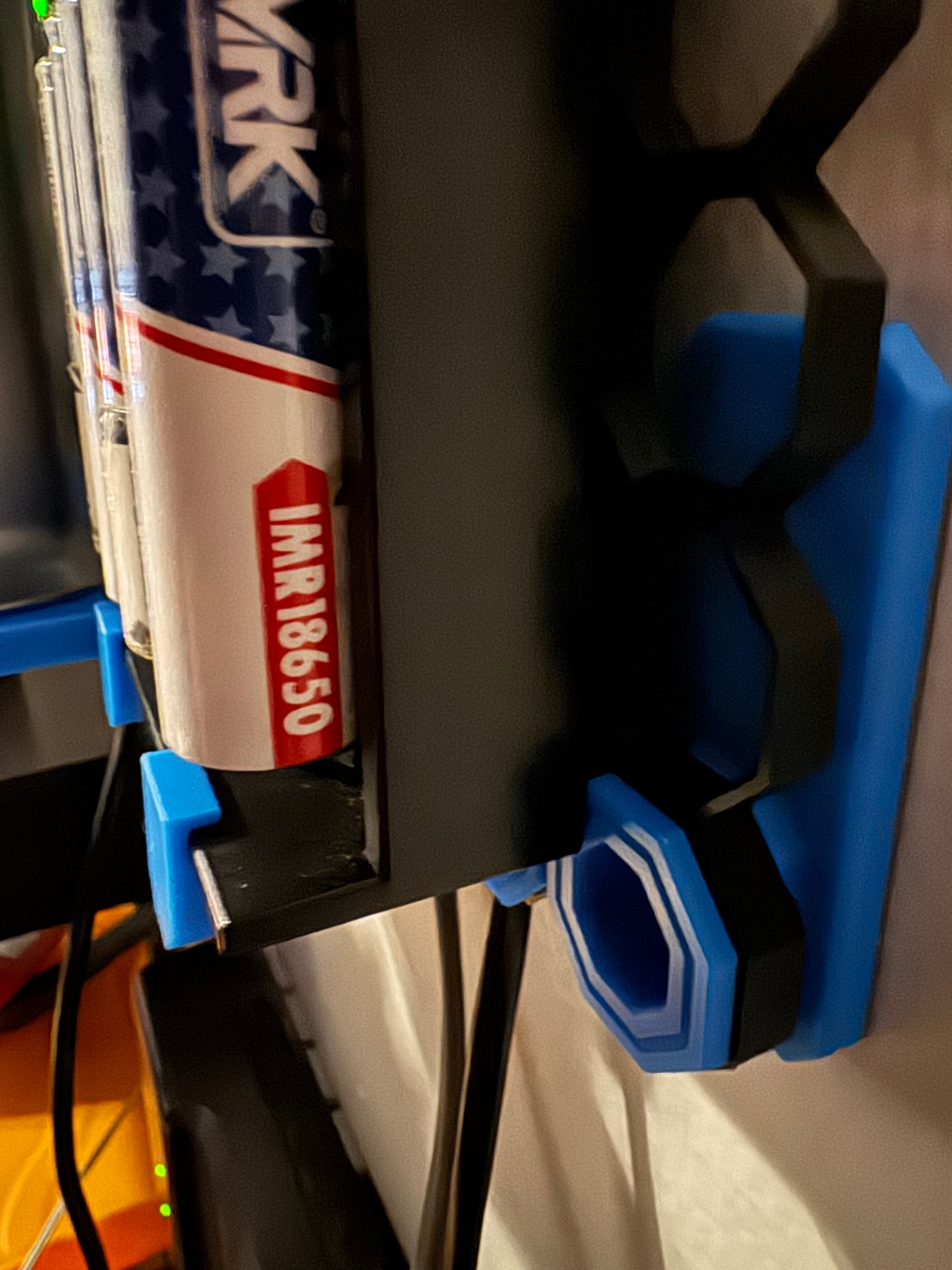

Multiboard/Multipoint “hooked” pegs. Used as a hooked platform to hold items to the board. Images show variables and default values. Both push-fit and bolt-locked available.
Credits to Jonathan (YouTube: @Keep-Making, @multiboard_io) for creating multiboard/multibin/multipoint.
Made with OnShape. OnShape parametric (variable) public document can be found here: Multiboard - Hooked Peg.
Parametric Multiboard Hooked Pegs (Bolt-Locked and Push-Fit)
26 downloads · 2 years ago in and
This model is restricted by licensing terms.
View license.
Parametric Multiboard Hooked Pegs (Bolt-Locked and Push-Fit)
20x7.5 mm Hook (Bolt-Locked Insert)

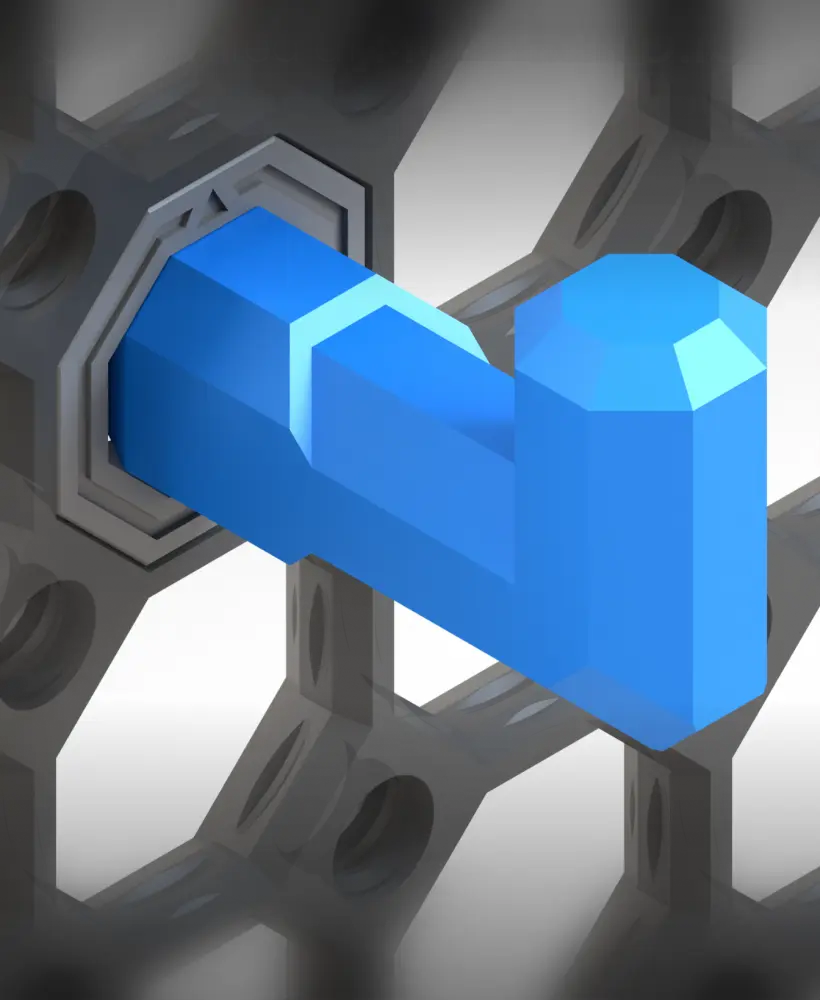

25x17.5 mm - Hook (Bolt-Locked Insert)
