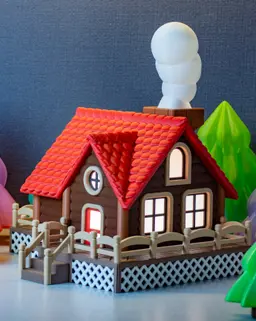

Cozy Cabin - No AMS (or similar system) required
UPDATE December 5, 2024 Missing window has been added. I am so sorry I missed that! It is also included in the windows.3mf and windows.stl file
This model makes use of Bambu Lab's Lamp Kit, but should accommodate any light source you have available to you
If anything could ever make you wish you could shrink down and live in a small house, this certainly would!
Light up your home with this Cozy Cabin Lamp decor!
Invite your neighbors over to look at it so they can know you're better than them! (j/k, don't do that)
A tolerance test is included so you can gauge how well tuned your printer is before starting on this model.
Assembly Instructions: Refer to the attached guide for assembly You can also refer to this video
Printing Instructions: Several components of this cabin utilize the "color swap" technique to mimic the capabilities of a multi-color printer. Anyone with a printer with pause capabilities can do color swaps.
There are 3mf files included that were created from Bambu Slicer that already have the settings below applied.
Roof:
- Layer Height: 0.2mm
- Supports: Tree/Organic supports
Cabin:
- Layer Height: 0.2mm
- Supports: Tree/Organic supports
Chimney Smoke: (This will make it so your smoke glows with the rest of the cabin)
- Layer Height: 0.2mm
- Wall generator: Arachne
- Bottom shell layers: 0
- Infill density: 0%
- Wall loops: 1
- Brim: Outer brim
- Brim width: 15mm
- Brim object gap: 0.1mm
Windows:
- Layer Height: 0.1mm
- First Layer Height: 0.1mm
- Pause at Layer 3 for color swap
- Pause at Layer 21 for color swap
Side Door:
- Layer Height: 0.1mm
- First Layer Height: 0.1mm
- Pause at Layer 3 for color swap
- Pause at Layer 31 for color swap
Front Door:
- Layer Height: 0.2mm
- Pause at Layer 29 for color swap
Porch Lattices:
- Layer height: 0.2mm
- Pause at Layer 3 for color swap
Everything else:
- Layer Height: 0.2mm
- Supports: No
Don't be afraid to give me feedback if you feel something can be improved!
Feel free to join my discord for additional support, questions, or suggestions!
Cozy Cabin - No AMS (or similar system) required
Lamp 003 Base.stl
Cup 004 - Spiral Ribbed Desk Organizer / Modern Vase / Pencil Cup
Cup 003 - Chiseled Organic Vase / Pencil Holder
Glowing Castle Lamp & Tabletop Fortress
Birdhouse 002 - Mid-Century Modern Birdhouse & Succulent Planter
Carousel - Motorized merry go round
Bird House 001 - No AMS or other multi-color printer required
Floppy Stroopwafel
Dragon Egg
Twisty Egg Lamp
Dragon Egg Lamp
Egg Lamp 2.0
Vase 004
Cup 002
Bowl 003
Floppy Guitar Fish
Lamp 002
Vase 003
Flower Pen
did your files have the half window on top of the door? i seem to be missing it.
The window should now be included in the files when you download them. I apologize for this blunder. It's included in the windows.stl and windows.3mf and has even been uploaded separately.
awesome, thanks, I'll be posting mine as soon I'm finished. Nice model.
Thanks! Again, sorry about the window thing. I'm so embarrassed about it
nothing to be embarrassed about. you made a great model and thanks again.

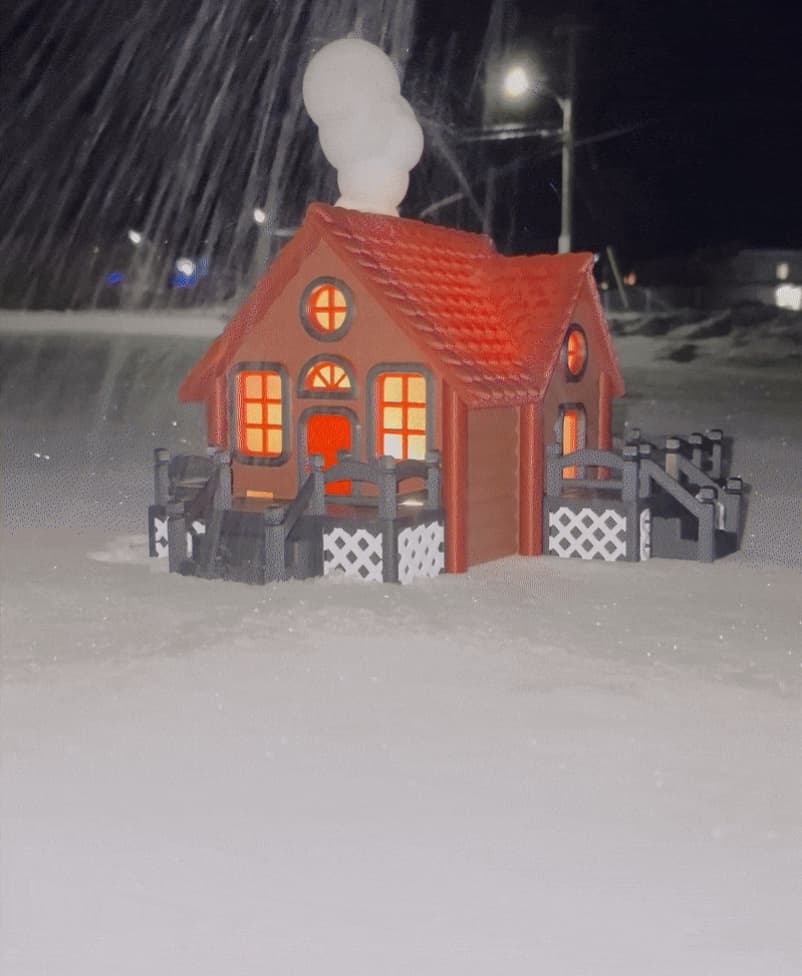

YOU MADE IT SNOWWWWW! Awesome gif!
