Grid Planter

2K downloads · 3 years ago · It was highly requested to release the files for this one so here it is! I've included both sizes -

This model is restricted by licensing terms.

View license.

Description

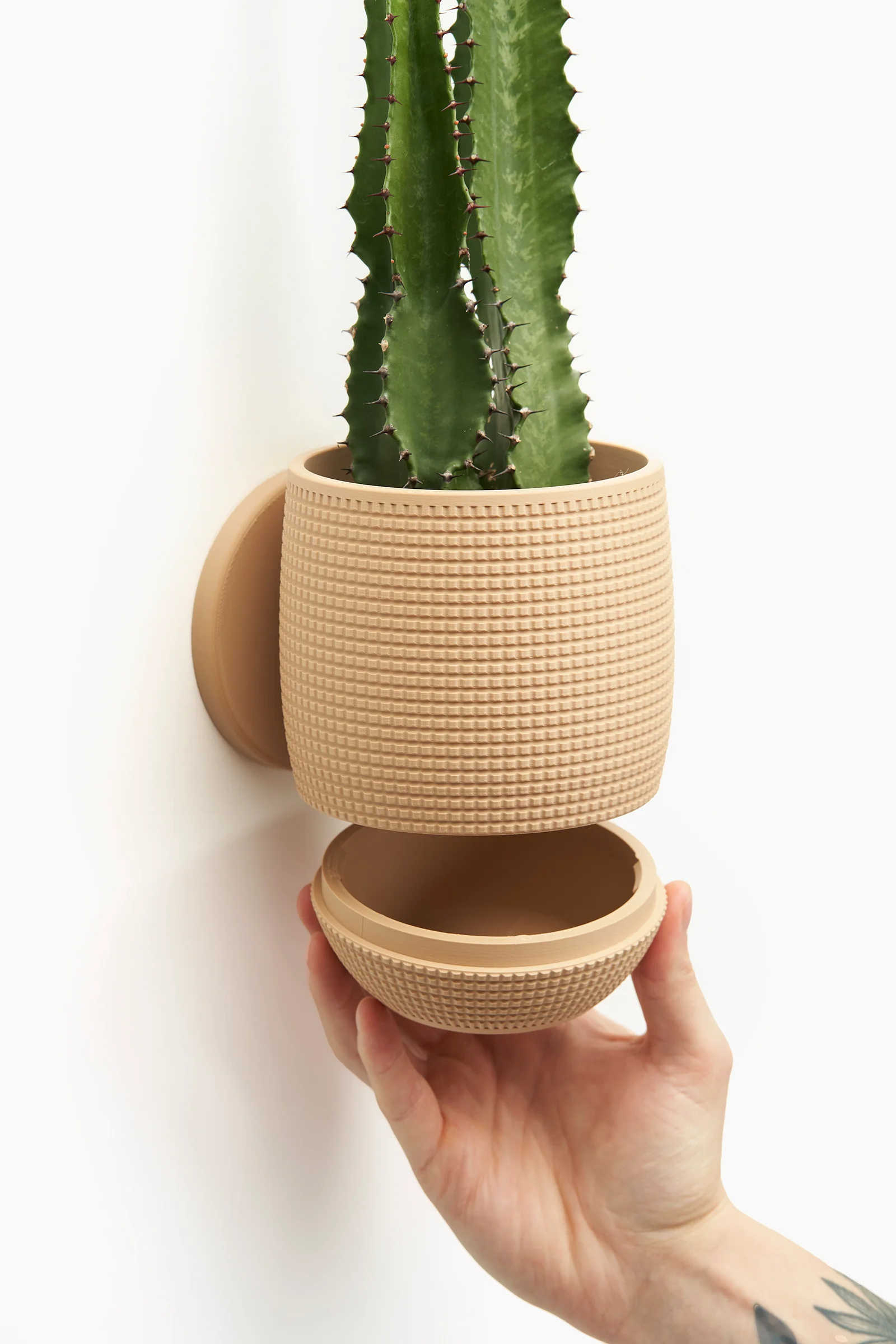

It was highly requested to release the files for this one so here it is! I've included both sizes - 2.75" and 4.5". I've also included a tabletop version in both sizes that does not have the sliding dovetail.

You'll also notice a modified version of the 2.75" command strip mount. It fits the command strips better and leaves no question as to which way you should attach it.

Supports None needed!

Scaling I wouldn't recommend scaling this one since it perfectly fits the command strips and the screw holes are designed specifically for #10-12 x 1-1/4 in anchors and screws.

Orientation The planter and tray should have their bottoms on the build plate. All mounts should have the sliding dovetail facing up.

Print Settings .2mm layer height 15% grid infill 2 walls

Filament & Hardware Filament I used for this print: Overture Matte Light Brown PLA & Polymaker Matte Marble PLA Command Medium Picture Hanging Strips Hardware: #10-12 x 1-1/4 in screws

Filament and hardware/non 3D printed items for this model can be found on my Amazon Storefront, linked here: https://hendricks.design/links/

Tags:

Community Makes (1)

Hi Brian! I printed this model and everything went well but I just have a question, hoping you can help me, when I try to assemble the tray, it doesn't fit into the planter I had to sand the pieces to assemble them. Do you think I need to change any parameters on my slicer? Is there anything that could be done the wrong way?

Community Makes (1)

Discussions

oscaredujim932 years ago

Hi Brian! I printed this model and everything went well but I just have a question, hoping you can help me, when I try to assemble the tray, it doesn't fit into the planter I had to sand the pieces to assemble them. Do you think I need to change any parameters on my slicer? Is there anything that could be done the wrong way?

cristian.valverde32 years ago

I'm having the same issue; one piece doesn't fit with the other. I’ve tried modifying a few things, but I still can’t make it work. Did you find a solution?

cristian.valverde32 years ago

Thank you in advance!

kev21814453 years ago

Do you allow Patreon/thangs members to use your product photos? I know some creators allow it and some don’t.

Vietfarmer212 years ago

i was gonna ask the same bc i dont take great photo n dont have time time to print all 20 design for photo right now lol

LoftedGoods2 years ago

I typically encourage people to take their own photos if they can. Having unique photos makes you stand out and gives the buyer a real idea of what they're getting.
