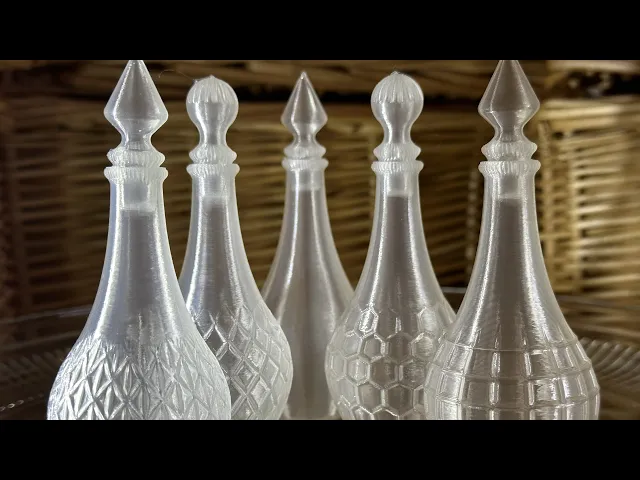

Spiralized Potion Bottles video thumbnail

Spiralized Potion Bottles

2.3K downloads · 2 years ago · These potion bottles are designed to print in “spiralized” mode to maximize translucency. Download i

This model is restricted by licensing terms.

View license.

Description

These potion bottles are designed to print in “spiralized” mode to maximize translucency. Download includes five style of potion bottles and two styles of interchangeable stoppers.

See here for video: https://youtu.be/VfkuHpC554M

Be sure to print the bottles and stoppers in spiralized mode with a bottom floor.

The fit of the stopper in the neck of the bottle depends on the size of nozzle that you are using. This design is optimized for a 0.5mm nozzle. If you are printing with a smaller nozzle, you may want to scale the stopper up slightly to ensure a snug fit.

When printed with good filament and printer, the “Diamond,” “Hex,” “Triangle,” and “Plain” bottles are watertight. The “Square” design is trickier to get watertight because of the overhangs.

The top rims of the bottles and middle rims of the stoppers have tiny radial slits that create a toolpath that traces back and forth over itself creating a stronger and more watertight surface than you would get otherwise.

Check out my different potion bottle designs: Lattice Patterns: https://than.gs/m/998542 Wrinkled: https://than.gs/m/1001807

See here for a similar test tube design: https://than.gs/m/988494

Looking for potion bottle designed for resin printing? Try these: https://than.gs/m/1009906

Tags:

Community Makes (7)

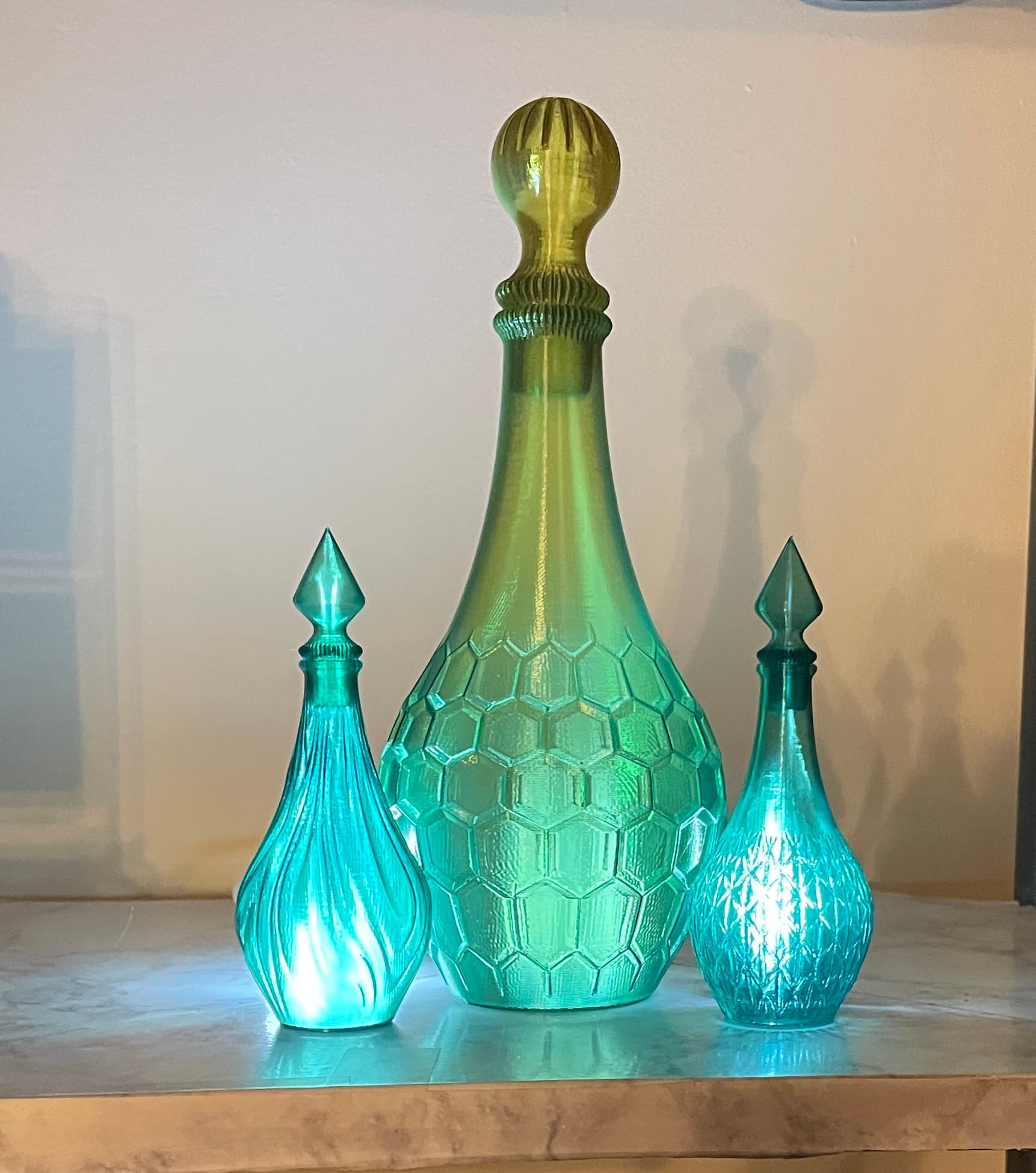

Great print, One is enlarged to 200% lid 215% still a little wobbly on the lid reprinting at 220% printed on Ender 3v3 ke: inland transparent rainbow 2 filament, Printed .2mm with spiralized mode Thank you for this print it is fantastic!

Made on Elegoo Centauri Carbon, the Thangs list of printers needs serious update, it has only Neptune printers!

I used Geeetech Transparent PLA, it is nice.

I printed a first bottle in some opaque PLA, but the bottom was going away, so I printed these with 3 bottom layers. But they are still leaking, which isn't important for me.

I made a first version of the bottle caps with 100 % infill, hoping for better transparency, but not much. I tried vase mode too (the other pic), it worked better. First attempt with opaque PLA didn't finished, I thought it was because of vase mode, but no, the base was just too flimsy. Printed them at given size, even with my 0.4 nozzle, they fit perfectly.

I really like these designs.

Filament: BambuLab PETG Translucent Clear (32101)

The sweet spot for me on the stoppers was 115%

I had to size up my stoppers to 118.5% to get them to fit snugly inside the top of the bottle, and be water-tight. This took several print iterations, so trust me - I did the work! Not just guessing.. Printed at 0.08 layer height to become water-tight.

Made these in petg with different PLA silk stoppers. Used a .4mm nozzle, so scaled the stoppers up to 110% and they fit perfectly (tight). Thanks for these, they're so great!

Polymaker Translucent Green PETG
Printed on my Sovol SV06

Community Makes (7)

Discussions

cyanidesugar2 years ago

Amazing model!! Printed in PLA

3printcoca1 month ago

Great print, One is enlarged to 200% lid 215% still a little wobbly on the lid reprinting at 220% printed on Ender 3v3 ke: inland transparent rainbow 2 filament, Printed .2mm with spiralized mode Thank you for this print it is fantastic!

PrinterCreality Ender 3 V3 KE

MaterialPLA

Layer height0.2 mm

Infill density0 %

SupportsNone

BlackRose672 years ago

Polymaker Translucent Green PETG Printed on my Sovol SV06

philho.goo3 months ago

Made on Elegoo Centauri Carbon, the Thangs list of printers needs serious update, it has only Neptune printers! I used Geeetech Transparent PLA, it is nice. I printed a first bottle in some opaque PLA, but the bottom was going away, so I printed these with 3 bottom layers. But they are still leaking, which isn't important for me. I made a first version of the bottle caps with 100 % infill, hoping for better transparency, but not much. I tried vase mode too (the other pic), it worked better. First attempt with opaque PLA didn't finished, I thought it was because of vase mode, but no, the base was just too flimsy. Printed them at given size, even with my 0.4 nozzle, they fit perfectly. I really like these designs.

MaterialPLA

Layer height0.28 mm

Infill density0 %

SupportsNone

BrimNo

nikkolaus1 year ago

I had to size up my stoppers to 118.5% to get them to fit snugly inside the top of the bottle, and be water-tight. This took several print iterations, so trust me - I did the work! Not just guessing.. Printed at 0.08 layer height to become water-tight.

PrinterBambu Lab P1S

MaterialPLA

Layer height0.08 mm

SupportsNone

BrimYes

sarahlistens2k4 months ago

Filament: BambuLab PETG Translucent Clear (32101) The sweet spot for me on the stoppers was 115%

PrinterBambu Lab P1S

MaterialPETG

Layer height0.2 mm

Infill density0 %

SupportsNone

alexzorn2 years ago

Made these in petg with different PLA silk stoppers. Used a .4mm nozzle, so scaled the stoppers up to 110% and they fit perfectly (tight). Thanks for these, they're so great!

PrinterBambu Lab P1S

MaterialPETG

eric.piech5 months ago

I feel stupid for asking because it must be something simple I'm missing. How do you print the so they are hollow like an actual bottle? I've tried twice and both times the print with the top sealed.

philho.goo3 months ago

Perhaps you missed the essential setting for this model: print in "spiralized" mode. This means the nozzle will make a continuous move around the bottle, meaning there is only one very thin wall. In Orca Slicer and derivatives, it is called "Vase mode", or more exactly, in Others > Special mode, Spiral vase. When you check this option, Orca propose to set related settings, like this "one wall only" and some others.

Alternatively, you can put 0 in the Top shell layers setting.
