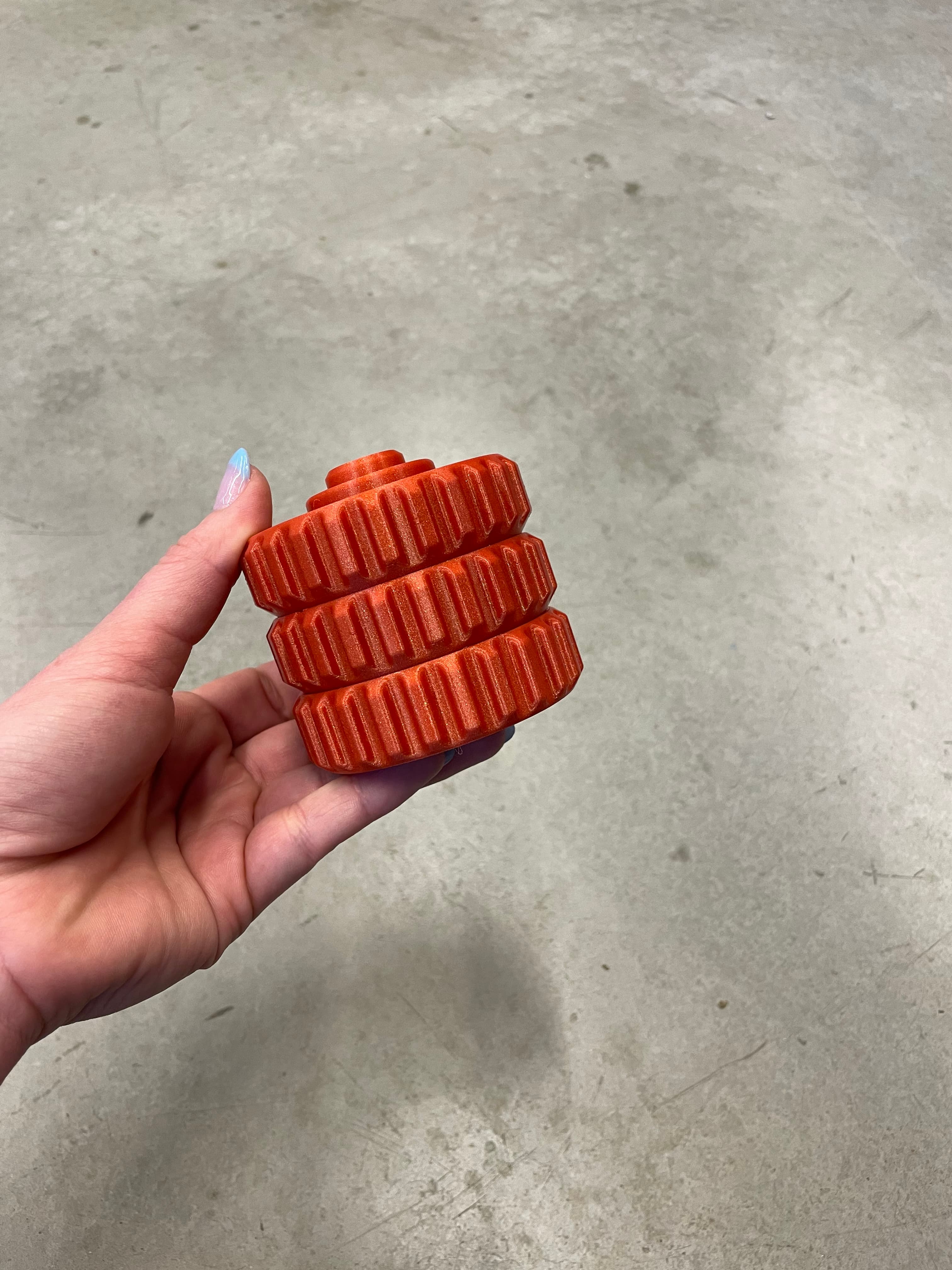

The Impossible Planetary Gear Fidget
This is a mix of the Impossible Gear Fidget and the Planetary Gear Demo. This fidget uses planetary gears, it’s a great way to better understand how they work.
Demonstration If you hold the carrier(middle gear) and turn the sun(top gear), you get at 3:1 speed reduction. This ratio is a result of the 36 teeth on the ring gear divided by the 12 teeth on planet gears. If you hold the ring(bottom gear) and turn the sun(top gear), you get a 1:4 speed reduction on the carrier(middle gear). The is because the much larger diameter ring gear is moving faster than the smaller sun gear. The equation works out to be the 36 teeth of the ring gear divided by the 12 teeth of the planet gear plus 1. If you hold the sun gear and spin the ring gear and the carrier, there is no reduction and it acts like a bearing
No supports!
Printed on the Mulcore
Support and Licensing If you would like to help support more free models please consider joining my Thangs Membership To get permission to sell physical copies of my models by joining my Patreon
The Impossible Planetary Gear Fidget
Mini Fidget Gear
Sensory Stim Gear Roller Fidget (Double Stacked)
Impossible Pass Helix 5 Pack
Yin Yang Annoying Box – 84-Screw Puzzle Gift Box
Articulated Squid Toy - Flexi Desk Buddy
Switch Click
Articulated Lying Cat Fidget Toy – Cute Desk Companion
Astronaut Helmet Cake Pop Mold, Space & Cosmic Helmet Design, 2-Piece Set PRODUCT_1211
Titan cheetah - Figure Toy & Keychain Articulated-free support
Tiger Wiggle Keyring
Octopus Wiggle Keyring
ModBot Accessory Pack 2 - Workshop & Tools Bundle
ModBots – Series 1 Starter Pack
Flower Coaster Set
M3D - Love Bug
Odon the Obsidian Lindwyrm
.png&w=3840&q=75)
Bendy Beast Print in Place Articulated Dragon
.gif&w=3840&q=75)
Articulated Unicorn Dragon Keychain Print-in-Place
Dress Up Porch Goose for Goose Gear
Worked well at .15mm height, if you have issues with it sticking and breaking the gears off their axis, make sure the axis isn't stuck to the inside of the 4 outer gears. First print I did had the axis fused to the gears because I was over extruding and printing in too high of layer height. Now to see if I can scale it down without making a blob!
The mini version is on my list....
I found if the gears are stuck, instead of torqueing on them, I push on them axially.
Prusa MK3S+ 0.15 mm layer height, 13.5 hours! turned out pretty nice.
Sweet! 🤘
Awesome model thank you. I did it full size on my P1P in 3h30 @0.2mm and it was perfect. Just doing three more at 80% scale and 0.15mm in 8h10.
Nice! that is so fast. 🔥
Broke first try at 0.2mm layer height on ender 3 v2. Standard settings otherwise. all four planetary cogs broke off their axles on the first twist, didn't even force it that hard, An awesome model if you can get it to work though.
Where you using pure PLA? Not silk or matte.
whoa, my slicer is saying 11 hours and 59 minutes to print on my Ultimaker 3. How long has it taken others?
Mine finished in 4hrs and 48 minutes at 0.2mm layer height with a 0.4mm nozzle on my Ankermake M5 at 500mm/s, everything is working perfectly
9 hours at 0.2mm layer height on a 0.4mm nozzle on my Prusa MK3. Not sure where the recommended settings are from this author?
What are the little tabs printed between the gears at the first level for? Amazing model btw! Printing it at 0.12 layerheight for a whoping 18+ hours :P
They are a helper to keep the sun gear adhered to the bed, remove them after it prints.
Thank you , curious to see how my printer will print this .
have you tried other print in place parts? There are some smaller ones you could try first as a test print.
Can this be printed as is, or do i need to split it into parts?
EDIT: Never mind, i sliced it and saw the awesome engineering you've done! thanks for the model can't wait to print it!
P.S. I've just got my first 3D printer and i'm in awe! Keep up the good work, can't wait to see what else you come up with :)
Thanks! glad you like it, hope it prints well for you.
Hey, can I upload this amazing 3D model on my Printables page? I think it's so great that others should see it too!! All credits would go of course to you, and I would also link to your page.
Please do not repost my models. The license also states that reposting is not allowed.
