HOTO Compressed Air Capsule Gridfinity accessories tray

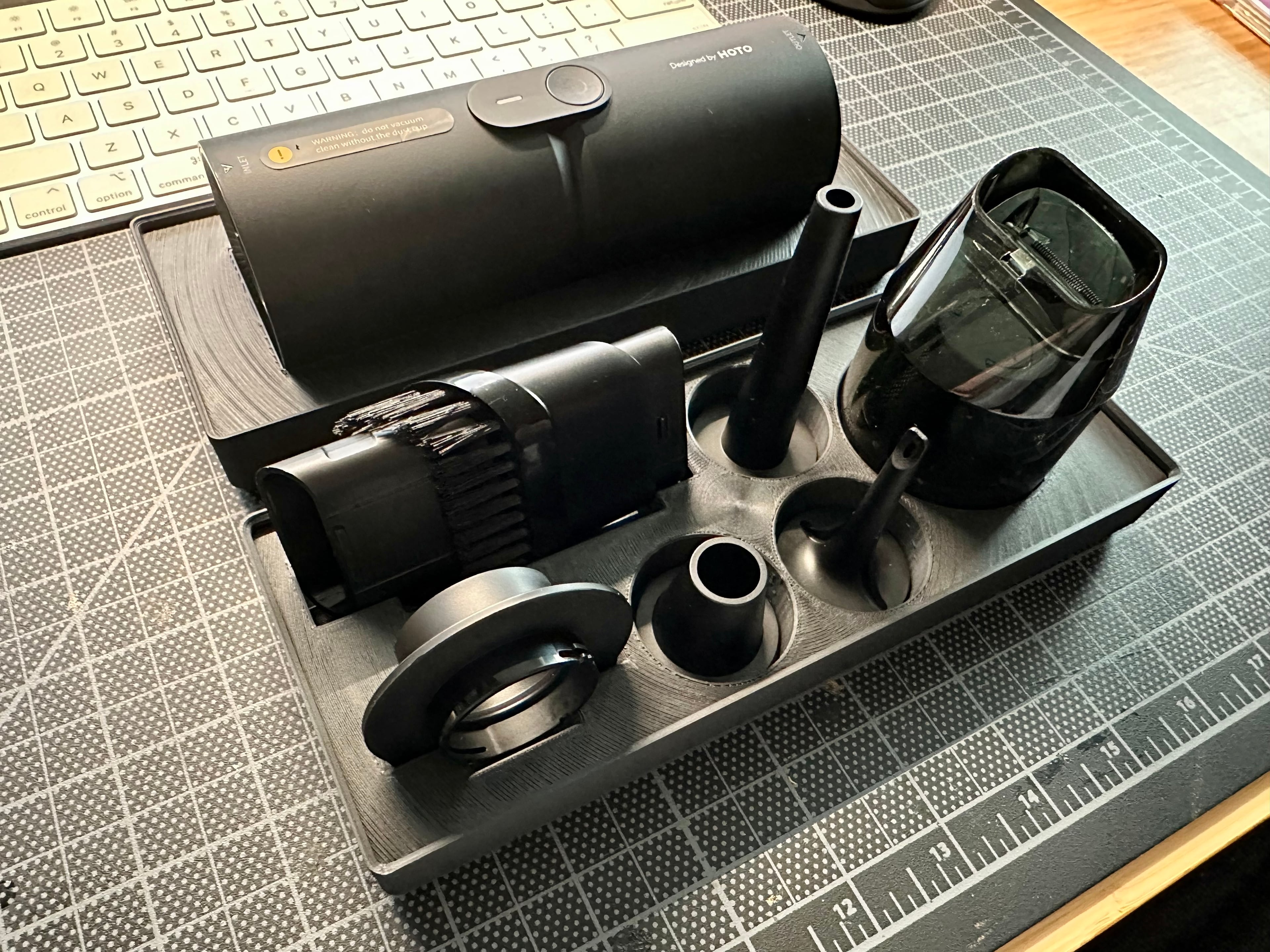

This mostly parametric tray was designed to complement AJ Briones' Gridfinity bin for the HOTO Compressed Air Capsule body. It holds all nozzles, the dust bin, and dust bin extension with brush.

Printed with PolyTerra Charcoal Black PLA in 2h45m using a 0.4mm nozzle, 12% gyroid infill, and a much too fine layer height for what it is.

Fair warning, this idea was where I decided to start learning Fusion360. I phoned it in a bit with the compartment for the dust bin extension. The .f3d file is attached for schooling me and/or tinkering. Constructive feedback is awesome/welcome.
