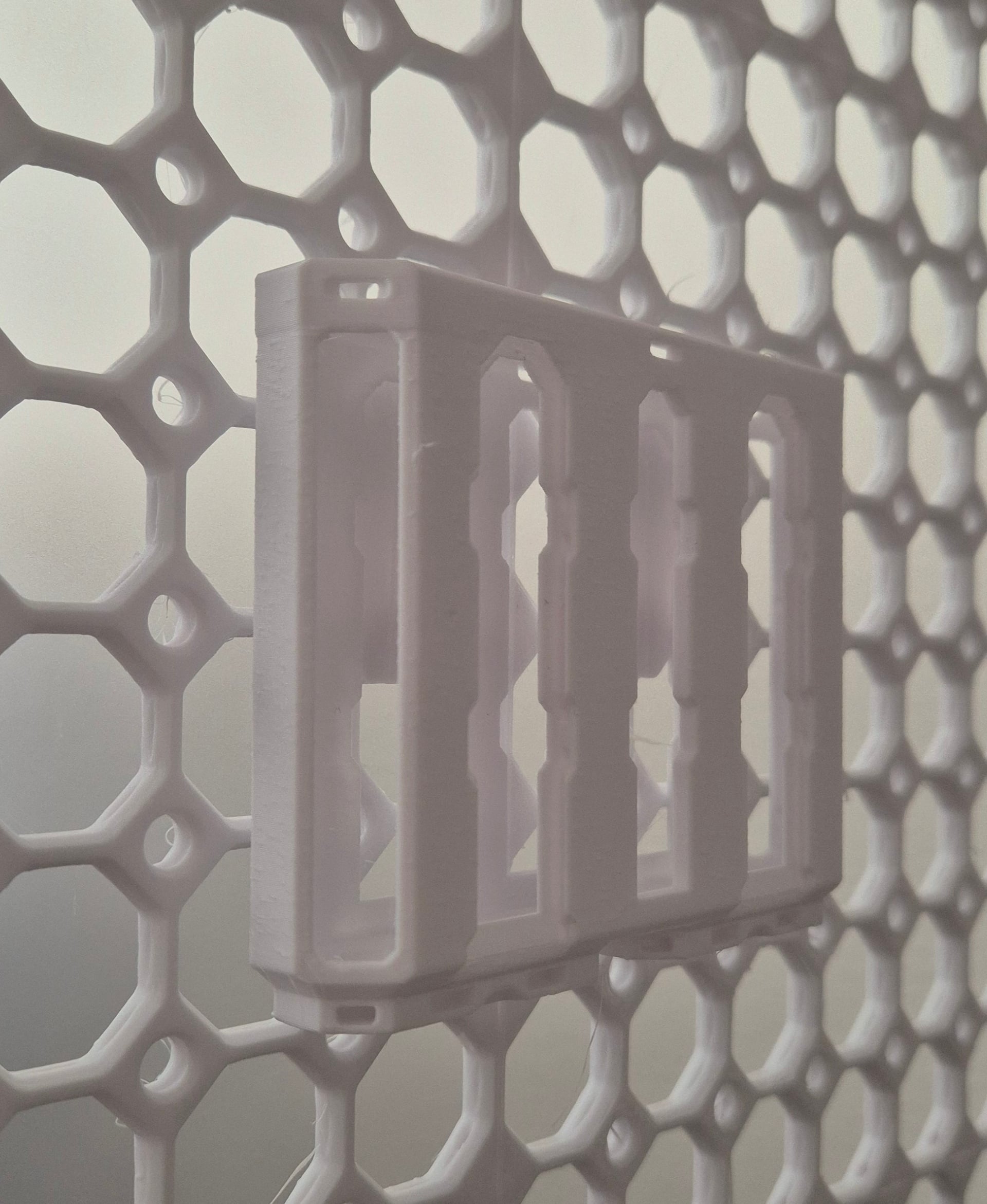

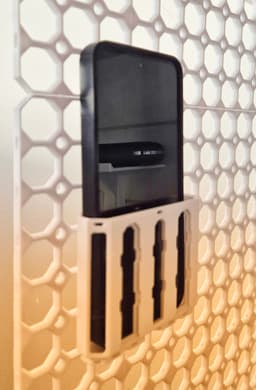

I designed this skeletonized and slimmed down version of the 2x1x1.5 CU - Topped Multipoint Rail - Multibin Shell to be a lightweight cellphone holder, so the width has been changed from 50 mm to 25 mm, which means the Multipoint slots on the bottom of the bin had to be removed, leaving just the Bolt Lock holes.

Bin Base:

• Multibin Shells can be placed on Multibin Panels (50 mm grids).
• They can also be placed on Base Plates , and further secured using Base Plate Bolt Lockers or 10x2 N52 Neodymium Disk Magnets.

”Topped” Multipoint Rail Walls:

• Use the Rail Walls to connect Multibin Shells to other Shells using Bin-To-Bin Rail Connectors or Rail Pop-Ins.
• Use the Rail Walls to Connect a Multibin Shell to a Tile by using Multipoints or Rail Pop-Ins.
• This particular Multibin Shell has “Topped” Rails - Use Topped Rail Shells if you aren’t going to extend the height of your Shells in the future. If not then use “Full Rail” Multibin Shells.

Pin Holes:

• Corner Pin Holes: Used for locking external attachments (like Multibin Extensions or Lids).

Dimensions:

This Multibin Shell is 2x0.5x1.5 cells (100 mm wide, 25 mm long, and 80 mm high). Stacking a 1.5 cell high Shell on another Shell will increase its height by 75 mm. The internal distance between walls is 94x22 mm. The total internal height is 74 mm (69 mm up to the top internal rim).

Learn more about Multibins at https://multiboard.io/knowledge-hub Printing Guidelines:

Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.

The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.
