Gear Ring Fidget

468 downloads · 1 year ago · Hey, This is my Gear Ring Fidget Toy. It is closely related to the Brain Gear. You need: 12 Gears:

This model is restricted by licensing terms.

View license.

Description

Hey, This is my Gear Ring Fidget Toy. It is closely related to the Brain Gear.

You need: 12 Gears: 6 Long Connectors 12 Connectors

Print Settings: Standard. Use what works best for your Filament and printer. No supports.

Assembly: I made a Video on how to put it together. https://youtu.be/W9daDsvilrk It's quite simple. Connect 2 Gear Pieces with the Connectors. The Flat sites lign up. Use the holes on those Flat sites to connect 2 pieces with 2 connectors. Do that to all gear pieces. You end up with 6 Gears. Those 6 gears are then connected to form a ring with the long connectors. Use the Pictures as guidance.

Files Included: All Gear Connector Long Connector If any of these are missing, please contact me and I will fix it.

Technical Data: The Gear Ring takes, around 140g of Filament and 7 hours to print.

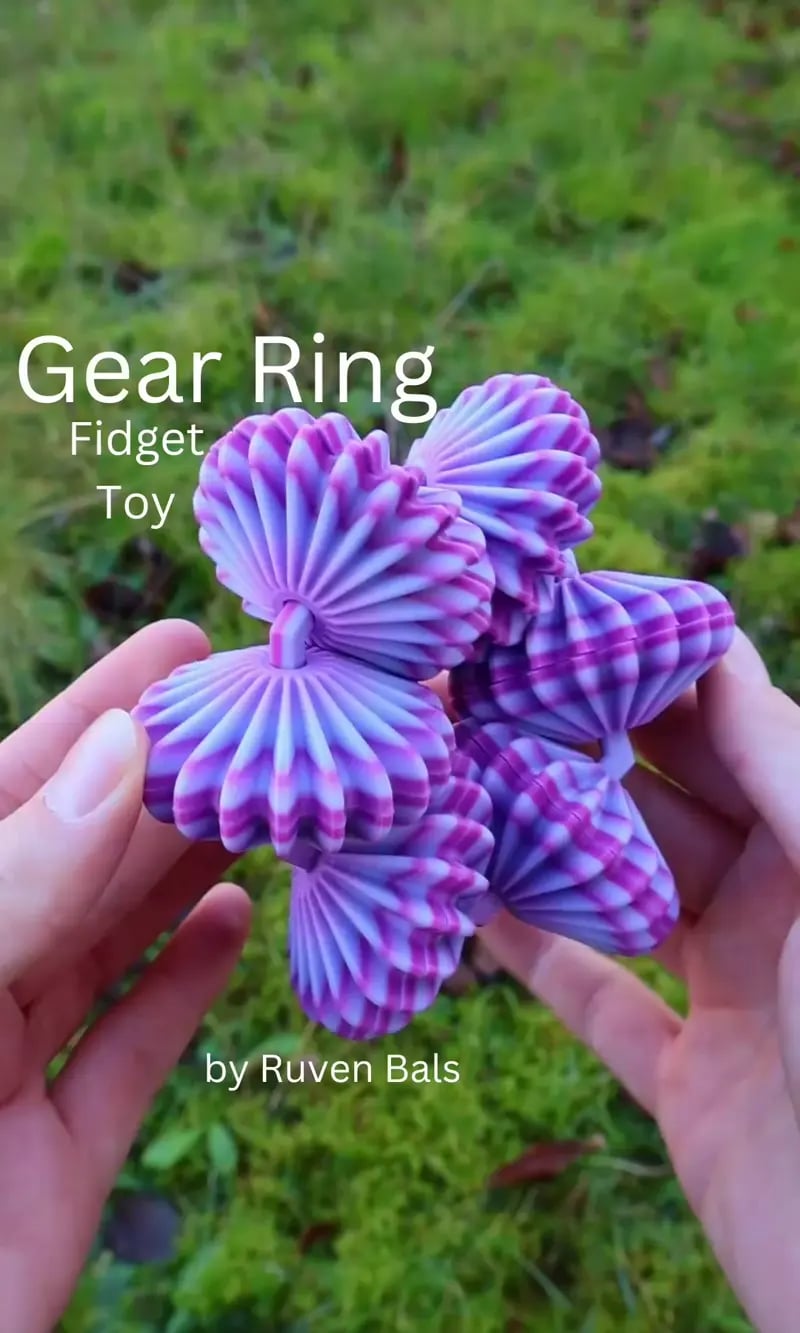

The Filament I used in the Pictures is: Protopasta Amesthyst Aria Multicolour.

Tags:

Community Makes (2)

Community Makes (2)

Discussions

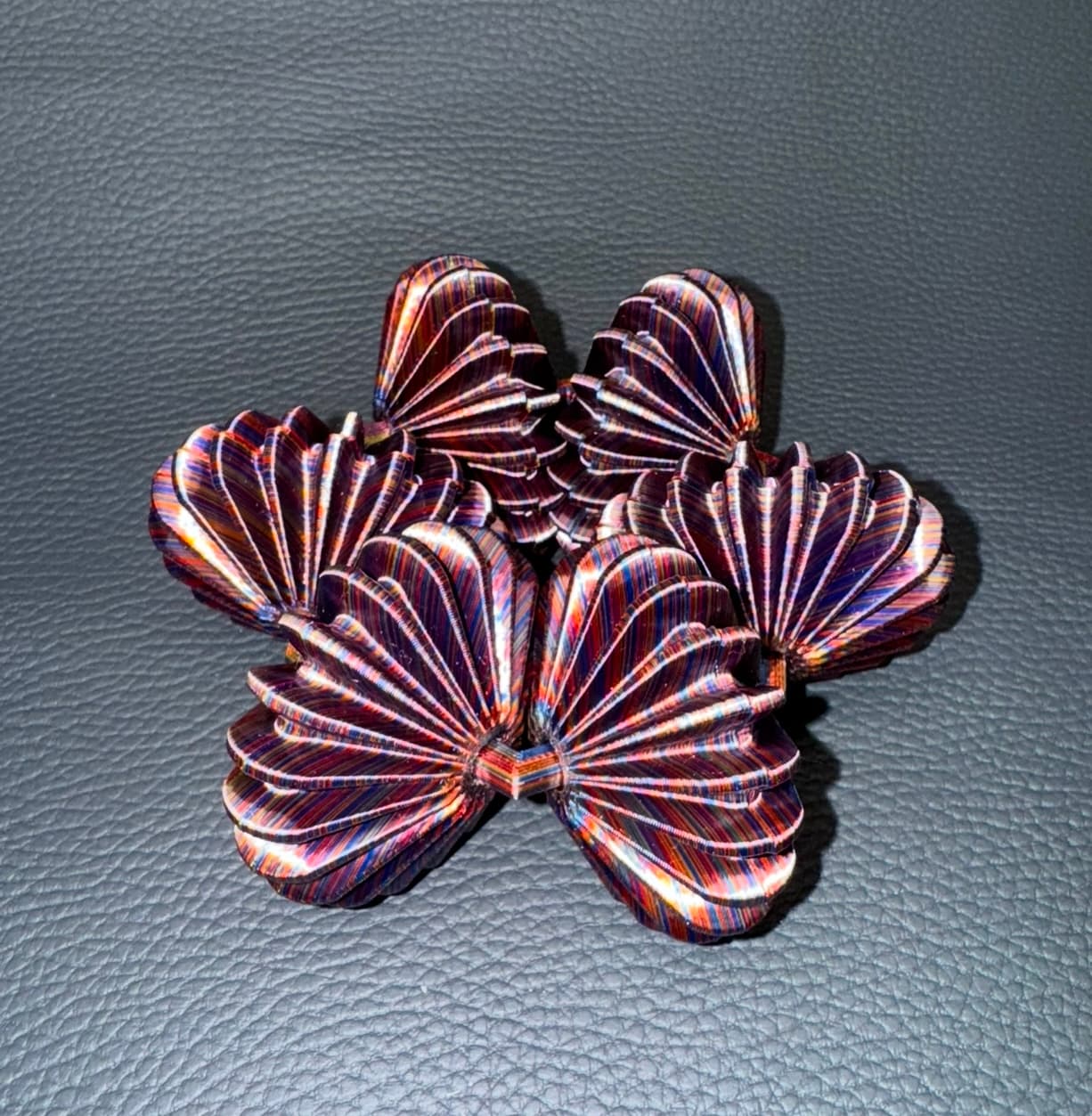

3D_PrintExplorer1 year ago

Ivy Rainbow Silk PLA

sem_1561 year ago

PrinterBambu Lab P1S

MaterialPLA

patrick.odoherty71 year ago

Hello. I just printed one in PLA and the long connectors are too loose and easily fall out/disconnect. I also found that the gear balls moved/twisted slightly when the 2 halves placed together. I used a little glue on each one so I could put it together for a test one. I don't know if its something I have done or if there is a way to tighten it up a little?

Thank You so much

Patrick

RuvenBals1 year ago

Hey, Try printing them in another filament or scale them up if they are too small.

3dwcustoms00011 year ago

I lost some connectors during printing but it wont let me print just connectors. Could you make the print so its not all one block, so you can just print connectors.

RuvenBals1 year ago

Hey, I just added the connectors. Sorry, I did include them originally, but thangs sometimes does not upload stuff properly. My bad, I should have double-checked.
