3x3 Board - Offset Snaps - Screw-On Mounting Pack

4.1K downloads · 2 years ago · This pack contains all the parts required to mount a 3x3 Board (9 Multiboard Tiles) onto a surface,

This model is restricted by licensing terms.

View license.

Description

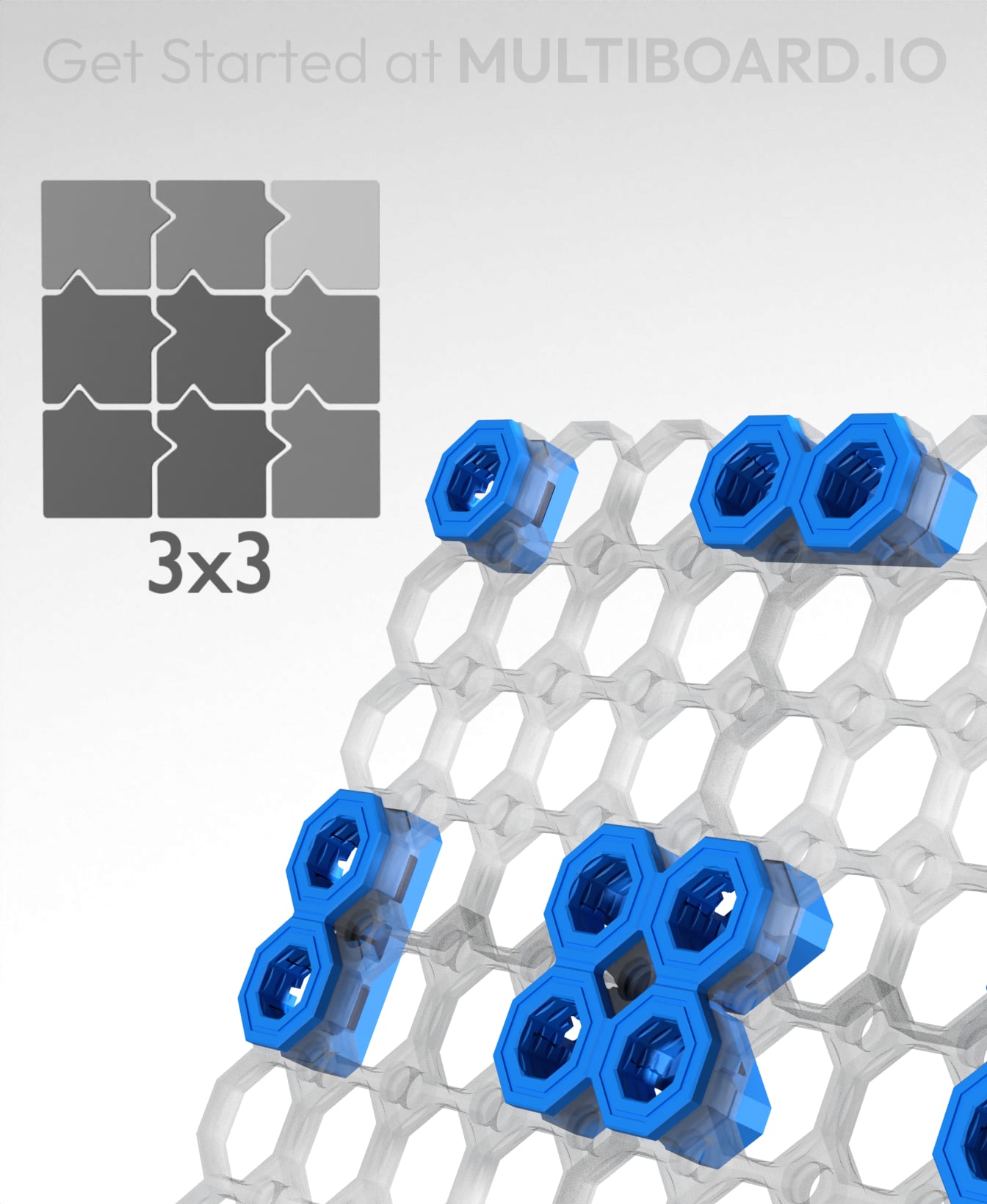

This pack contains all the parts required to mount a 3x3 Board (9 Multiboard Tiles) onto a surface, using "Offset Snaps - Screw-On Mounts" that screw into place and create a 6.25 mm gap between your Multiboard and the surface.

This pack does not include the Multiboard Tiles, get the Tiles needed to create a 3x3 Board here: https://link.Multiboard.io/3x3-board-stacks

Follow this video tutorial to put everything together.

Printing Guidelines:

Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and not supports. Apart from that, use your printers default settings.

The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.

For more information about printer settings, click here.

This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts, for creating the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io

Tags:

Discussions

blind.grey.wolf9 months ago

The issue is you can not find the correct threaded bolt to use these, I've tried everyu one and still have yet to find one to lock the panel onto the snaps.

ianpflockwood1 year ago

I am a bit confused i have mounted some tiles onto bear brick in my garage workshop and for some pegboard makes there does not seam to be enough depth to get the top hooks through the holes is 6.5mm deep enough for pegboard accessories? on this page https://www.multiboard.io/knowledge-hub/mounting-systems you are still recommending 8mm with an option of 15mm. I know you changed this a while ago but do i need to use 8mm for pegboard to work?

TekNullOG9 months ago

I haven't used 6.5mm yet but 8mm is supposed to be phased out. The 1.5mm difference shouldn't normally make much difference for pegboard accessories. I say this simply by observing the clearance on my older 8mm offsets.
