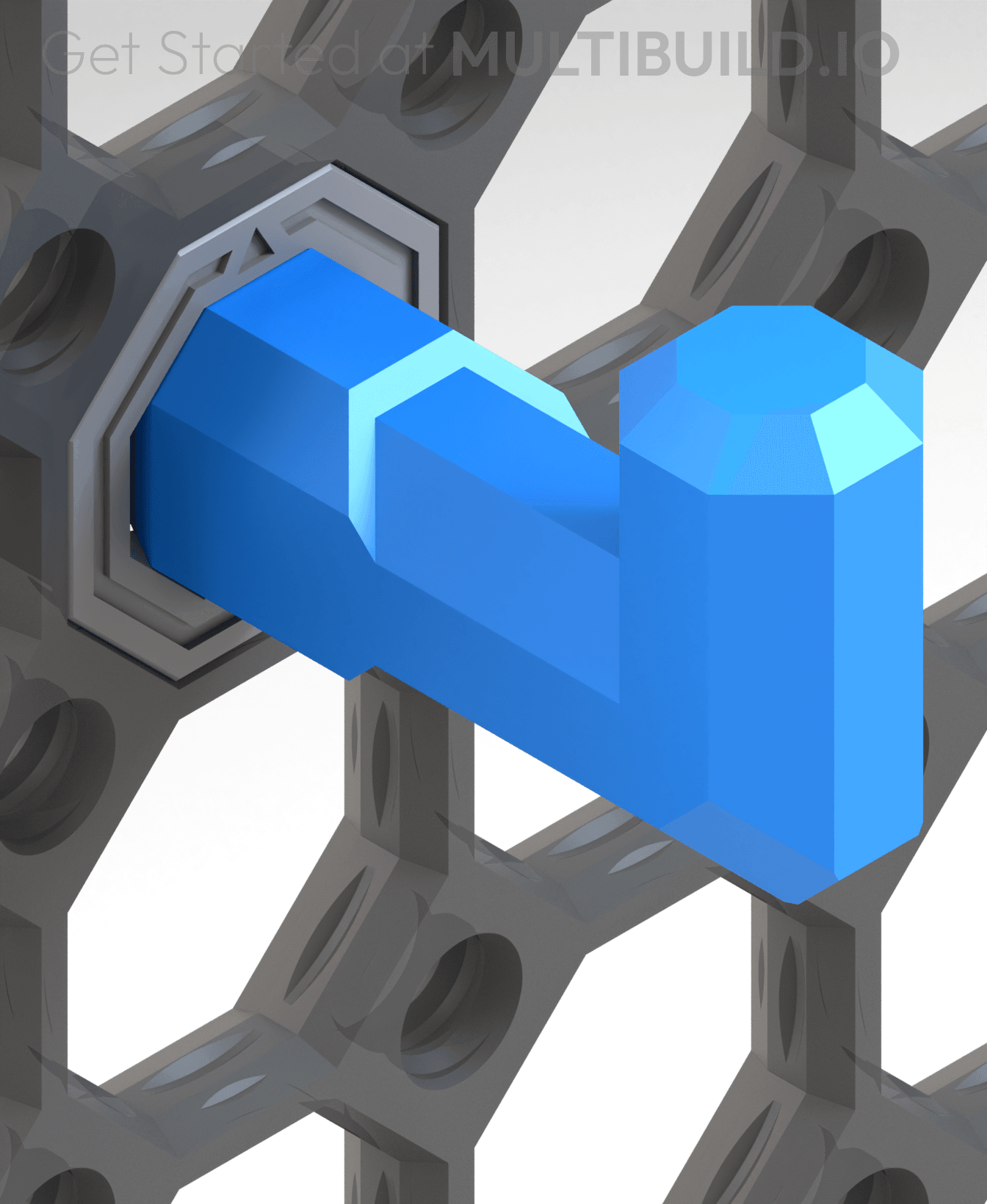

25x12.5 mm - Hook (Bolt-Locked Insert) 3d model

25x12.5 mm - Hook (Bolt-Locked Insert)

3.6K downloads · 2 years ago · This hook connects to a [Moderate Multiboard Snap](https://than.gs/m/1311034) or [Heavy Hook Snap](h

This model is restricted by licensing terms.

View license.

Description

This hook connects to a Moderate Multiboard Snap or Heavy Hook Snap and is secured using a Locking Bolt.

Keep in mind, Heavy Hook Snaps are stronger than Moderate Snaps but they don't work with flush mounted boards.

Printing Guidelines:

Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.

The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.

For more information about printer settings, click here.

This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts, for creating the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io

Tags:

Discussions

KmanProps2 years ago

These are great! Any chance of getting the 50mm bolt locked version with a hook? A little longer would be better, and with the bolt holding it in, it can handle it.

jimparker1181 year ago

cant get this to fit into the support and the bolt that was said required with this is way too small. This is just a mess of bits that dont work together. A real shame as it sounded exciting :(
