I designed this switch for a game I'm working on, and it turned out so satisfying that I made it into this standalone print. It's printed in several parts for easy customization and the internal flat spring creates an almost magnetic feel without the rare earth minerals!

Add color indicators and use it to track things, or just flick it for the fun of it.

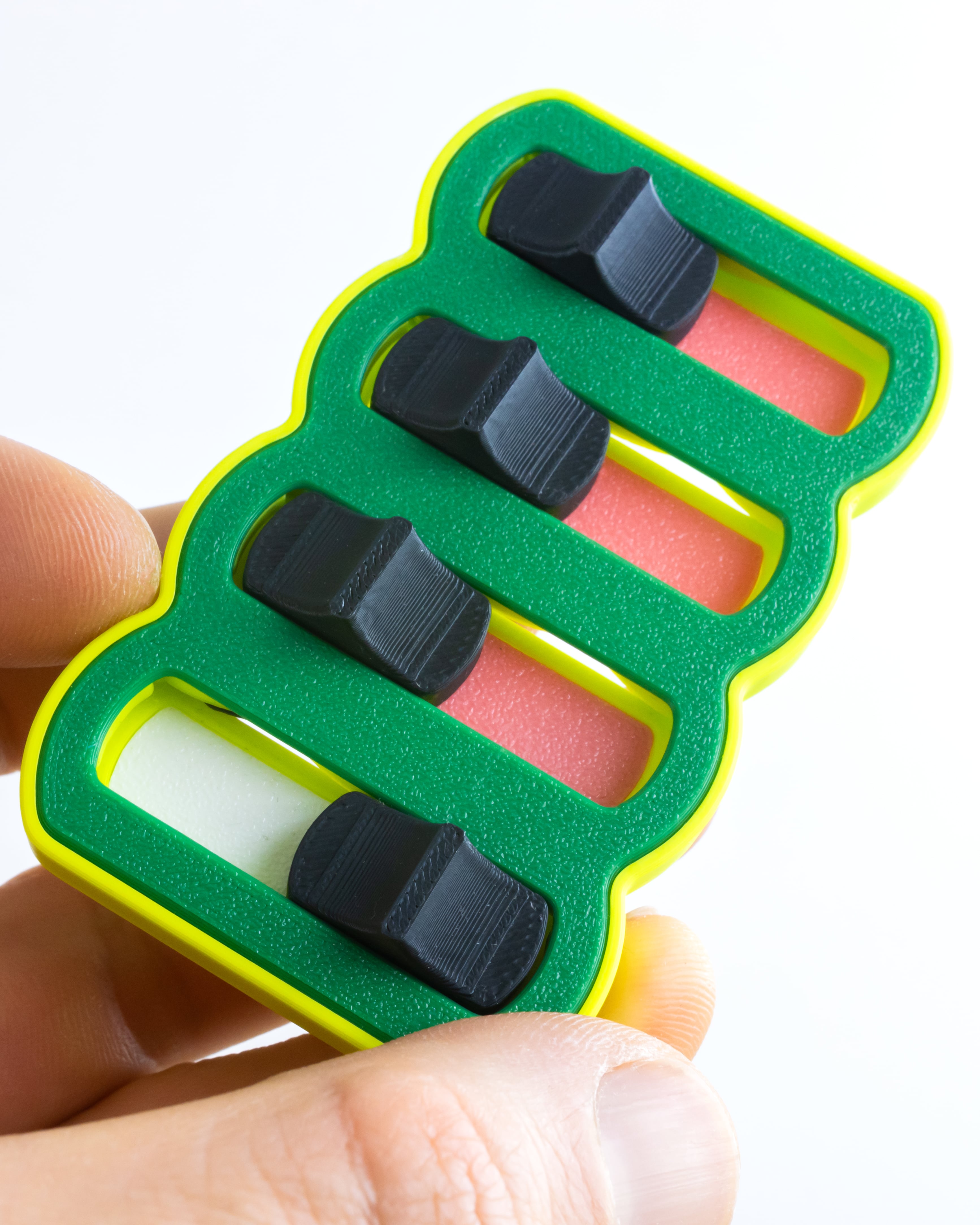

This Quadruple Switch version has an internal mechanism that connects the switches. If you flip the left switch up, all the switches will flip up. Then the switches flip down one by one from left to right. To achieve this, print two 'Switch_Middle' and two 'Switch_Outer' and assemble as shown here.

You can mirror the switches for the reverse effect, or use the 'Switch_Basic' if you just want standalone switches. You can also mix and match for different purposes if you're clever about it!

Printing Guidelines

Check out this short for assembly tips. Adding a tiny bit of oil and then running the print under water really does wonders for smoothness! Especially recommended for the multi-switches.

The download includes standard and 'lite' versions of the spring, case front, and case back. The standard version has a stiffer snap, while the lite version is super easy to flip back and forth. You must use either OG or Lite versions for each of those files for perfect fit. You can also print the outer case with or without the loop for a keychain.

Print the 'ColorTag' twice in different colors to use as an indicator switch.

Use your standard best settings at 0.16mm layer height. 2 shells and 15% infill works well.

• Triple Switch version
• Single Snappy Switch
• Big Snappy Switch
