EZPZ Ziptie // TPU Cable Tie

This model is restricted by licensing terms.

The EZPZ Ziptie is designed to fasten securely while releasing with ease. Designed specifically for printing with TPU so it lasts a lifetime, the head of the EZPZ Ziptie releases simply by squeezing the sides.

This download includes the 10mm wide ziptie at 3 different lengths. It also prints well at half scale for light duty uses. For a larger collection of dozens of widths and lengths, check out the full EZPZ Ziptie Collection.

Download also includes preset 3MF files for Orca/Bambu slicer and Prusa/Qidi slicer. Otherwise, follow the print guidelines below.


Printing Guidelines

  • Print with 95A TPU for best results
  • 0.16mm layer height
  • 3 Shells, 0 top/bottom layers, 100% infill
  • Single perimeter on top and bottom surfaces
  • Arachne perimeter generator
  • Disable 'Extra perimeters if needed', 'Ensure vertical shell thickness', and 'Fill gaps'
  • Set 'Solid infill threshold area' to 0

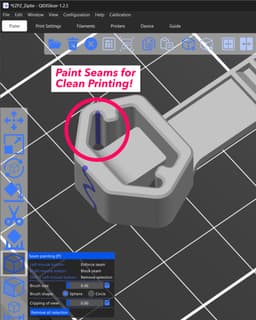

  • I suggest using seam painting to ensure the seam isn't on the 'tooth' that locks the ziptie (see last picture).

Photographed models were printed on the QIDI Q1-Pro 3D Printer using BambuLab 95A HF TPU filament.*

*These affiliate links give me a commission on sales at no additional cost to you. Thanks for supporting Make Anything!
