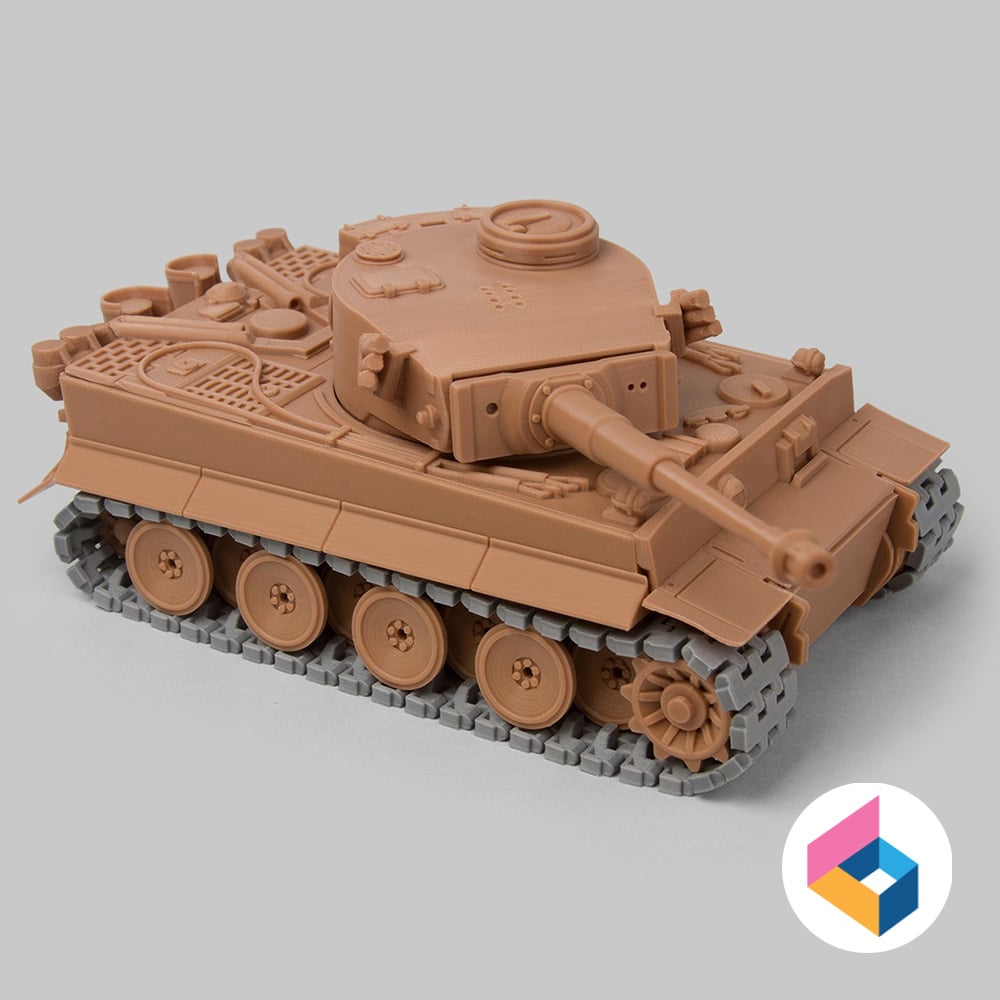

Get commercial license and download newest models cheaply- https://www.patreon.com/goodesign The popularity of the foldable tiger tank late production was great. And there were many requests to produce early production as well. In response to these customer demands, this time, Foldable Tiger tank early production was designed.

Early production differs from Late production as follows.

1. First of all, the turret is a bit simpler, and there are no extra tracks. Instead, there are smoke-making devices.
2. An air filter is installed on the back of the body.
3. Lighting is installed in front of the body.
4. The wheels have a simpler shape.
5. Other details have different shapes.

The process of folding this tank is the same as the late production we made earlier, and is as follows.

Fold the front part first. Since the living hinge is used, fold it carefully and slowly so as not to break it. Insert the side part with wheels on the front part and the top part. Check and fit each protrusion and hole. Insert the rest of the side part. The body has been completed. Connect the two tracks / caterpillars first. Wind the track / caterpillar around the wheel. There is a change in shape, and the non-simple side is the outside of the track / caterpillar. Fit the start and end parts of the track / caterpillar. Put the cannon on the turret. Glue the small parts on the back. ※ If the track is loose, try the following method.

1. If you increase the material flow in all slicers, more material will be discharged and the volume of the part will increase. This effect reduces the gap between the parts so that the tracks do not come loose or fall out.
2. And in case of using additional Cura, use Outer wall inset or Skin overlap percentage option.

https://youtu.be/kddCizsnZGw https://youtu.be/LYcwto1NEAM https://youtu.be/X8jNZoXv8bM

Print out this Foldable Tiger tank early production to complete your Tiger tank collection!

1 : 48 scale When expanded, size = X 134mm, Y 178mm, Z 112mm After folding X 82mm, Y 185mm, Z 62mm
