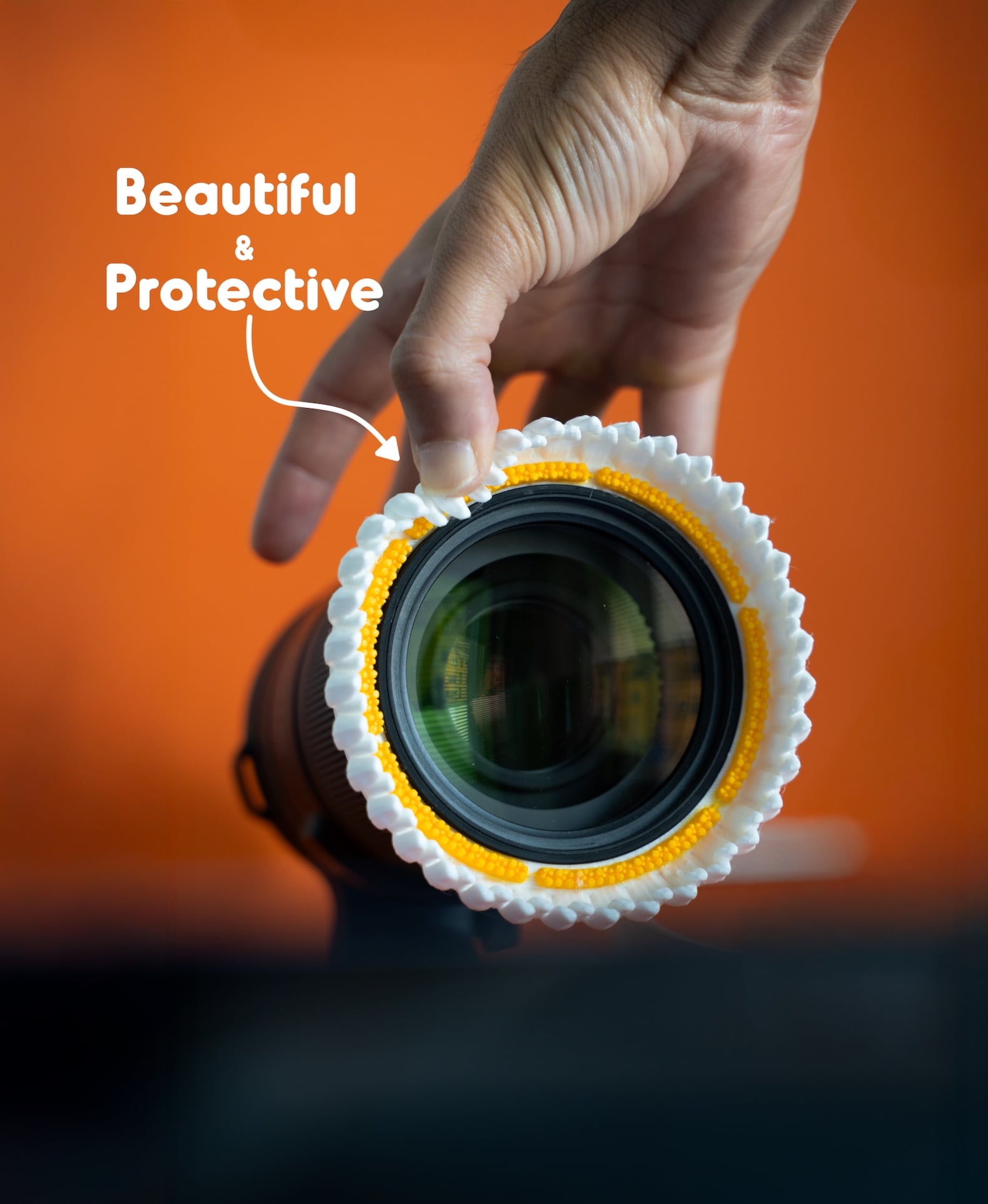

Protective Flower - Lens Accessory

This flower is here to protect your lens and give it a beautiful addition!

Instructions: Print the two parts Flower and Seeds separately with different colors (The Flower has to be TPU), put just a little of glue on the back of the Seeds, and place it on top of the flower. Wipe the extra glue if it comes out. You can decide to print just the flower if you want. Wait for the glue to dry before placing on your lens, the glue can get to your lens otherwise. After drying, you can break the small connections in the seeds to allow the part to stretch. I have placed every part on a separate plate and named the plate, I hope that makes it easy to choose what to print.

Lens sizes: I have provided a couple of sizes in different plates, if you want another size you can scale the STLs provided. The original STLs are for a 67mm lens So if you want a 55 mm for example: (55/67)x100 = 82.09% The provided sizes are: 67, 58, 72, 52, 49, 46 mm . The last 4 sizes were requested by some of you in my previous models. If you don't like the fit of your printed part, scale up or down and print again.

Print settings: I have sliced for TPU using SpicyElephant's “Perfect TPU Print Settings” . I used Bambu TPU 95A HF. The seeds are basic PLA, Fuzzy skin 0.3 mm, Activate Detect Thin Wall to print the connection between the parts. I used Adaptive layer height to have smaller layer height in the important areas. No support is needed.

What should I make next?
