Gear Ball 2.0

3.3K downloads · 2 years ago · Hey, You will need: 2 Big Gear 1 2 Big Gear 2 2 Small Gear 3 2 Small gear 4 1 Heart 8 connectors (t

This model is restricted by licensing terms.

View license.

Description

Hey,

You will need: 2 Big Gear 1 2 Big Gear 2 2 Small Gear 3 2 Small gear 4 1 Heart 8 connectors (try the file named "connector" first)

There is also a File named All that has everything you need on it.

Print settings: I used a brim, but you can get away without one if you like to life risky.

Assembly: Watch this Video: https://youtu.be/btxHkHjIkWg

Troubleshooting: The pins Break: Try scaling them. I did include a couple of different versions. Try them all. You can also try printing them with another spool of filament. Maybe even another Material. As a last resort, scale the Connector in your slicer untill it fits your needs.

Tags:

Community Makes (11)

Printed the Gearball 2.0 with Luminous Melody (Glow in the Dark) PLA and it came out perfectly, no need to print any adjustments. the other 3 i had printed for my niece and nephews needed some adjustments with the clip/connectors and they work wonderfully as well! Thanks for the great creation.

Very nice model.

I used Amolen dual color silk PLA and CC3D gold and silver silk PLA.
Provided connectors didn't work for me. The standard was a bit too tight and too weak. The strong and long version was too lose and hard to place inside the heart. In the end I reverse-engineered my own connectors. They're average in length, more sturdy but not so wide on the outside, so they're easier to install. I also designed a tool to help me insert them. I used silicone lube inside the gears and heart holes and also on the interface surface to improve the spinning.

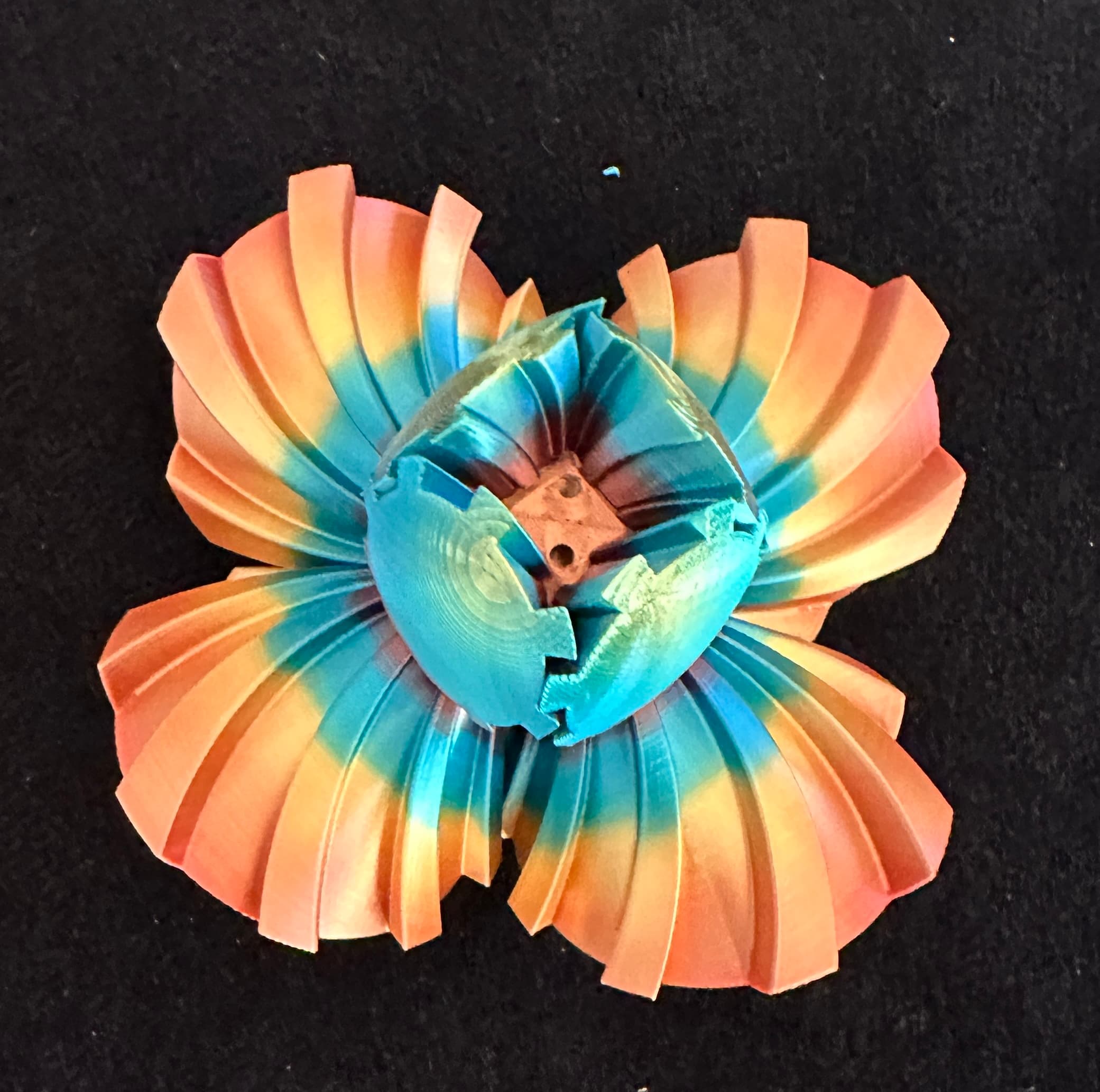

Gear ball 2.0. Eryone silk rainbow. I like this smaller version of the Gear Ball.
