RuvenBals14K followers

Crystal Bloom Lamp for the Ceiling video thumbnail

Crystal Bloom Lamp for the Ceiling 3d model

Crystal Bloom Lamp for the Ceiling

95 downloads · 9 months ago · Hey, this is a big ceiling lamp that's not too difficult to put together. **You need:** 60 Connecto

This model is restricted by licensing terms.

View license.

Description

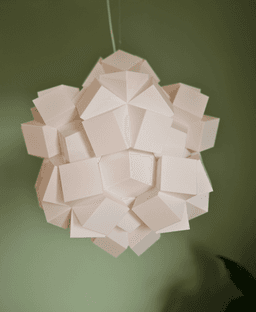

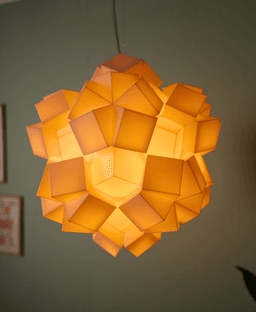

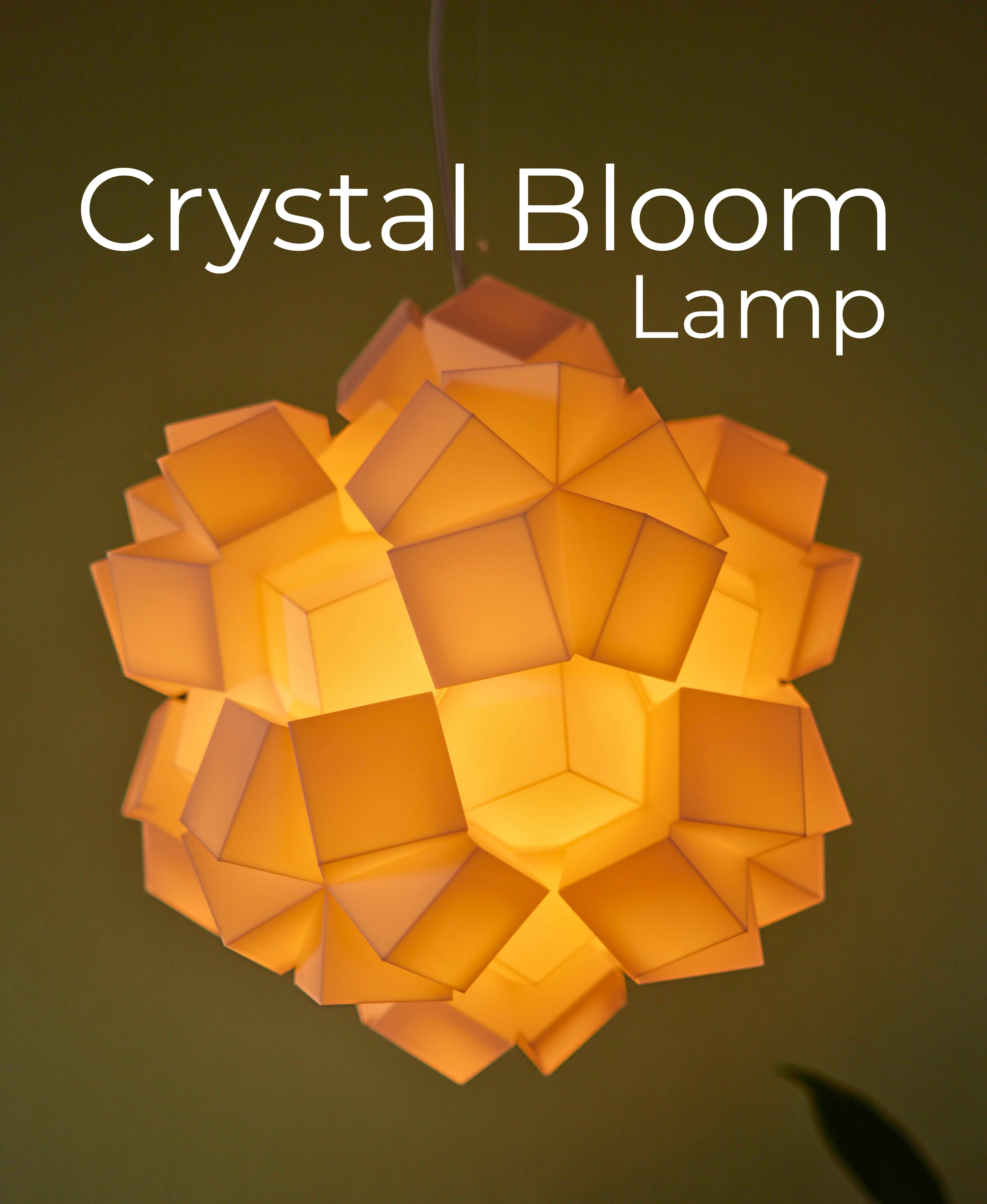

Hey, this is a big ceiling lamp that's not too difficult to put together.

You need: 60 Connectors 15 Triangle Pieces 11 Center Pieces 5 Final Triangle Pieces 1 Top Piece 1 Bottom Socket Holder 1 Top Socket Holder

The 3mf has all parts you need, the All.STL too.

You also need to buy a socket and a bulb. I made a universal Socket holder that fits almost anything. To know what to buy, you can watch this Video.

Print Settings: Standard no supports. But with a brim on all Lamp parts. The Connectors and the Socket Holders don't need a brim.

Assembly: I made an Assembly Video: https://youtu.be/pI9UirMeFPQ

Technical Data: The lamp takes roughly, 2000g of Filament and 68h to print (3 days). I used Sunlu meta PLA. I recommend high speed PLA since it is very transparent and lighter. That means more filament per kg.

Tags:

Community Makes (1)

Printed this in clear prusament PETG and I love it! Each facet lights up differently as you move around, which gives it a crystalline appearance. I created my own pendant light socket adapter and light baffle. These helped to more securely hold the print / eliminate usage of fishing line and eliminate bright light shining upward onto the ceiling.

Community Makes (1)

Discussions

thing2883 months ago

Printed this in clear prusament PETG and I love it! Each facet lights up differently as you move around, which gives it a crystalline appearance. I created my own pendant light socket adapter and light baffle. These helped to more securely hold the print / eliminate usage of fishing line and eliminate bright light shining upward onto the ceiling.
