Watermelon knife block

Subscribe for access starting at $12 USD
Get access to this model and 140+ more
This model is restricted by licensing terms.

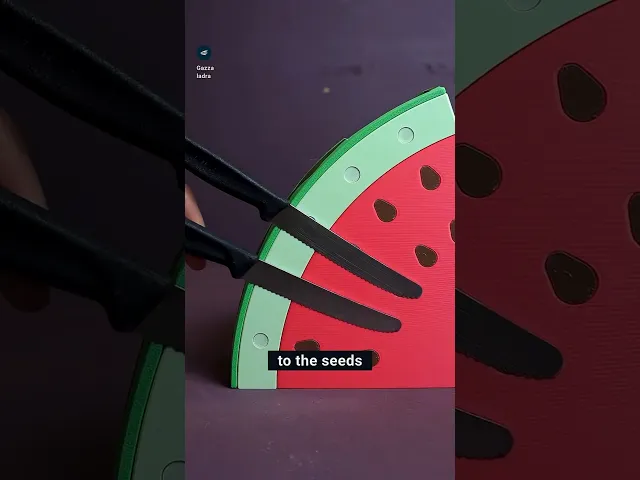

A watermelon where the seeds hide magnets so you can use it as knife block. It has a compartment for bigger utilities like scissors and sharpeners in the back. It has a weight compartment, so it won’t wiggle around. To clean the slots, it has holes at the bottom to rinse it with water.

Instructions

  • Print all parts.
  • Insert something heavy like stones into the compartment.
  • Glue on the light green rind.
  • Glue in 10x2 mm magnet into all holes. Use strong N45 or N52 magnets, so stuff won’t fall off. You need 30 pieces.
  • Glue on the convers.
  • Assemble the back by placing all slices in the right spot and fix them in place with glue. They have an indentation and are unique so you cannot mess up the positioning! Enjoy!

Size assembled: 200 x 80 x 200 mm

Print settings Required build volume: 200 x 200 x 200 mm Material usage: 530 g

Material: PLA Print direction: files are rotated correctly Support: none Nozzle size: 0,4 mm Line width: 0,4 mm Layer height 0,2 mm Infill: 15% Build plate adhesion type: none
