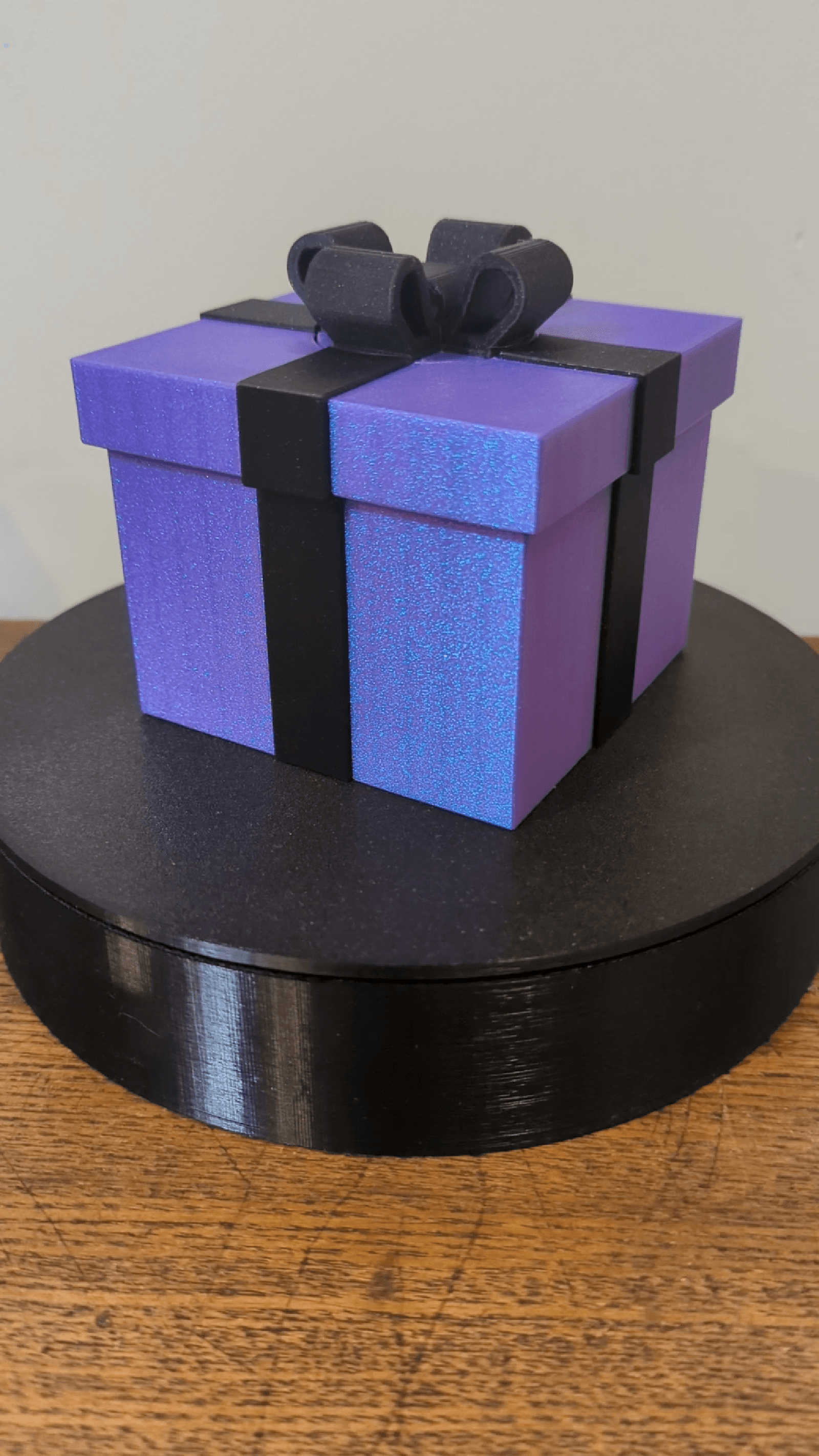

Gift Box #17

This is my fourth season making these gift boxes. Each year I design five different versions. They all may look the same from the outside but each one has a different secret way of opening.

This box is a mashup between box #1 and #12. When you turn the bow on this box it rotates a gear pinion which moves in four gear racks retracting catches allowing the top of the box to be removed. A torsion spring in the center keeps the latches closed.

Printing Its roughly 100mm x 100m x 80mm tall. The top prints in place as one part, none of the parts require supports, designed for a .4mm nozzle. The bow and ribbons for the top are printed separately and are glued on. I used Starbond Medium CA(aff) glue. I printed all the parts in the orientation the stl’s are provided in. Use helper discs or a bring to them to keep the ribbons stable during printing. I printed everything at .2 layer heights but the box could definitely be printed at a larger layer height without issue.

Too much friction? Try PTFE Lubricate Spray(aff). This stuff is amazing and just a little bit will majorly help to smooth the motion. If you don’t already own as set of these clamps(aff.) you should pick them up, they really help with gluing the ribbons on.

Thanks to Jamg HE for being the filament sponsor by providing their PLA+ for this years gift boxes. I used their green, blue and white for this box. You can get an additional 10% off with coupon code: ICEDC0611 using this link. Its a good deal for PLA+ when multiple spools are purchased.

Printed on the Muldex rep-rap IDEX printer.

Other Gift Boxes You can find ALL the other gift boxes in the Puzzle Present Collection.
